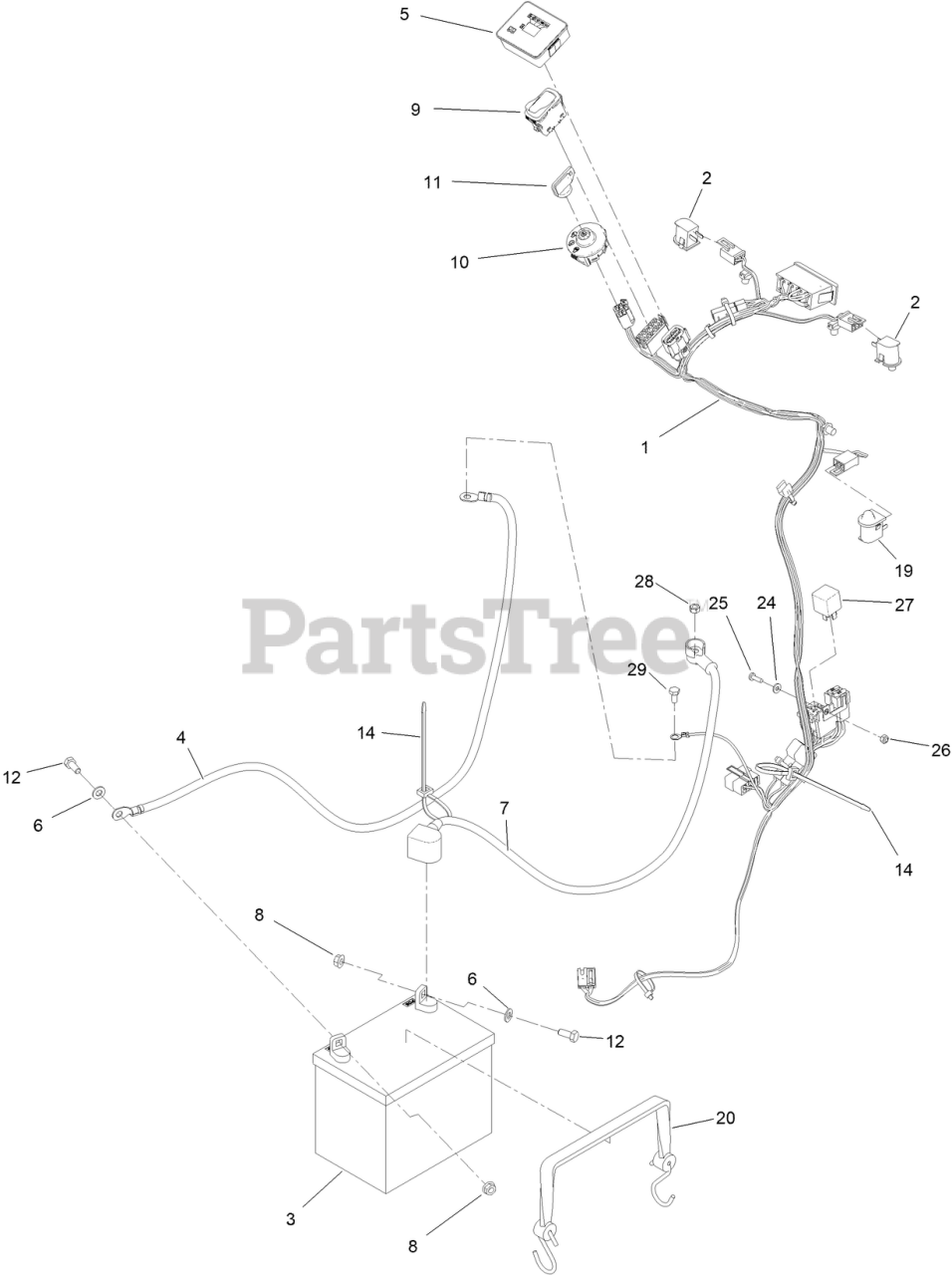

72506 - Toro 52" GrandStand HDX Stand-On Mower (SN: 400000000 - 414499999) Electrical Assembly Parts Diagram

52" GrandStand HDX Stand-On Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 145-5228

HARNESS-WIRE, GRANDSTAND

$385.99

$

In Stock, only 1 left!

0

2

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

3

Toro 104-8162

BATTERY-DRY

$

$

Not available

4

Toro 147-4797

BATTERY-CABLE, BK ASM

$40.99

$

Usually ships in 3-6 days

0

5

Toro 140-1884

MODULE-METER, HOUR

$166.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 147-4794

BATTERY-CABLE, RD ASM

$35.99

$

Usually ships in 3-6 days

0

8

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 139-6367

SWITCH-ROCKER, (ON)-ON-OFF

$38.99

$

In Stock, Qty 11

0

10

Toro 137-4101

SWITCH-IGNITION

$37.99

$

In Stock, Qty 15

0

11

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 133-4654

SWITCH-PLUNGER

$14.99

$

In Stock, only 2 left!

0

20

Toro 139-2381

STRAP-RUBBER

$7.49

$

In Stock, only 2 left!

0

24

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 18

0

28

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

29

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
