72510 - Toro 60" GrandStand HDX Stand-On Mower (SN: 414500000 - 416799999) Engine Assembly Parts Diagram

60" GrandStand HDX Stand-On Mower

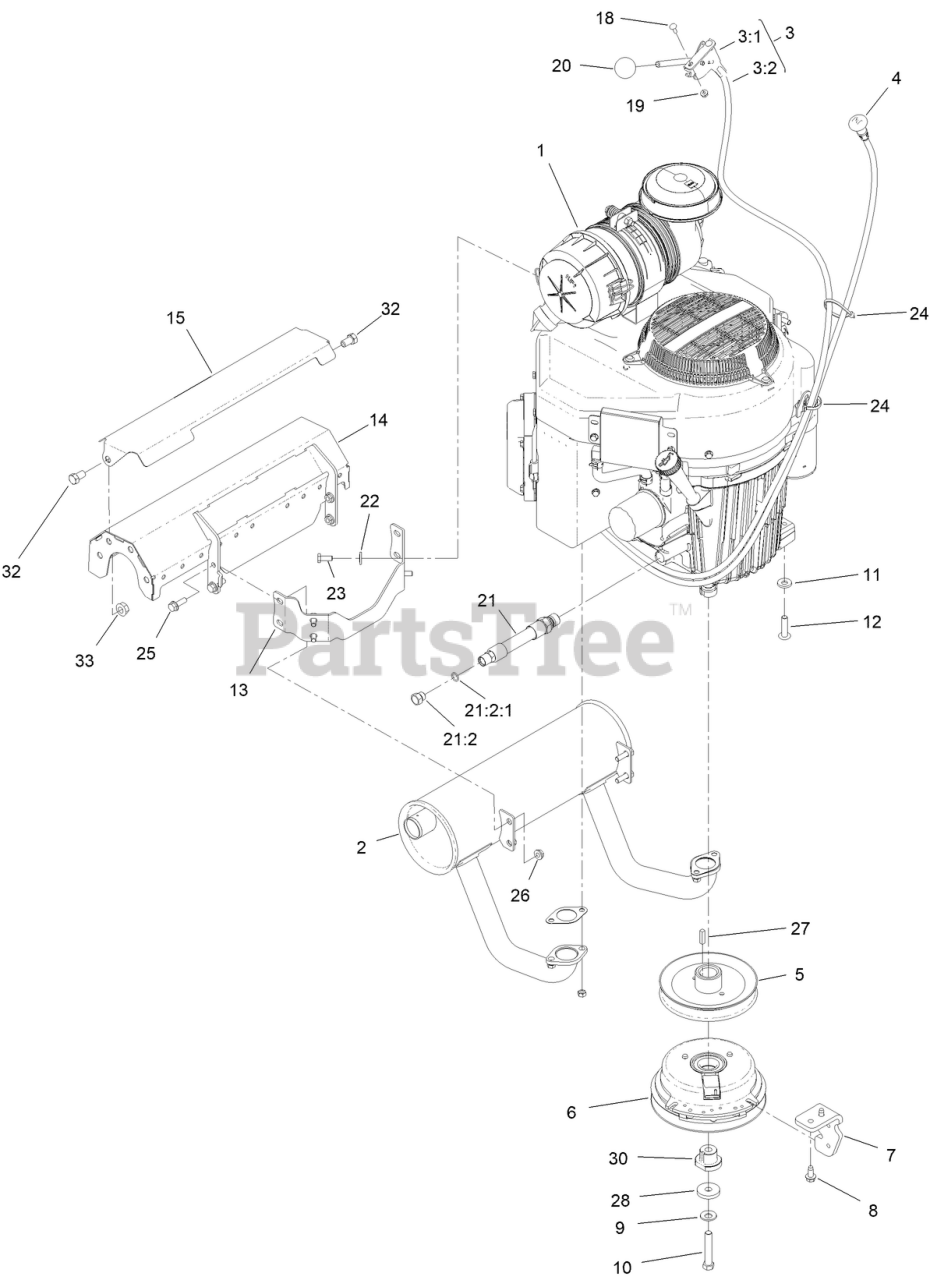

Engine Assembly Parts Diagram

  • Title

1

ENGINE KAWASAKI FX921V

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1

ENGINE KAWASAKI FX921V

Note: Not serviced separately

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Not illustrated

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

1:2

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: Not illustrated

$

$

Not available

1:2

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: Not serviced separately

$

$

Not available

1:2

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: Not illustrated

$

$

Not available

1:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: Not serviced separately

$

$

Not available

2

Toro 145-6192

MUFFLER, KAWI FX921

$254.99

$

Usually ships in 0 days

0

3

Toro 145-1598

THROTTLE ASM

$61.99

$

Usually ships in 0 days

0

3:1

Toro 145-6187

LEVER-CONTROL

$

$

Currently unavailable

3:2

Toro 145-5189

CABLE-THROTTLE

$

$

Currently unavailable

4

Toro 145-5188

CABLE-CHOKE

$38.99

$

Usually ships in 0 days

0

5

Toro 145-6115

PULLEY

$36.99

$

Usually ships in 0 days

0

6

Toro 139-7910

CLUTCH-200CMS

$633.99

$

In Stock, Qty 6

0

7

Toro 147-0345-03

BRACKET, CLUTCH STOP

$16.99

$

Usually ships in 0 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

10

Toro 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Toro 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

13

Toro 147-4556

BRACKET-MUFFLER

$

$

Currently unavailable

14

Toro 147-4831

MUFFLER GUARD ASM

$284.99

$

Usually ships in 0 days

0

15

Toro 161-1305-03

SHIELD-HEAT

$

$

Currently unavailable

18

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

19

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

20

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 4 left!

0

21

Toro 133-4659

HOSE ASM

$41.99

$

Usually ships in 3-6 days

0

21:2

Toro 353-508

PLUG-HH

$8.99

$

In Stock, only 2 left!

0

21:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

22

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

23

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

25

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

28

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 20+

0

30

Toro 147-4838

SPACER, D-DRIVE

$5.99

$

Usually ships in 3-6 days

0

32

Toro 324-2

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

33

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0
