72517 - Toro 72" GrandStand HDX Stand-On Mower (SN: 417000000 - 999999999) Ground Drive Assembly Parts Diagram

72" GrandStand HDX Stand-On Mower

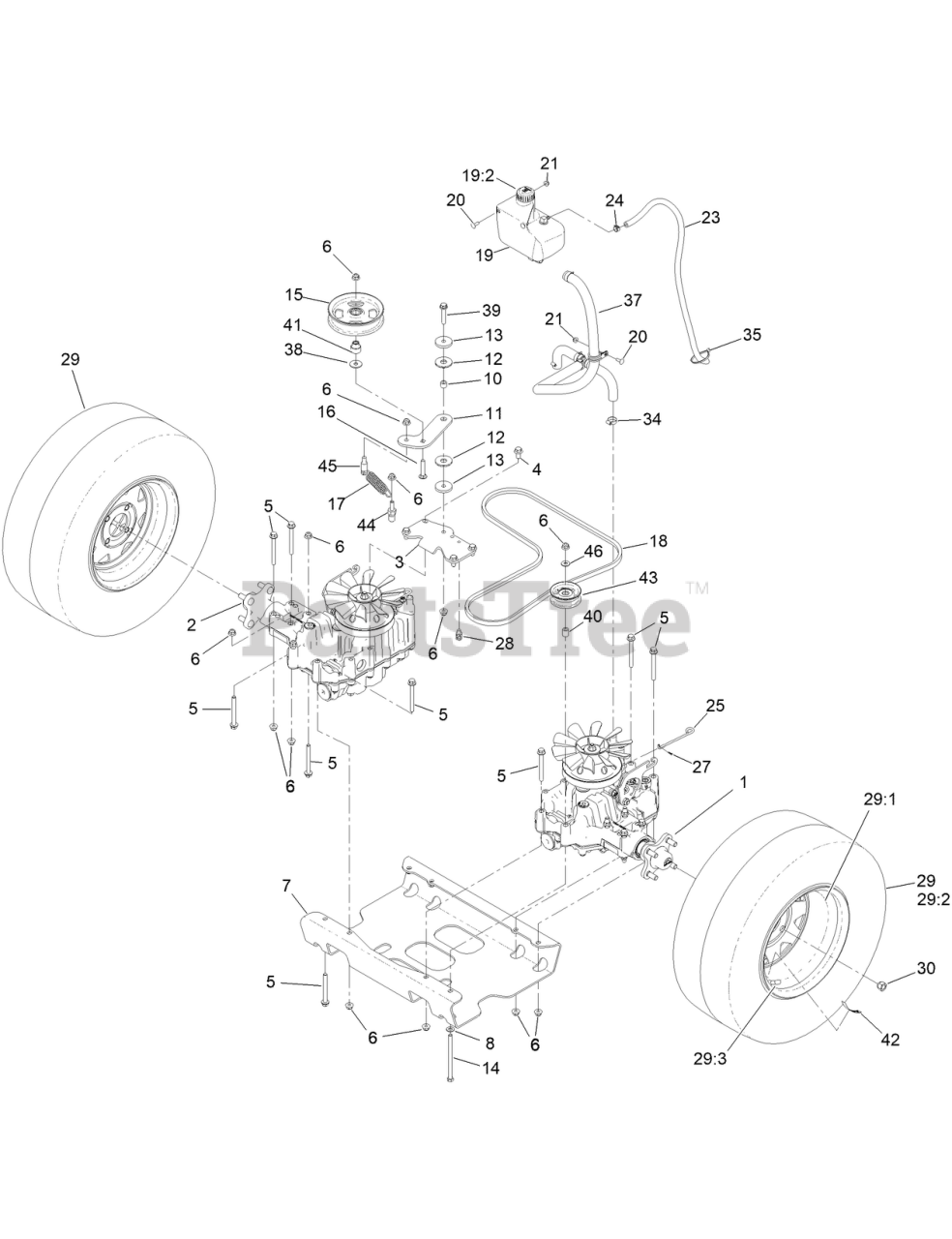

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 161-1323

LH TRANSMISSON (TZT13SY)

$2910.99

$

Usually ships in 0 days

0

2

Toro 161-9807

RH TRANSMISSON (TZT13SX)

$2910.99

$

Usually ships in 0 days

0

3

Toro 147-4756-03

PLATE, SUPPORT, TRANSAXLE

$

$

Currently unavailable

4

Toro 161-1312

SCREW-BSHS

$2.49

$

Usually ships in 0 days

0

5

Toro 116-4701

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 147-4636-03

PLATE-HYDRO

$284.99

$

Usually ships in 0 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 7

0

11

Toro 147-4757

PLATE-ARM, IDLER

$13.99

$

Usually ships in 0 days

0

12

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

13

Toro 110-9981

WASHER-PLAIN

$15.99

$

In Stock, Qty 20+

0

14

Toro 323-25

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

15

Toro 136-5405

PULLEY-IDLER,FLAT
(Superseded to 136-5405)

$51.99

$

In Stock, Qty 9

0

16

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17

Toro 138-1104

SPRING-EXTENSION

$9.49

$

In Stock, Qty 5

0

18

Toro 145-5186

BELT-V

$42.99

$

Usually ships in 0 days

0

19

Toro 132-1135

TANK-HYD

$142.99

$

Usually ships in 3-6 days

0

19:2

Toro 133-8677

CAP-VENTED

$18.99

$

In Stock, Qty 11

0

19:5

Toro 140-9463

STRAINER-NECK, REMOVABLE

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0

20

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 109-0309

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

24

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

25

Toro 145-6176

ROD-BYPASS

$12.99

$

Usually ships in 0 days

0

27

Toro 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

28

Toro 161-1316

CLIP, FIR TREE

$

$

Currently unavailable

29

Toro 144-6607

WHEEL AND TIRE ASM

$359.99

$

Usually ships in 3-6 days

0

29:1

Toro 144-6606

WHEEL

$231.99

$

Usually ships in 3-6 days

0

29:2

Toro 140-7975

TIRE

$249.99

$

Usually ships in 3-6 days

0

29:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.49

$

In Stock, only 3 left!

0

30

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

34

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

37

HYD HOSE ASM

Note: Not serviced separately

$

$

Not available

38

Toro 93-8806

WASHER-HARDENED

$2.49

$

In Stock, only 1 left!

0

39

Toro 108-3742

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

40

Toro 115-1451

SPACER-WHEEL

$14.99

$

Usually ships in 3-6 days

0

41

Toro 138-7227

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

42

Toro 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.99

$

In Stock, Qty 11

0

43

Toro 130-8362

PULLEY-IDLER, FLAT

$39.99

$

In Stock, Qty 7

0

44

Toro 132-4724

PIN-ANCHOR, SPRING

$5.49

$

In Stock, Qty 19

0

45

Toro 110-3841

ANCHOR-SPRING

$155.99

$

Usually ships in 3-6 days

0

46

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0
