7252 (54AG722-100) - Cub Cadet Compact Tractor Carburetor Parts Diagram

Compact Tractor

Carburetor Parts Diagram

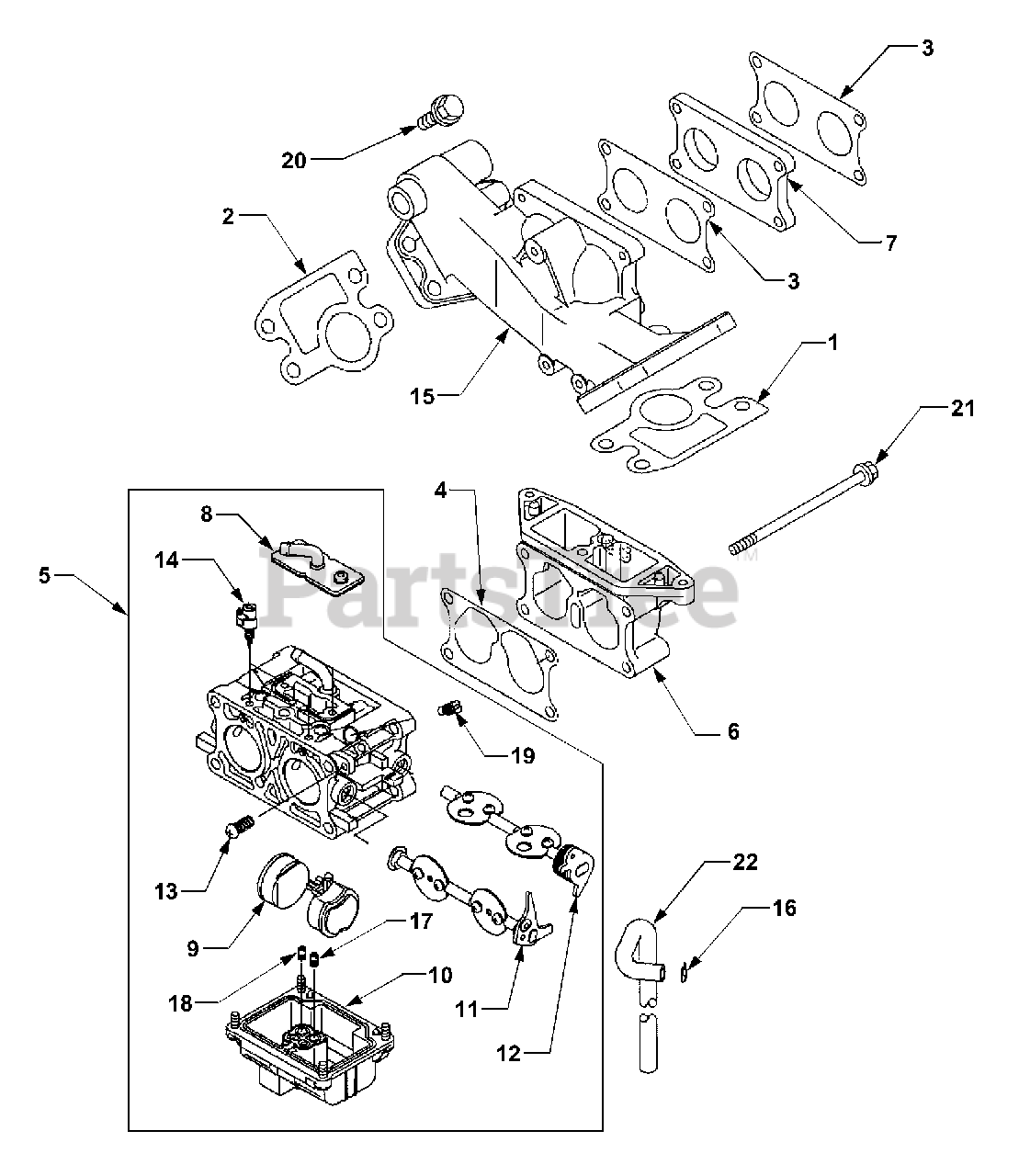

  • Title

1

Cub Cadet KM-11060-2468

Gasket, Intake Manifold

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11060-2469

Gasket, Intake Manifold

$5.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11060-2471

Gasket, Intake Pipe

$5.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11061-2075

Gasket

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-15003-2786

Carburetor Assembly
(Superseded to KM-15003-2978)

$

$

Not available

6

Cub Cadet KM-16060-2194

Pipe, Intake

$47.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-16073-2206

Insulator

$15.99

$

In Stock, only 2 left!

0

8

Cub Cadet KM-16146-2227

Cover Assembly

$119.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-16183-2006

Float Assembly

$50.99

$

In Stock, Qty 6

0

10

Cub Cadet KM-16184-2007

Chamber, Float

$225.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-16185-2041

Valve Assembly, Throttle

$58.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-16186-2036

Valve Assembly, Choke

$55.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-23013-2059

Screw Assembly

$

$

Not available

14

Cub Cadet KM-23013-2063

Screw Assembly

$

$

Not available

15

Cub Cadet KM-59076-2065

Manifold, Intake

$207.99

$

In Stock, only 1 left!

0

16

Cub Cadet KM-92037-1610

Clamp

$2.49

$

In Stock, only 1 left!

0

17

Cub Cadet KM-92063-2353

Jet, Main, #110

$11.99

$

In Stock, only 1 left!

0

Cub Cadet KM-92063-2410

Jet, Main, #105

$11.99

$

In Stock, only 1 left!

0

Cub Cadet KM-92063-2420

Jet, Main, #107.5

$11.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92063-2370

Jet, Main, #111.3

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-92063-2380

Jet, Main, #106.3

$11.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-92063-2421

Jet, Main, #108.8

$

$

Not available

19

Cub Cadet KM-92064-2106

Jet, Pilot, #45

$

$

Not available

20

Cub Cadet KM-130G0825

Bolt, Flanged

$

$

Not available

21

Cub Cadet KM-130T06110

Bolt, Flanged
(Superseded to KM-130CA06110)

$2.99

$

In Stock, Qty 19

0

22

Cub Cadet KM-701Q061000

Tube, PVC

$5.99

$

In Stock, Qty 8

0
