72520 - Toro 60" GrandStand Stand-On Mower (SN: 400000000 - 416227599) Engine Assembly Parts Diagram

60" GrandStand Stand-On Mower

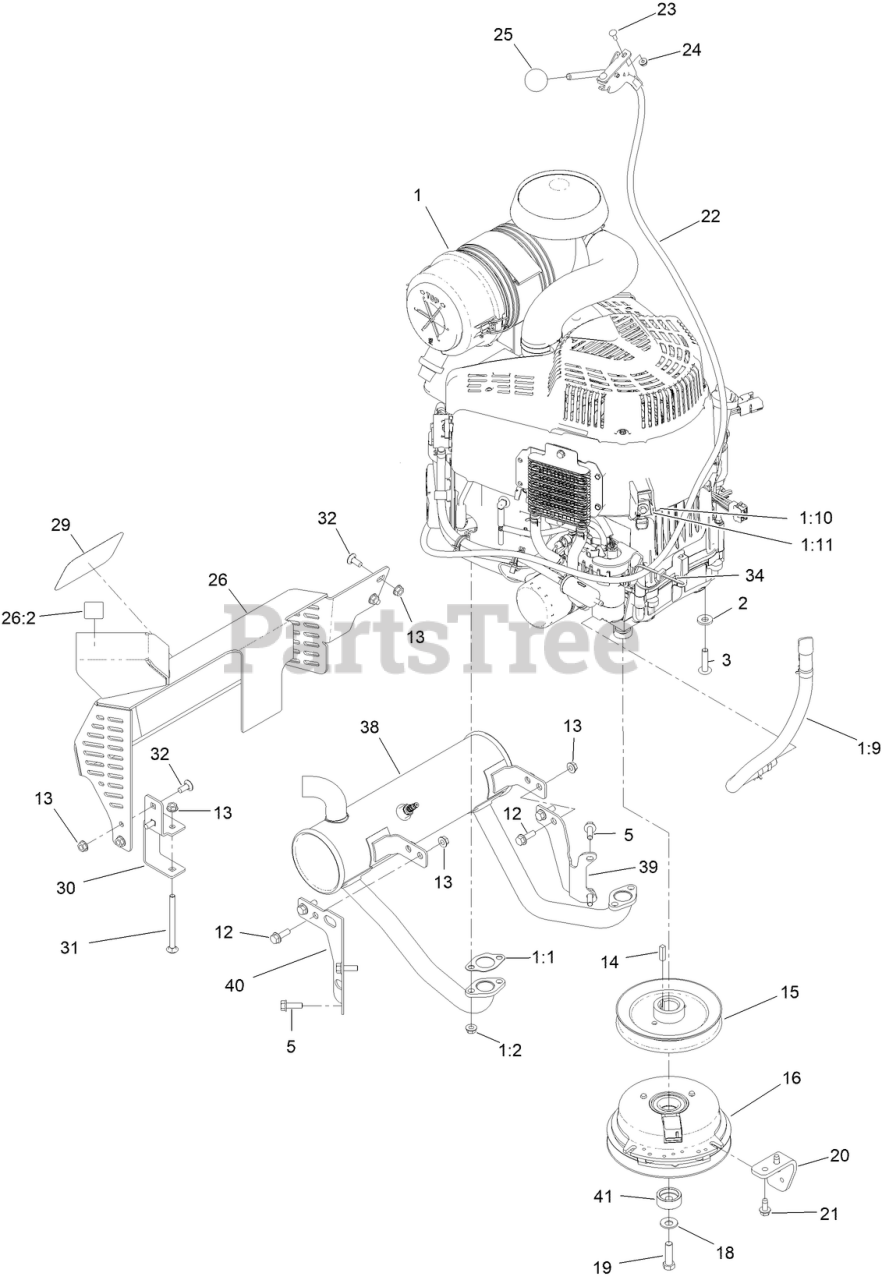

Engine Assembly Parts Diagram

  • Title

1

VANGUARD 810CC BASCO ENGINE

Note: Not serviced separately

$

$

Not available

1:1

Toro 142-9194

GASKET, EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:2

Toro 147-3472

EXHAUST NUTS

$

$

Currently unavailable

1:3

Toro 147-3473

SPARK PLUG

Note: Not illustrated

$

$

Currently unavailable

1:4

Toro 142-7451

FILTER-FUEL

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

1:9

Toro 147-3475

OIL DRAIN HOSE

$

$

Currently unavailable

1:10

Toro 147-3476

MOUNTING CLIP

$

$

Currently unavailable

1:11

Toro 147-3477

MOUNTING BOLT

$

$

Currently unavailable

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

5

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

12

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

13

Toro 32128-25

NUT-HF

$3.99

$

In Stock, only 3 left!

0

14

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

15

Toro 120-8498

PULLEY

$92.99

$

In Stock, only 3 left!

0

16

Toro 139-7910

CLUTCH-200CMS

$633.99

$

In Stock, Qty 6

0

18

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

19

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 9

0

20

Toro 131-3586-03

STOP-CLUTCH

$21.99

$

In Stock, Qty 6

0

21

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 145-6186

THROTTLE ASM

$68.99

$

Usually ships in 0 days

0

23

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

25

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 4 left!

0

26

Toro 131-3550

MUFFLER GUARD ASM

$293.99

$

Usually ships in 3-6 days

0

26:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

29

Toro 94-2579

DECAL

$13.99

$

Usually ships in 3-6 days

0

30

Toro 131-3530-03

BRACKET-MOUNTING, GUARD

$21.99

$

Usually ships in 3-6 days

0

31

Toro 106-9758

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

32

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

34

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

38

Toro 145-3562

GS MUFFLER

$236.99

$

Usually ships in 0 days

0

39

Toro 145-3564

BRACKET-MUFFLER, REAR

$

$

Currently unavailable

40

Toro 145-3565

BRACKET-MUFFLER, FRONT

$14.99

$

Usually ships in 0 days

0

41

Toro 147-0248

SPACER-CLUTCH

$21.99

$

Usually ships in 0 days

0
