72542 TE - Toro 122cm GrandStand Stand-On Mower (SN: 413000000 - 414199999) Frame Assembly Parts Diagram

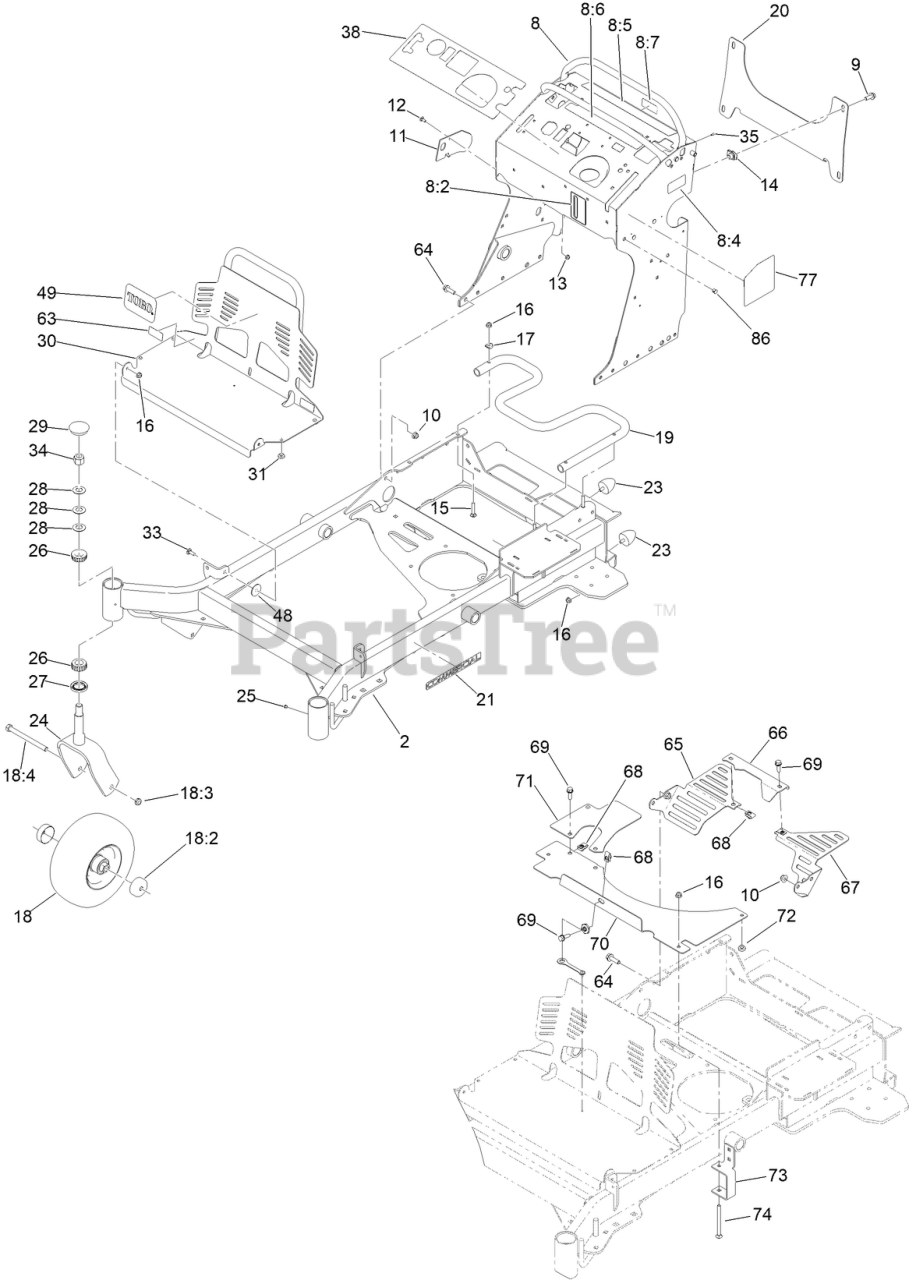

122cm GrandStand Stand-On Mower

Frame Assembly Parts Diagram

  • Title

2

Toro 131-7423-01

FRAME

$1759.99

$

Usually ships in 3-6 days

0

8

Toro 140-4284

TOWER ASM

$

$

Currently unavailable

8:2

Toro 131-3524

DECAL-LEVEL, OIL

$

$

Not available

8:4

Toro 116-8775

DECAL-FILL, FUEL

$9.49

$

Usually ships in 3-6 days

0

8:5

Toro 139-5556

DECAL-WARNING

$44.99

$

Usually ships in 3-6 days

0

8:6

Toro 131-3526

DECAL-CONTROLS

$12.99

$

Usually ships in 3-6 days

0

8:7

Toro 131-3528

DECAL-FUSE

$

$

Not available

9

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 131-7455

PLATE-STRIKER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 107-3844

WASHER

$1.99

$

In Stock, Qty 20+

0

18

Toro 140-5485

MF WHEEL TIRE BEARING ASM

$222.99

$

Usually ships in 3-6 days

0

18:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

18:3

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

18:4

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

19

Toro 132-5161-01

TUBE-MOUNT, FUEL TANK

$72.99

$

Usually ships in 3-6 days

0

20

Toro 132-1145-03

BRACKET-CROSS

$53.99

$

Usually ships in 3-6 days

0

21

Toro 117-3591

DECAL-COMMERCIAL

$17.99

$

Usually ships in 3-6 days

0

23

Toro 114-1926

BUMPER-RUBBER

$29.99

$

In Stock, Qty 20+

0

24

Toro 121-7988-01

FORK-CASTER
(Superseded to 147-6343-01)

$189.99

$

Usually ships in 3-6 days

0

25

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

26

Toro 1-543509

BEARING-ROLLER, TAPERED

$14.99

$

In Stock, Qty 20+

0

27

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

28

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

29

Toro 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

30

Toro 132-5150-03

GUARD-ENGINE
(Superseded to 161-3586)

$289.99

$

Usually ships in 0 days

0

31

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

33

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

34

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0

35

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

38

Toro 140-4258

DECAL-PANEL, CONTROL

$41.99

$

Usually ships in 3-6 days

0

48

Toro 107-3002

WASHER-NYLON

$3.49

$

In Stock, only 4 left!

0

49

Toro 105-8278

DECAL

$12.99

$

In Stock, only 1 left!

0

63

Toro 133-4641

DECAL-WARNING, NO RIDERS

$2.99

$

Usually ships in 3-6 days

0

64

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

65

Toro 133-4619-01

GUARD-FAN, RH (CE)

$

$

Currently unavailable

66

Toro 133-4618-01

GUARD-FAN, CENTER (CE)

$

$

Currently unavailable

67

Toro 133-4622-01

GUARD-FAN, LH (CE)

$

$

Currently unavailable

68

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

0

69

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

70

Toro 134-3810-03

GUARD-EXTENSION

$81.99

$

Usually ships in 3-6 days

0

71

Toro 133-4649-03

GUARD-BELT, CE

$

$

Currently unavailable

72

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

73

Toro 131-3530-03

BRACKET-MOUNTING, GUARD

$21.99

$

Usually ships in 3-6 days

0

74

Toro 106-9758

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

77

Toro 139-5571

DECAL - SERVICE RD, CE

$41.99

$

Usually ships in 3-6 days

0

86

Toro 145-3595

DOME PANEL PLUG

$0.99

$

Usually ships in 3-6 days
