725r E (41BD2REC034) - Ryobi String Trimmer Edger Parts Parts Diagram

String Trimmer

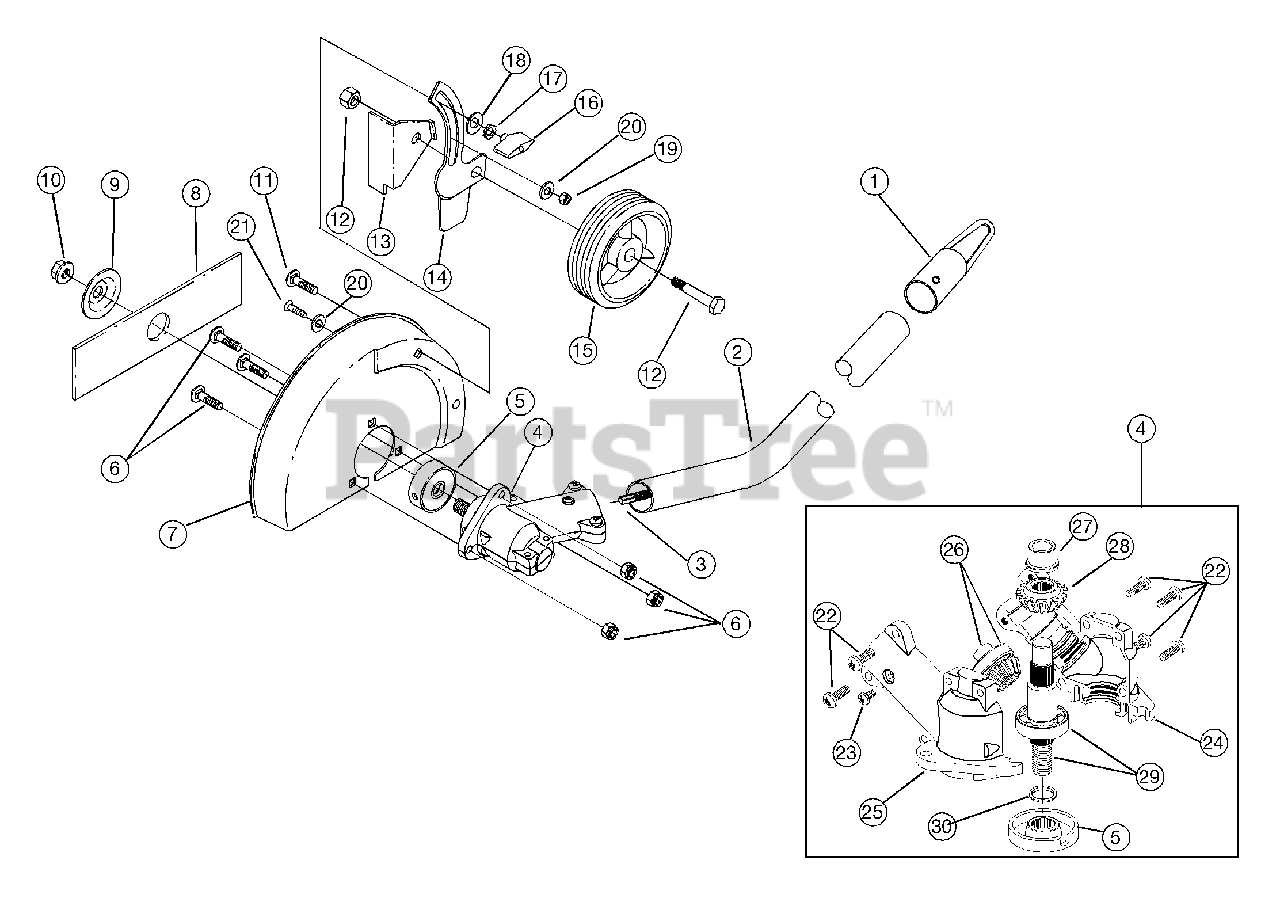

Edger Parts Parts Diagram

  • Title

1

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.49

$

In Stock, Qty 16

0

2

MTD 791-180915

Drive Shaft Housing Assembly

$

$

Not available

3

MTD 791-181570

Drive Shaft Assembly

$57.99

$

Usually ships in 3-6 days

0

4

MTD 791-182193

Gearbox Assembly

Note: (includes 5, 22-30)

$92.99

$

In Stock, only 2 left!

0

5

MTD 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

6

MTD 791-182200

Shield Mount Screw Assembly

$6.49

$

In Stock, only 2 left!

0

7

MTD 791-182256

Blade Shield

$

$

Not available

8

MTD 791-613223B

Edger Blade

$12.99

$

Usually ships in 3-6 days

0

9

MTD 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

10

MTD 791-147491

Lock Nut
(Superseded to 712-04105)

$9.99

$

In Stock, only 3 left!

0

11

MTD 791-182213

Shoulder Bolt
(Superseded to 710-0703)

$3.99

$

In Stock, Qty 20+

0

12

MTD 791-181591

Wheel Mounting Hardware

$

$

Not available

13

MTD 791-181592

Deflector

$

$

Not available

14

MTD 791-181593

Guide Bracket

$

$

Not available

15

MTD 791-181242

Wheel

$

$

Not available

16

MTD 791-182214

Adjustment Knob

$

$

Not available

17

MTD 791-182215

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

18

MTD 791-182216

Washer

$

$

Not available

19

MTD 791-182237

Locknut

$

$

Not available

20

MTD 791-182236

Washer

$5.99

$

Usually ships in 3-6 days

0

21

MTD 791-181858

Screw

$

$

Not available

22

MTD 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 15

0

23

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

MTD 791-613226

Locking Rod

Note: Not Shown

$13.99

$

Usually ships in 3-6 days

0

MTD 791-180014B

Blade Retainer Kit

Note: (includes 9 & 10)

$12.99

$

In Stock, only 1 left!

0

24

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 4

$

$

Not available

25

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 4

$

$

Not available

26

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 4

$29.99

$

Usually ships in 3-6 days

0

27

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 4

$

$

Not available

28

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 4

$

$

Not available

29

MTD 791-182197

Output Shaft Assembly

Note: (includes 27 & 28); 2 Piece Gearbox Assembly Parts - Item 4

$

$

Not available

30

MTD 753-1159

O-Ring

Note: 2 Piece Gearbox Assembly Parts - Item 4

$

$

Not available
