726 E (1695444) - John Deere 26" Snow Thrower (2008) Auger Housing Parts Diagram

26" Snow Thrower

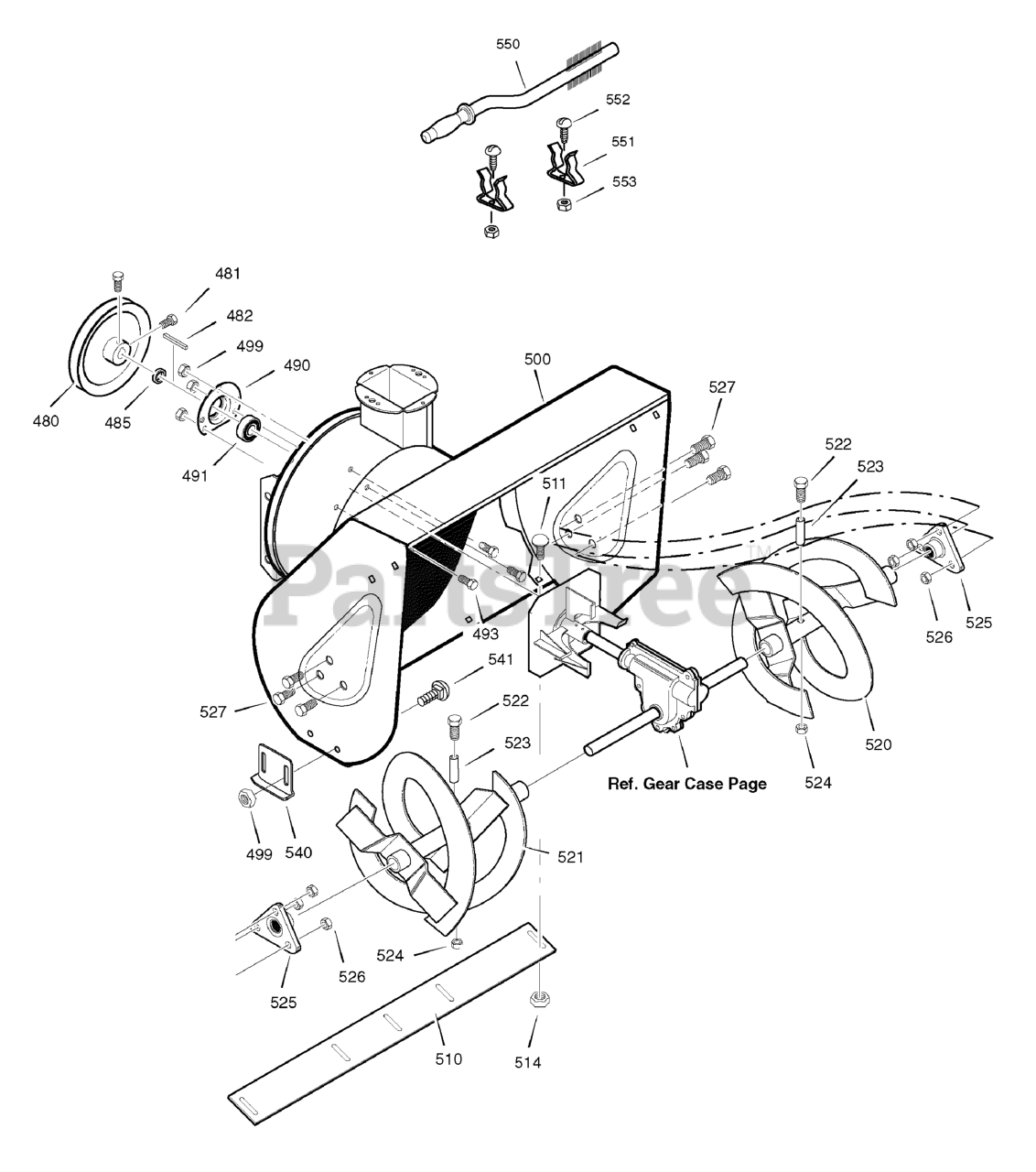

Auger Housing Parts Diagram

  • Title
480

Murray 762146MA

PULLEY, 4L

$70.99

$

Usually ships in 2-12 days

0

481

Murray 577400MA

SCREW, 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, Square, 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

485

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, only 2 left!

0

490

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 02X101MA

BOLT, Hex, 5/16 - 18 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 9

0

499

Murray 710026MA

NUT, Hex Whiz Lock Flange, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1741672FYP

HOUSING ASSEMBLY
(Superseded to 1687523YP)

$467.99

$

Usually ships in 2-12 days

0

510

Murray 581399E701MA

BLADE, Scraper

$

$

Not available

511

Murray 001X45MA

BOLT, 1/4 - 20 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

514

Murray 780285MA

NUT, 1/4 - 20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

520

Murray 1741678BCYP

AUGER ASSEMBLY, L.H.
(Superseded to 1741678BOYP)

$329.99

$

Usually ships in 2-12 days

0

521

Murray 1741677BCYP

AUGER ASSEMBLY, R.H.
(Superseded to 1741677BOYP)

$283.99

$

Usually ships in 2-12 days

0

522

Murray 9524MA

SCREW, 1/4 - 20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

523

Murray 3943MA

SPACER, Sleeve
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

524

Murray 73826MA

NUT, 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING, Flange

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16 - 18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

540

Murray 1502079E701MA

SKID, Height Adjust

$

$

Not available

541

Murray 7090799SM

BOLT, Carriage, 5/16 - 18 x 1/2
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

550

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 2 left!

0

551

Murray 1736620YP

CLIP, Retainer

$6.49

$

In Stock, only 1 left!

0

552

Murray 1960569SM

SCREW, Truss-Head, Torx, #10
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

--

Murray 1501216MA

KIT, Shear Bolt

Note: (Not Illustrated)

$4.99

$

In Stock, Qty 20+

0

--

Murray 309235MA

FASTENER, Ratchet

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0
