726 E (1695444) - John Deere 26" Snow Thrower (2008) Discharge Chute Parts Diagram

26" Snow Thrower

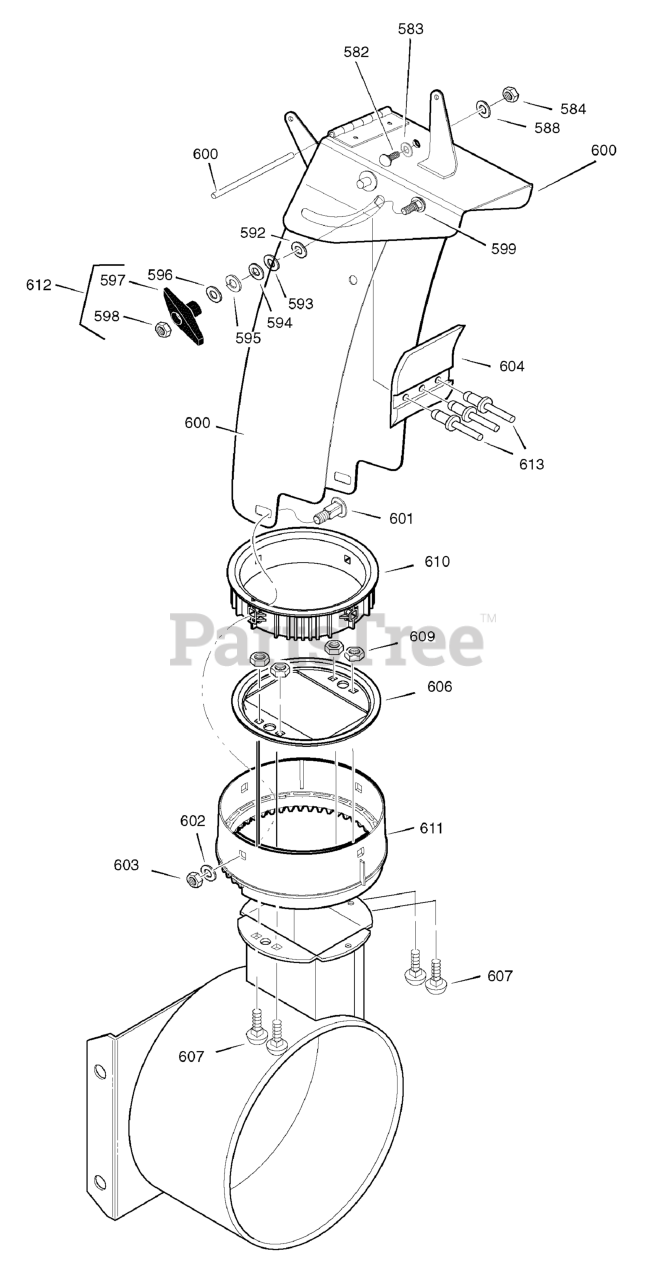

Discharge Chute Parts Diagram

  • Title

582

Murray 340720MA

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

583

Murray 12021MA

WASHER, Plastic

$3.99

$

In Stock, only 2 left!

0

584

Murray 71038MA

NUT, Hex Nylock, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

588

Murray 6711MA

WASHER, Plastic

$3.99

$

Usually ships in 2-12 days

0

592

Murray 12021MA

WASHER, Plastic

$3.99

$

In Stock, only 2 left!

0

593

Murray 6711MA

WASHER, Plastic

$3.99

$

Usually ships in 2-12 days

0

594

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

595

Murray 71060MA

WASHER, Split
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

596

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

597

Murray 1501260MA

KNOB

$8.49

$

In Stock, Qty 11

0

598

Murray 15X144MA

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 9

0

599

Murray 002X97MA

BOLT, 5/16 - 18 x 1
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

600

Murray 1502118E511MA

CHUTE ASSEMBLY

$109.99

$

Usually ships in 2-12 days

0

601

Murray 2X100MA

BOLT, Carriage, 5/16 - 18 x 1
(Superseded to 704217)

$

$

Not available

602

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

603

Murray 71038MA

NUT, Hex Nylock, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 760268MA

FLAP, Chute

$10.99

$

Usually ships in 2-12 days

0

606

Murray 1501932YZMA

CHUTE COLLAR

$30.99

$

Usually ships in 2-12 days

0

607

Murray 02X101MA

SCREW, 1/4 - 20 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 6

0

609

Murray 15X145MA

NUT, Hex Nylock, 5/16 - 18
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER RING, Inner

$17.99

$

In Stock, Qty 19

0

611

Murray 1501282MA

RETAINER RING, Outer

$

$

Not available

612

Murray 1501260MA

KNOB & NUT

Note: (Includes Ref. Nos. 597 & 598)

$8.49

$

In Stock, Qty 11

0

613

Murray 760987MA

RIVET, Pop

$3.99

$

In Stock, only 1 left!

0
