726 E (1695444) - John Deere 26" Snow Thrower (2008) Drive Parts Diagram

26" Snow Thrower

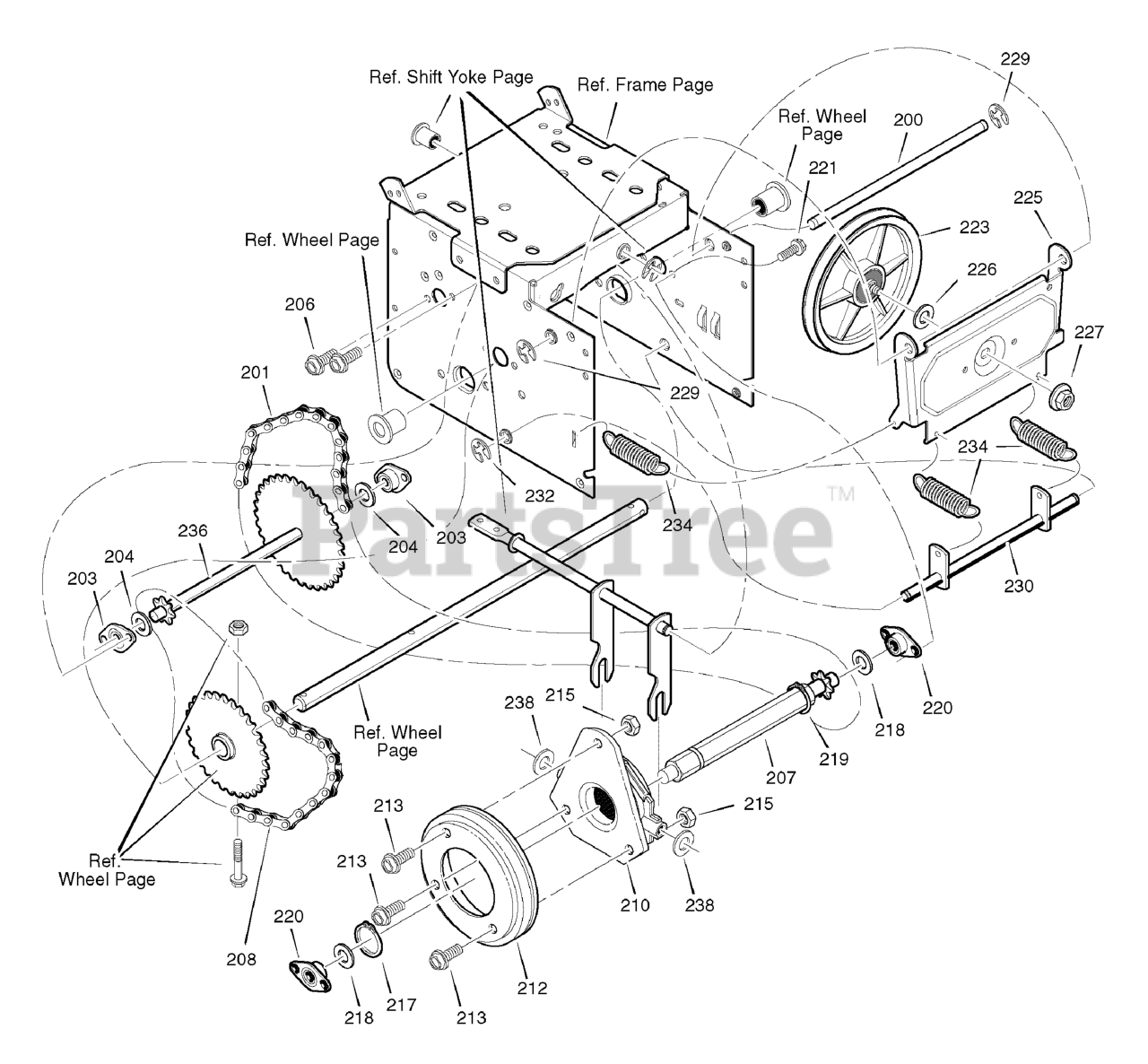

Drive Parts Diagram

  • Title

200

Murray 1501092YZMA

AXLE, L.F. Swing Plate

$12.99

$

Usually ships in 2-12 days

0

201

Murray 579851MA

CHAIN, Roller, #420 x 19

$21.99

$

In Stock, only 1 left!

0

203

Murray 334163MA

BEARING & RETAINER ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

204

Murray 579858MA

WASHER

$4.49

$

In Stock, only 2 left!

0

206

Murray 25X020MA

SCREW, Tap, 5/16 - 18 x 1/2

$4.99

$

In Stock, Qty 6

0

207

Murray 1501236MA

HEX SHAFT ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

208

Murray 579868MA

CHAIN, Roller, #420 x 18

$20.99

$

In Stock, only 1 left!

0

210

Murray 337029MA

BEARING, Trunion Clutch R.H.
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 6

0

212

Murray 1501435MA

WHEEL, Friction Disc

$27.99

$

In Stock, Qty 20+

0

213

Murray 001X38MA

BOLT

$4.49

$

In Stock, Qty 20+

0

215

Murray 303008MA

NUT, Hex Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

217

Murray 1733326SM

RING, Retainer

$4.49

$

In Stock, only 1 left!

0

218

Murray 579858MA

WASHER

$4.49

$

In Stock, only 2 left!

0

219

Murray 579859MA

RING, Snap

$4.49

$

Usually ships in 2-12 days

0

220

Murray 334163MA

BEARING & RETAINER ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

221

Murray 25X020MA

SCREW, Tap, 5/16 - 18 x 1/2

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115MA

FRICTION PULLEY ASSEMBLY

$

$

Not available

225

Murray 1501057YZMA

PLATE, L.F. Swinging

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, only 2 left!

0

227

Murray 15X114MA

NUT, Flange Lock, 3/8 - 24

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, Ring

$4.49

$

In Stock, only 2 left!

0

230

Murray 1502105YZMA

SPRING LINK ASSEMBLY, L.F

$33.99

$

Usually ships in 2-12 days

0

232

Murray 11X30MA

RETAINER, Ring

$4.49

$

In Stock, only 2 left!

0

234

Murray 1736469YP

SPRING, Extension

$6.99

$

In Stock, Qty 6

0

236

Murray 1501237MA

SPROCKET

$80.99

$

In Stock, only 1 left!

0

238

Murray 71074MA

WASHER, Flat

$

$

Not available
