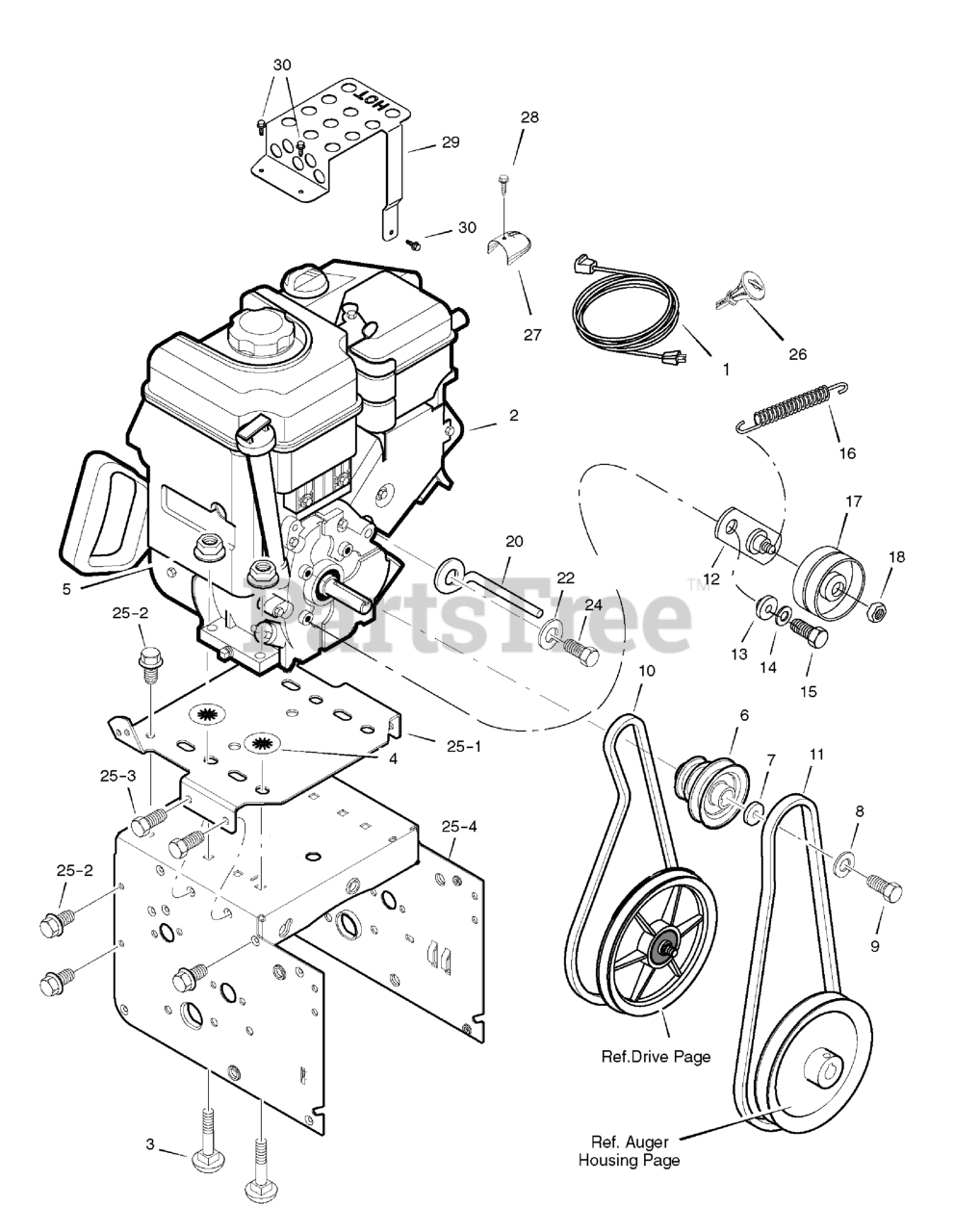

726 E (1695444) - John Deere 26" Snow Thrower (2008) Engine Parts Diagram

26" Snow Thrower

Engine Parts Diagram

  • Title

1

Murray 6219MA

CORD, Electric, 10FT. 110V

$42.99

$

In Stock, only 1 left!

0

2

ENGINE *

Note: (Model# 12D1140126E8)

$

$

Not available

3

Murray 002X97MA

BOLT, Carriage
(Superseded to 704210)

$4.99

$

In Stock, only 4 left!

0

4

Murray 028X76MA

RETAINER, Push

$4.49

$

Usually ships in 2-12 days

0

5

Murray 710026MA

NUT
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

6

Murray 1501109MA

PULLEY, Engine

$43.99

$

In Stock, only 2 left!

0

7

Murray 17X170MA

WASHER

$

$

Not available

8

Murray 17X146MA

WASHER, Flat
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

9

Murray 910828MA

BOLT, Hex 5/16-24 x 1
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

10

Murray 37X120MA

V-BELT, Drive, 4L

$21.99

$

In Stock, only 2 left!

0

11

Murray 1733324SM

V-BELT, Auger, 3L

$19.99

$

In Stock, only 1 left!

0

12

Murray 1501112YZMA

BRACKET ASSEMBLY, Idler
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, Idler Bracket

$5.99

$

In Stock, only 2 left!

0

14

Murray 71060MA

WASHER, Split
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

15

Murray 710097MA

SCREW, 5/16-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

16

Murray 53704MA

SPRING, Idler Traction Drive

$8.99

$

In Stock, only 2 left!

0

17

Murray 1502120MA

PULLEY, Idler

$23.99

$

In Stock, only 2 left!

0

18

Murray 590MA

NUT, Jam, 3/8 - 16
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

20

Murray 1501201MA

GUIDE, Rod Belt
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

22

Murray 71060MA

WASHER
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

24

Murray 710097MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1740574FYP

PLATE, Engine

$32.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 14

0

25-3

Murray 25X020MA

SCREW

$5.49

$

In Stock, Qty 6

0

25-4

Murray 1740572FYP

MOTOR BOX

$120.99

$

Usually ships in 2-12 days

0

26

Murray 794696

KEY, Briggs Engine

$8.49

$

In Stock, only 2 left!

0

27

Murray 794213

DEFLECTOR, Muffler

$

$

Not available

28

Murray 699479

SCREW

$4.49

$

Usually ships in 2-12 days

0

29

Murray 1734732SM

HEAT SHIELD, Muffler

$22.99

$

Usually ships in 2-12 days

0

30

Murray 1736103SM

SCREW, Hex-Washer

$4.99

$

Usually ships in 2-12 days

0
