726 E (1695444) - John Deere 26" Snow Thrower (2008) Frame Parts Diagram

26" Snow Thrower

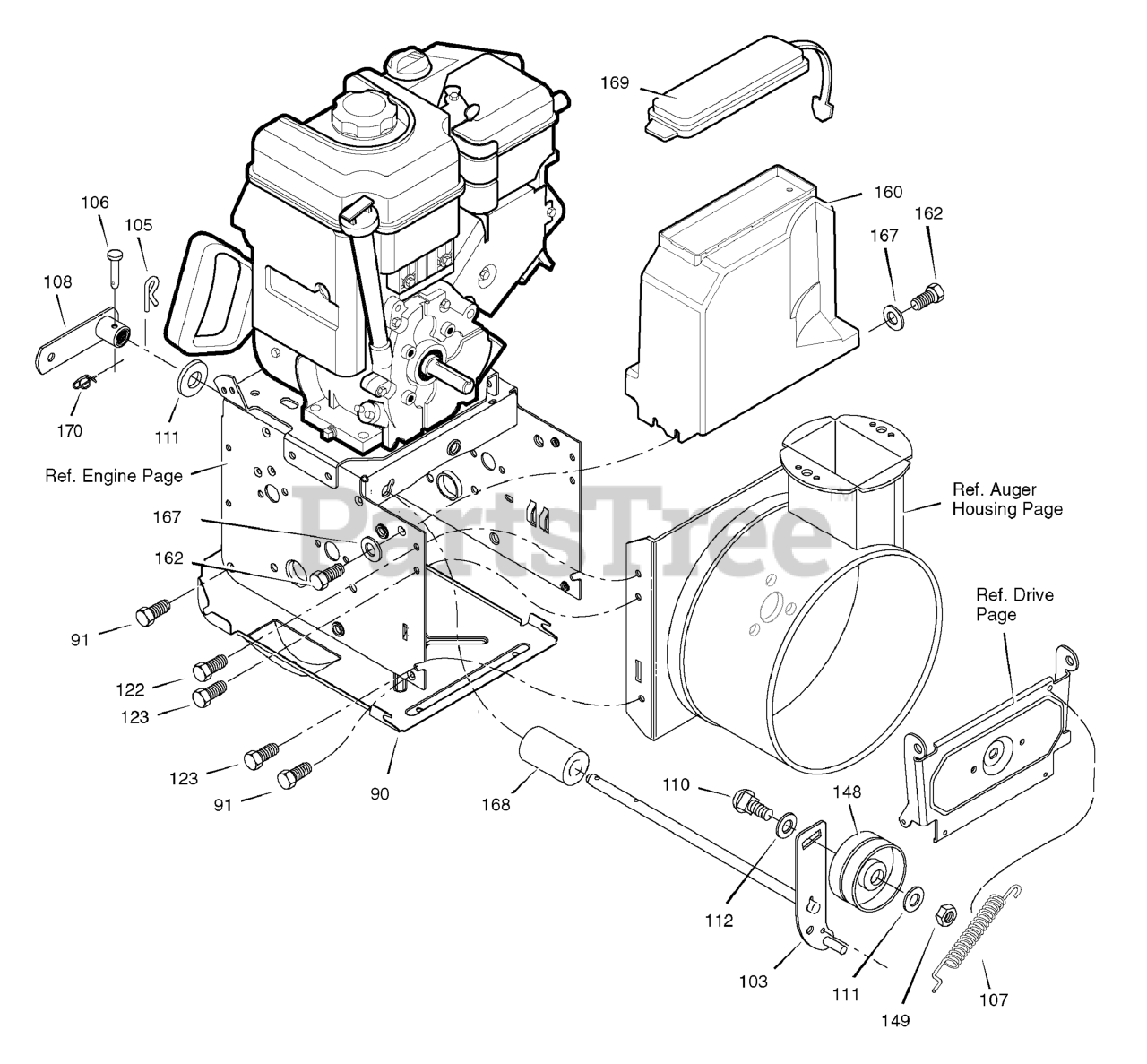

Frame Parts Diagram

  • Title

90

Murray 1740906ASM

COVER, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

91

Murray 310169MA

SCREW, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

103

Murray 1501111YZMA

IDLER ASSEMBLY, Auger

$

$

Not available

105

Murray 711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

107

Murray 165X160MA

SPRING, Tension

$

$

Not available

108

Murray 1733451SM

ARM CONTROL

$20.99

$

In Stock, Qty 5

0

110

Murray 7091945YP

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

111

Murray 711617MA

WASHER, Flat

$5.49

$

In Stock, only 2 left!

0

112

Murray 017X48MA

WASHER

$8.49

$

Usually ships in 2-12 days

0

122

Murray 25X021MA

SCREW, Tap, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

123

Murray 25X020MA

SCREW, Tap, 5/16 - 18 x 1/2

$4.99

$

In Stock, Qty 6

0

148

Murray 1502120MA

PULLEY, Idler

$21.99

$

In Stock, only 1 left!

0

149

Murray 590MA

NUT, Jam, 3/8 - 16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Murray 1502167MA

COVER, Belt

$42.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, Tap

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067MA

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

168

Murray 1502041MA

SPACER, Auger Bracket

$5.99

$

Usually ships in 2-12 days

0

169

Murray 760539MA

LID, Tool Box

$10.99

$

In Stock, only 1 left!

0

170

Murray 7023590SM

PIN, Cotter, Self-Locking, 1/4"

$3.99

$

In Stock, Qty 20+

0
