726 E (1695444) - John Deere 26" Snow Thrower (2008) Handle Assembly Parts Diagram

26" Snow Thrower

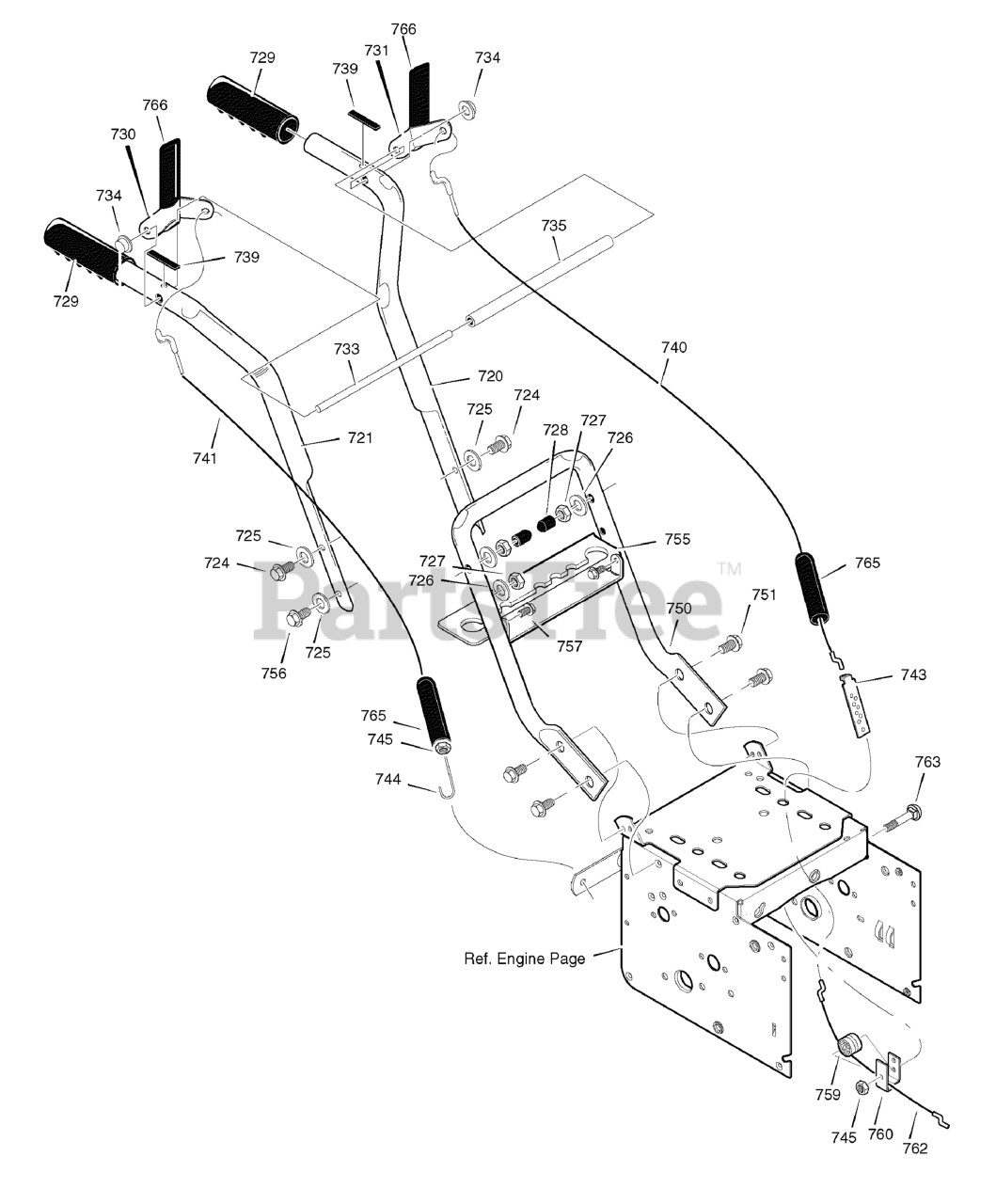

Handle Assembly Parts Diagram

  • Title

720

Murray 1740587ASM

HANDLE, Upper L.H.

$76.99

$

Usually ships in 2-12 days

0

721

Murray 1740573ASM

HANDLE, Upper R.H.

$58.99

$

Usually ships in 2-12 days

0

724

Murray 11234MA

SCREW, 5/16-18 x 2-3/4

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

726

Murray 71060MA

WASHER, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

727

Murray 15X144MA

NUT, Hex, 5/16 - 18

$3.99

$

In Stock, only 1 left!

0

728

Murray 11261MA

STOP, Red Plastic

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP, Finger Handle

$5.49

$

Usually ships in 2-12 days

0

730

Murray 1740700AYP

LEVER ASSEMBLY, Clutch Drive R.H.

$39.99

$

Usually ships in 2-12 days

0

731

Murray 1740699AYP

LEVER ASSEMBLY, Clutch Drive L.H.

$39.99

$

In Stock, only 1 left!

0

733

Murray 337381MA

ROD, Pivot Clutch

$50.99

$

In Stock, only 1 left!

0

734

Murray 761105MA

NUT, Push-Pal
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

735

Murray 337373MA

SPACER, Handle

$8.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, Rectangular

$

$

Not available

740

Murray 1501123MA

CABLE, Clutch, 28.44

$12.99

$

In Stock, Qty 9

0

741

Murray 761872MA

CABLE, Auger Clutch

$15.99

$

In Stock, only 1 left!

0

743

Murray 313441MA

BRACKET, Cable Adjuster

$

$

Not available

744

Murray 1673MA

SPRING, Auger Clutch

$8.99

$

In Stock, Qty 19

0

745

Murray 15X145MA

NUT, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray 1740701ASM

HANDLE, Lower

$140.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray 1740698ASM

BRACKET, Gear Selector

$19.99

$

Usually ships in 2-12 days

0

756

Murray 6751MA

SCREW, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

757

Murray 310169MA

SCREW, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

759

Murray 579860MA

CABLE SPOOL, Auger Clutch

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059YZMA

BRACKET, Cable Spool

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, Lower Drive, 12

$8.49

$

In Stock, Qty 20+

0

763

Murray 001798MA

BOLT, Hex, 1/4 - 20 x 1-1/2

$4.49

$

In Stock, only 1 left!

0

765

Murray 308146MA

BOOT, Clutch Spring

$6.49

$

In Stock, only 1 left!

0

766

Murray 337380MA

GRIP

$8.49

$

In Stock, only 2 left!

0
