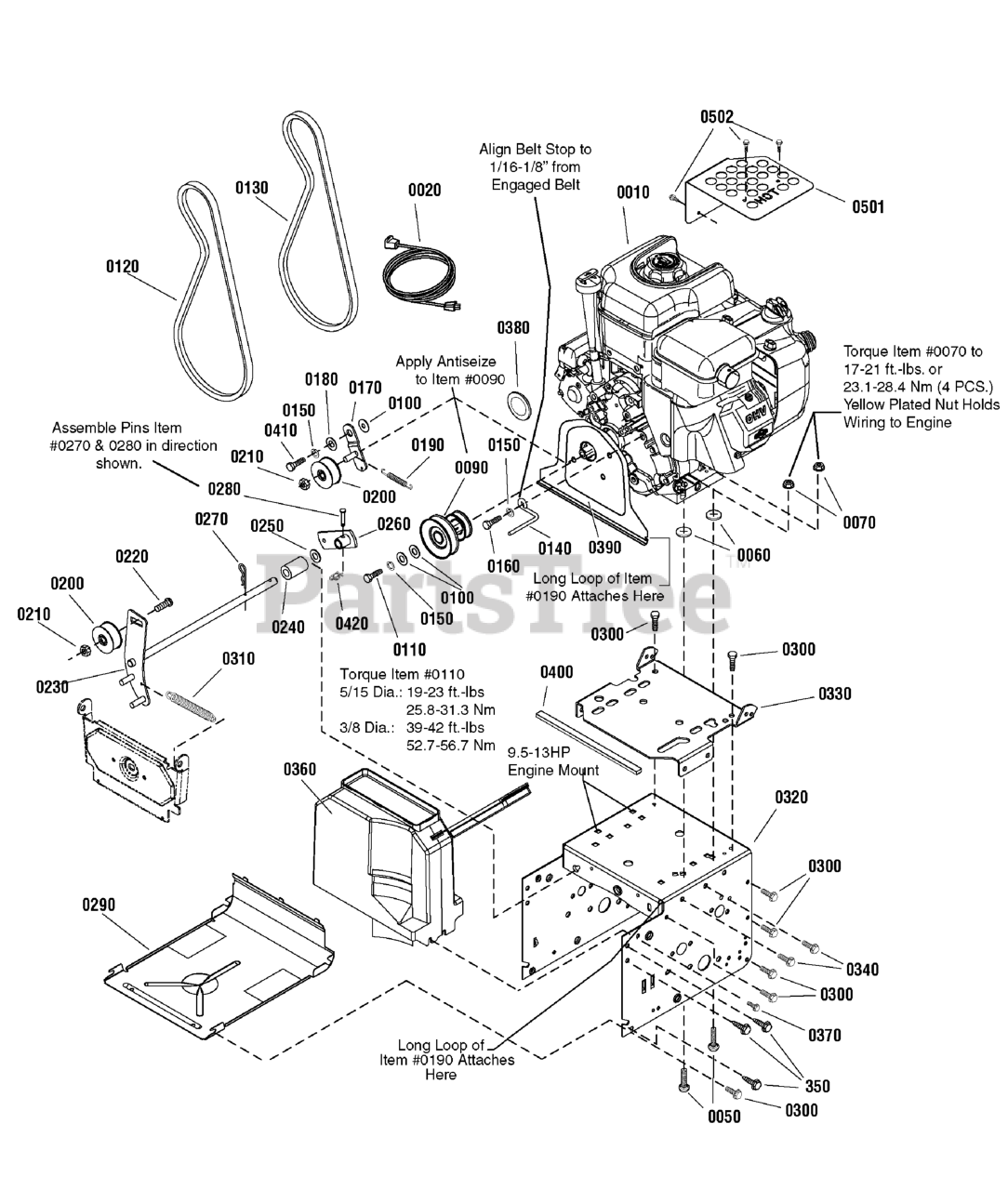

726 E (1695620) - John Deere 26" Snow Thrower (2009) Engine & Frame Group Parts Diagram

26" Snow Thrower

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 12D114-0126-E8

* ENGINE, 9TP 110V 60W

Note: (Engine Model: 12D114-0126-E8)

$

$

Currently unavailable

0020

Murray 6219MA

CORD, Electric, 10FT. 110V

$42.99

$

In Stock, only 1 left!

0

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

0060

Murray 028X76MA

NUT, Push, 1/4 Dia.

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 2831277SM

NUT, Hex Flange, 5/16-18 Whiz-Lock, SM YEL
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY, Engine

$43.99

$

In Stock, only 2 left!

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

0110

Murray 1921982SM

CAPSCREW, Hex-Head, 5/16-24X1.250 G5
(Superseded to 703299)

$5.49

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, 3L, 33.13

$19.99

$

In Stock, only 3 left!

0

0130

Murray 37X120MA

BELT, Auger V4L 35.58

$21.99

$

In Stock, only 2 left!

0

0140

Murray 1733014SM

STOP, Belt, 3
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

0160

Murray 1921515SM

CAPSCREW, Hex-Head, 5/16-24X0.750 G5
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

0170

Murray 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.99

$

In Stock, only 2 left!

0

0190

Murray 53704MA

SPRING, External Idler

$8.99

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$23.99

$

In Stock, only 2 left!

0

0210

Murray 1960251SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4 G5
(Superseded to 1960268SM)

$4.49

$

In Stock, only 3 left!

0

0230

Murray 1501111YZMA

ASSEMBLY, Idler, Auger

$

$

Not available

0240

Murray 1501200MA

SPACER, 1/2ID x 1OD x 1-3/4

$6.49

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM-CONTROL 2008 WB SNOW P'MTL YEL

$22.99

$

In Stock, only 2 left!

0

0270

Murray 711682MA

PIN, Hair 3/8 x 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, CLEVIS
(Superseded to 703313)

$5.49

$

In Stock, only 2 left!

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$

$

Not available

0300

Murray 1927429SM

SCREW, Hex-Washer head, Taptite, 1/4-20 X 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

0310

Murray 165X160MA

SPRING, External, Auger, Idler

$

$

Not available

0320

Murray 1740572FYP

FRAME BOX

$120.99

$

Usually ships in 2-12 days

0

0330

Murray 1733583FSM

PLATE, Engine Mount

$58.99

$

Usually ships in 2-12 days

0

0340

Murray 1924856SM

SCREW, Hex-Washer head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 17

0

0350

Murray 1664847SM

SCREW, Hex-Washer head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1733923SM

BELT COVER

$80.99

$

In Stock, only 2 left!

0

0370

Murray 26X306MA

SCREW, Self-Tapping, 1/4 x 3/4
(Superseded to 1751355YP)

$6.99

$

Usually ships in 2-12 days

0

0380

Murray 1733898SM

SEAL, Foam

$6.99

$

Usually ships in 2-12 days

0

0390

Murray 1733868ASM

PLATE, Seal
(Superseded to 1733868BMYP)

$14.99

$

In Stock, only 1 left!

0

0400

Murray 1733897SM

SEAL, Foam

$9.49

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex, 5/16-24 x 1.00 YZ
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

0420

Murray 7023590SM

PIN, Cotter, Self Locking, 1/4"

$4.49

$

In Stock, Qty 20+

0

0501

Murray 797003

GUARD, Muffler

$50.99

$

In Stock, only 1 left!

0

0502

Murray 699854

SCREW, Hex-Washer Head, Muffler Guard

$4.49

$

In Stock, Qty 17

0
