726 E (1696050) - John Deere 26" Snow Thrower (2011) Auger Housing Group Parts Diagram

26" Snow Thrower

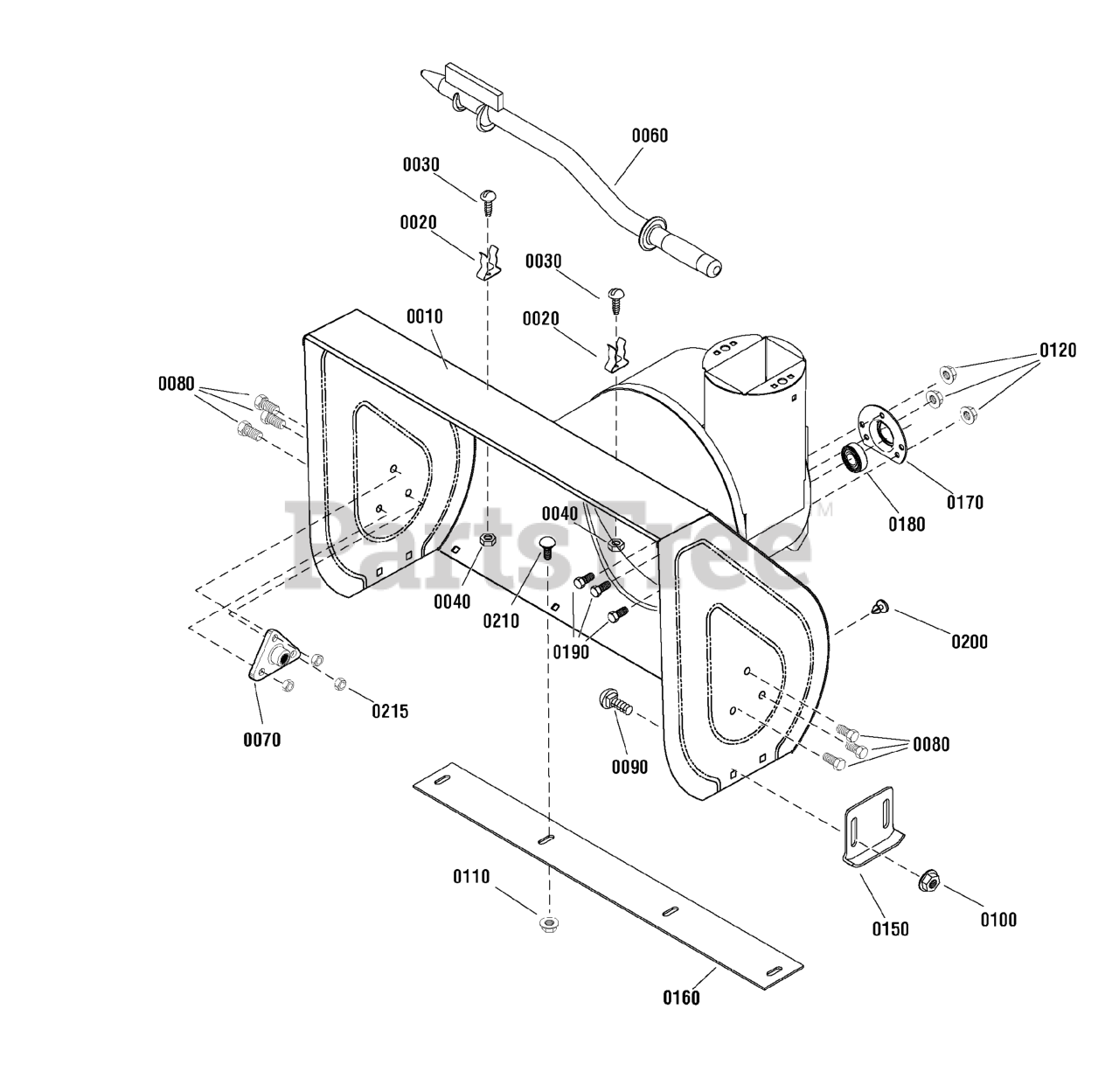

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687523YP

AUGER HOUSING ASSEMBLY, 26"

$467.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, Spring, Snow Brush

$6.49

$

In Stock, only 1 left!

0

0030

Murray 1960569SM

SCREW, Truss-Head, #10-24 X 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 15X146MA

NUT, 10 x 24 Nylock, YZ
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0060

Murray 1736094YP

STICK, Cleanout Brush, 22-1/2

$34.99

$

In Stock, only 2 left!

0

0070

Murray 9517MA

BEARING, Auger

$5.99

$

In Stock, Qty 20+

0

0080

Murray 9357MA

SCREW5/16-18X0.75 WDFLWA
(Superseded to 703354)

$5.49

$

In Stock, Qty 16

0

0090

Murray 7090799SM

BOLT, Carriage, 5/16 x 5/8 G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1931277SM

NUT, 5/16-18 Hex-Flange, SERLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Murray 780285MA

NUT, 1/4-20, Hex-Flange, WHIZLK
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0120

Murray 1931277SM

NUT, 5/16-18 Hex-Flange, SERLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1502079E701MA

SKID, Height Adjust

$

$

Not available

0160

Murray 581399E701MA

BLADE, Scraper, 26

$

$

Not available

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0190

Murray 577400MA

SCREW, 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

0200

Murray 309235MA

FASTENER, Ratchet

$3.99

$

Usually ships in 2-12 days

0

0210

Murray 340714MA

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

0215

Murray 711862MA

NUT, 5/16-18 Hex-Flange

$4.99

$

In Stock, Qty 5

0
