726 TDE (31AM73TS710) - Cub Cadet 26" Snow Thrower (2008) Chute Parts Diagram

26" Snow Thrower

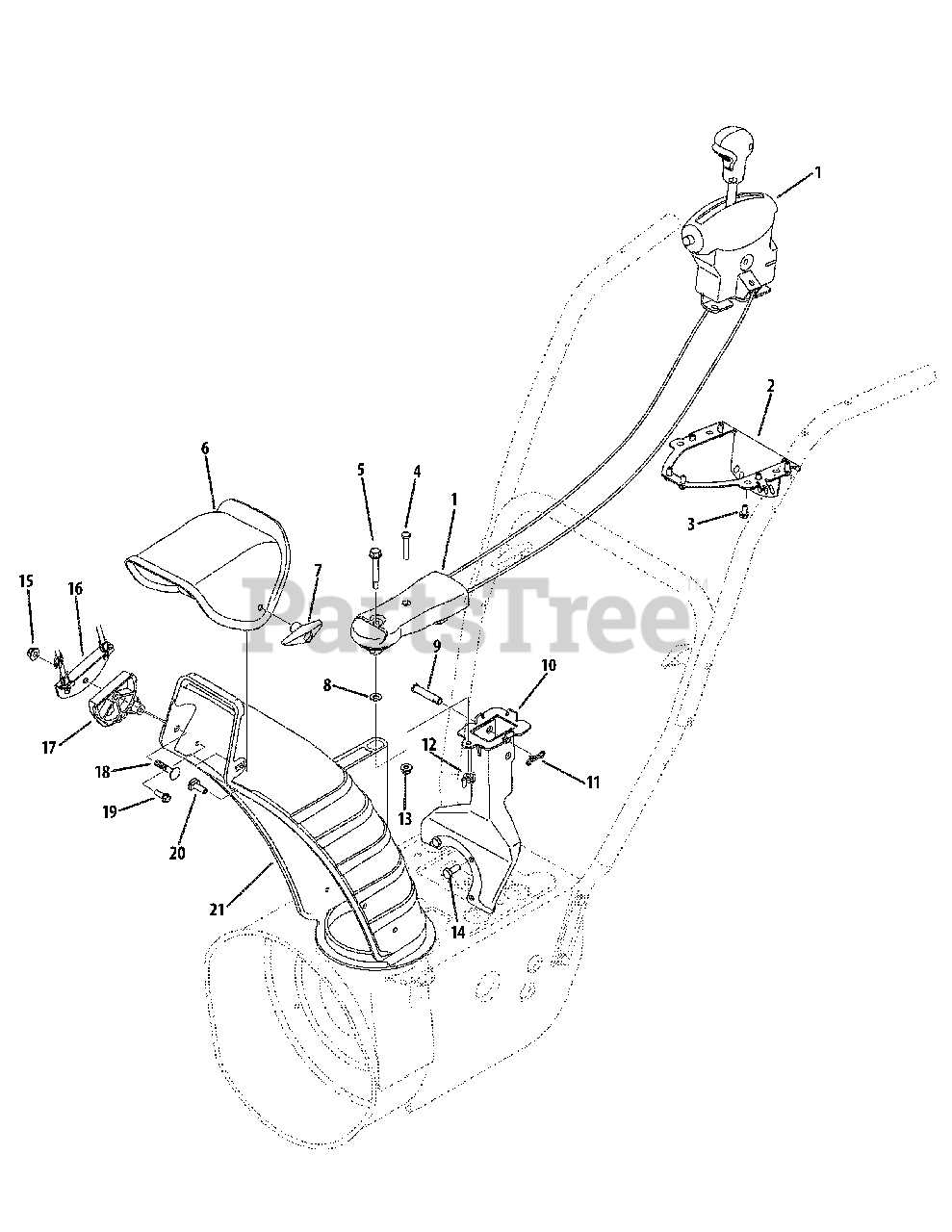

Chute Parts Diagram

  • Title

1

Cub Cadet 984-04331

Chute Control Assembly, 4-Way
(Superseded to 753-08391)

$302.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 946-04551

Cable, Pitch Control with routing clip

Note: (not shown)

$40.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 946-04527

Cable, Pitch Control

Note: (not shown)

$40.99

$

In Stock, only 2 left!

0

2

Cub Cadet 731-07868

Clip, Routing

Note: (not shown)

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$7.49

$

In Stock, Qty 18

0

4

Cub Cadet 710-0606

Hex Screw, 1/4-20 x 1.50

$5.99

$

In Stock, only 2 left!

0

5

Cub Cadet 738-04194

Shoulder Screw, .312 x 1.70 x /-20

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$17.99

$

In Stock, Qty 5

0

7

Cub Cadet 720-04072

Wing Knob, 5/16-18
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.99

$

In Stock, Qty 15

0

9

Cub Cadet 711-04469A

Clevis Pin, 3/8 x 1.87

$6.49

$

In Stock, Qty 7

0

10

Cub Cadet 684-04311-0637

Chute Support Bracket
(Superseded to 684-04311A-0637)

$44.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3087

Wing Nut, 1/4-20

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 16

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 784-5594-0637

Cable Bracket

$12.99

$

In Stock, only 2 left!

0

17

Cub Cadet 731-06451

Chute Tilt Cable Guide

$5.49

$

In Stock, Qty 9

0

18

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.99

$

In Stock, only 4 left!

0

21

Cub Cadet 731-06440

Lower Chute, 5.0
(Superseded to 731-06440A)

$55.99

$

In Stock, only 1 left!

0
