7260 (54A-435D100) - Cub Cadet Compact Tractor Final Drive HST 2WD (Part 2) Parts Diagram

Compact Tractor

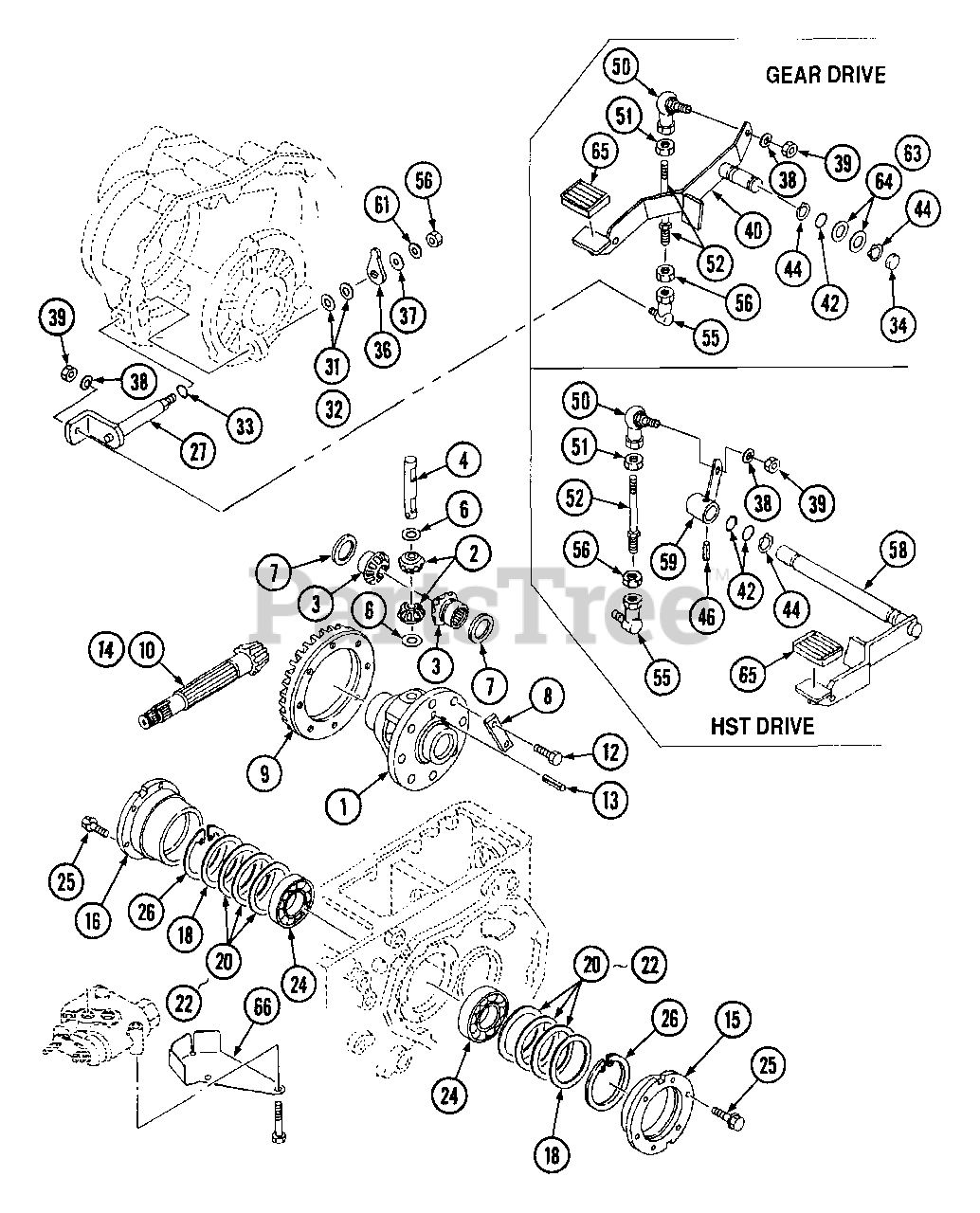

Final Drive HST 2WD (Part 2) Parts Diagram

  • Title

Cub Cadet MA-19641415000

Diff. Case Ass'y.

Note: Includes items 1-9, 12-14

$

$

Not available

Gear Case Ass'y.

$

$

Not available

1

Cub Cadet MA-19061411000

Case, Differential

$

$

Not available

2

Cub Cadet MA-10211412001

Pinion, Diff.

$

$

Not available

3

Cub Cadet MA-10211413001

Gear, Side

$

$

Not available

4

Cub Cadet MA-10211414000

Shaft, Pinion

$

$

Not available

6

Cub Cadet MA-10211415001

Washer, Thrust

$

$

Not available

7

Cub Cadet MA-10211416001

Washer, Thrust

$

$

Not available

8

Cub Cadet MA-10211417000

Washer, Lock

$

$

Not available

9

Cub Cadet MA-19641416000

7-35 Ring Gear/Pinion Set

Note: Includes Item 14

$

$

Not available

9

Cub Cadet MA-19641416001

7-35 Ring Gear/Pinion Set

Note: Includes Item 14

$

$

Not available

12

Cub Cadet MA-A0400110020

Bolt, M10-1.50

$

$

Not available

Cub Cadet MA-10131404000

Bolt, M10-1.25

$

$

Currently unavailable

13

Cub Cadet MA-05500006040

Pin, Spring

$

$

Not available

14

Cub Cadet MA-19641416000

7-35 Ring Gear/Pinion Set

Note: Includes Item 9

$

$

Not available

14

Cub Cadet MA-19641416001

7-35 Ring Gear/Pinion Set

Note: Includes Item 9

$

$

Not available

15

Cub Cadet MA-19641431000

Holder, L.H.

$

$

Not available

16

Cub Cadet MA-19641432000

Holder, R.H.

$234.99

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-19641434000

Liner

$

$

Not available

Cub Cadet MA-19641445000

Liner, Set

Note: Includes items 20-22

$

$

Not available

20

Cub Cadet MA-19641435000

Liner

$

$

Not available

21

Cub Cadet MA-19641436000

Liner

$

$

Not available

22

Cub Cadet MA-19641437000

Liner

$

$

Not available

24

Cub Cadet MA-10211438000

Bearing

$

$

Not available

25

Cub Cadet MA-F1540108025

Bolt

$

$

Not available

26

Cub Cadet MA-07410009501

Ring

$

$

Not available

27

Cub Cadet MA-19641439AG0

Shifter

$

$

Not available

Cub Cadet MA-10191806000

Shim Set

Note: Includes items 31,32

$

$

Not available

31

Cub Cadet MA-07310001504

Liner t=0.4

$

$

Not available

32

Cub Cadet MA-07310001512

Liner t=1.2

$

$

Not available

33

Cub Cadet MA-08300100120

O-Ring
(Superseded to MA-08301100120)

$

$

Not available

34

Seal Cap

Note: Not used on this application

$

$

Not available

36

Cub Cadet MA-19641438000

Arm

$

$

Not available

37

Cub Cadet MA-03500151026

Washer

$

$

Not available

38

Cub Cadet MA-A3600100802

Washer

$

$

Not available

39

Cub Cadet MA-A3010108002

Nut

$

$

Not available

40

Pedal, Diff. Lock

Note: Not used on this application

$

$

Not available

42

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

44

Cub Cadet MA-07400002000

Ring

$

$

Not available

46

Cub Cadet MA-05500008040

Pin, Spring

$

$

Not available

50

Cub Cadet MA-10251135000

Ball Joint, Left Hand Thread

$

$

Not available

51

Cub Cadet MA-A3032110002

Nut, Left Hand Thread

$

$

Not available

52

Cub Cadet MA-10311814000

Rod

$

$

Not available

55

Cub Cadet MA-37041577000

Joint, Ball

$

$

Not available

56

Cub Cadet MA-A3030110002

Nut

$

$

Not available

58

Cub Cadet MA-19641443AG0

Pedal, Diff. Lock

$

$

Not available

59

Cub Cadet MA-19641444AG1

Arm, Diff.

$

$

Not available

61

Cub Cadet MA-A3600101002

Washer

$

$

Not available

Liner Set

Note: Includes items 63,64; Not used on this application

$

$

Not available

63

Liner t=0.4

Note: Not used on this application

$

$

Not available

64

Liner t=1.0

Note: Not used on this application

$

$

Not available

65

Cub Cadet MA-10320228000

Cover, Pedal

$

$

Not available

66

Cub Cadet MA-19641446000

Plate, Guide

$

$

Not available
