726005 - Ariens Track Conversion Kit Track Conversion Parts Diagram

Track Conversion Kit

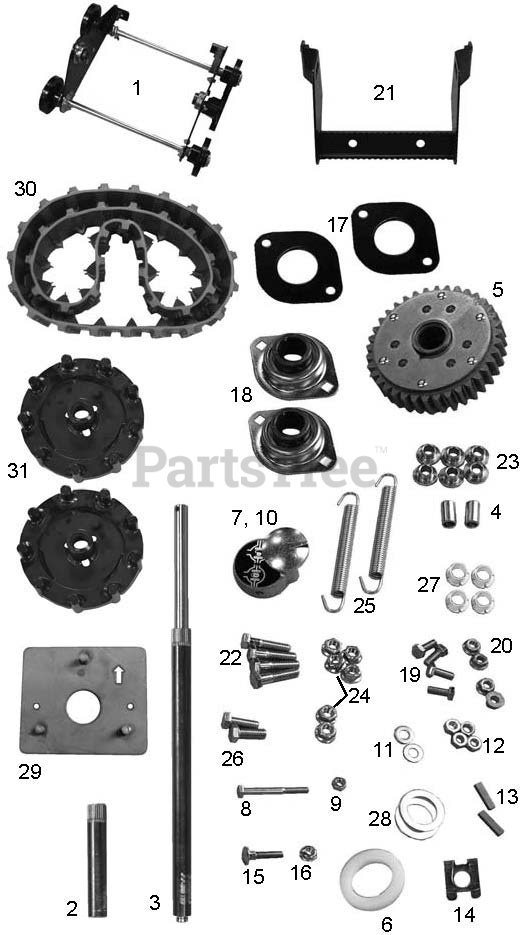

Track Conversion Parts Diagram

  • Title

1

Ariens N/A

Note: TRACK CARRIAGE ASSEMBLY

$

$

Currently unavailable

2

Ariens 52604200

AXLE, SHORT-TRACK W/BUSHINGS

$69.99

$

Usually ships in 4-12 days

0

3

Ariens 00661400

AXLE, LONG-TRACK DIFFERENTIAL

$111.99

$

Usually ships in 4-12 days

0

4

Ariens 02968100

SPACER, TUBE .384X.500X.860

$

$

Not available

5

Ariens 52604000

DIFFERENTIAL, AXLE LOCK

$230.99

$

Usually ships in 4-12 days

0

6

Ariens 06400012

WSHR-FL-NY 1.38X2.00X.25

$5.99

$

In Stock, only 2 left!

0

7

Ariens 52605000

HUB, LOCKOUT-ASSEMBLY

$113.99

$

Usually ships in 4-12 days

0

8

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07864400

DIFFERENTIAL LOCK DECAL

$28.99

$

Usually ships in 4-12 days

0

11

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

14

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, only 3 left!

0

15

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

17

Ariens 00661251

PLATE, BEARING SPACER

$

$

Not available

18

Ariens 05400232

BEARING, FLANGE-1.004/1.000"ID

$62.99

$

Usually ships in 4-12 days

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00670051

ADJUSTER, HEIGHT-FOOT

$

$

Not available

22

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

23

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

25

Ariens 08305800

SG-TENS .080X.470X4.88 WLD 30

$14.99

$

Usually ships in 4-12 days

0

26

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

28

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

29

Ariens 00366500

$

$

Currently unavailable

30

Ariens 00669700

TRACK, RUBBER

$182.99

$

Usually ships in 4-12 days

0

31

Ariens 00670351

WHEEL, DRIVE-TRACK

$245.99

$

Usually ships in 4-12 days

0
