726029 - Ariens Track Conversion Kit Track Parts Diagram

Track Conversion Kit

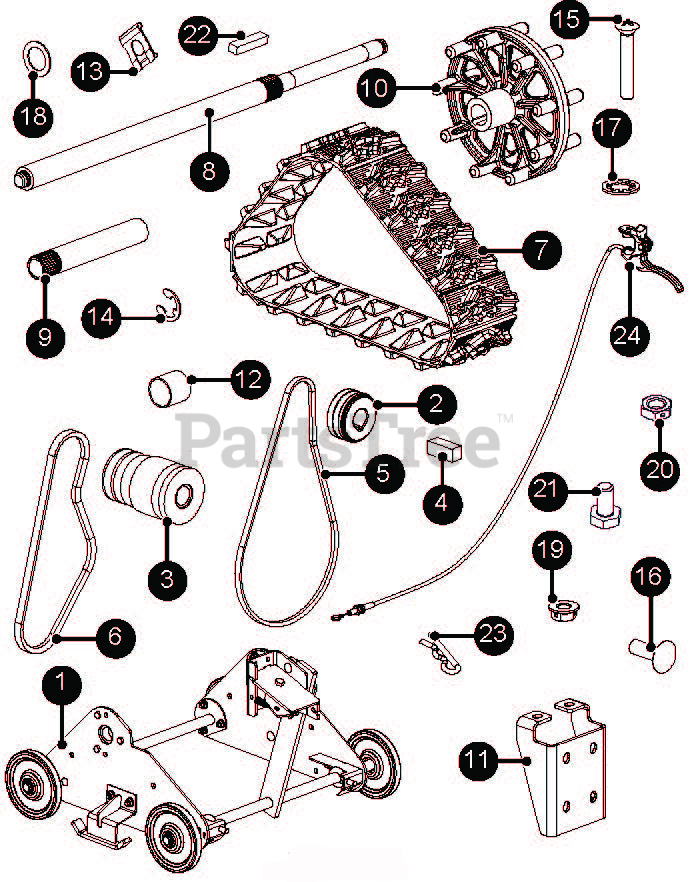

Track Parts Diagram

  • Title

1

Ariens N/A

Note: TRACK CARRIAGE ASSEMBLY

$

$

Currently unavailable

2

Ariens 04503300

SHEAVE, DRIVE

$209.99

$

Usually ships in 4-12 days

0

3

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

$197.99

$

Usually ships in 4-12 days

0

4

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 1 left!

0

5

Ariens 07200505

V-BELT, 3L-WRAPPED

$35.99

$

In Stock, only 1 left!

0

6

Ariens 07200630

V-BELT, 4L-WRAPPED

$27.99

$

In Stock, only 2 left!

0

7

Ariens 00669700

TRACK, RUBBER

$215.99

$

Usually ships in 4-12 days

0

8

Ariens 03996100

AXLE, LONG-TRACK DIFFERENTIAL

$104.99

$

Usually ships in 4-12 days

0

9

Ariens 52615800

AXLE, SHORT-W/BUSHINGS

$46.99

$

Usually ships in 4-12 days

0

10

Ariens 04520000

WHEEL, MACHINED DRIVE

$128.99

$

Usually ships in 4-12 days

0

11

Ariens 04993851

BRACKET, REINFORCEMENT

$10.99

$

Usually ships in 4-12 days

0

12

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

13

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

14

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 13

0

15

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

18

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 14

0

19

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 8

0

20

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

22

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 9

0

23

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, only 4 left!

0

24

Ariens 06900510

CABLE, TRACK REMOTE

$65.99

$

In Stock, only 2 left!

0
