7265 (54A-445D100) - Cub Cadet Compact Tractor Steering 726 MFD Parts Diagram

Compact Tractor

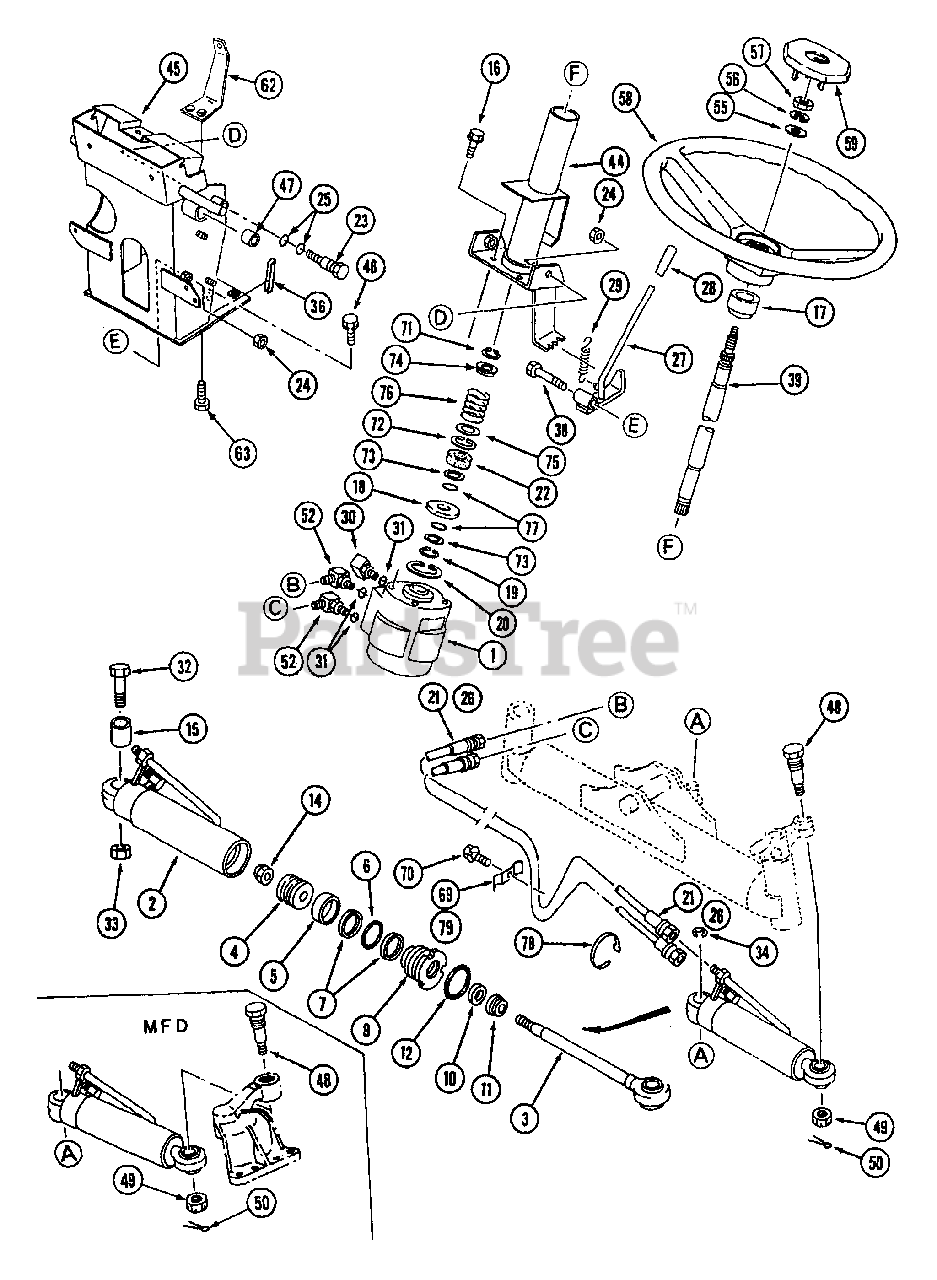

Steering 726 MFD Parts Diagram

  • Title

1

Cub Cadet MA-10302268002

Steering Unit

$

$

Not available

Cub Cadet MA-19642205AG0

Cylinder, Ass'y.

Note: Includes Items 2 - 15

$

$

Not available

2

Cub Cadet MA-19642206AG0

Tube, Ass'y.

$

$

Not available

3

Cub Cadet MA-19642207AG0

Rod, Cylinder

$

$

Not available

4

Cub Cadet MA-19632208000

Piston

$

$

Not available

Cub Cadet MA-19632209000

Kit, Seal A

Note: Includes Items 5 - 7

$

$

Not available

5

Cub Cadet MA-19632209100

Wear Ring

$

$

Not available

6

Cub Cadet MA-08301100340

O-Ring

$

$

Not available

7

Cub Cadet MA-08320100340

Ring

$17.99

$

Usually ships in 3-6 days

0

9

Cub Cadet MA-19632211000

Case

$

$

Not available

Cub Cadet MA-19632212000

Kit, Seal B

Note: Includes Items 10 & 11

$

$

Not available

10

Cub Cadet MA-19632212100

Seal, Rod

$

$

Not available

11

Cub Cadet MA-19632212200

Seal, Dust

$

$

Not available

12

Cub Cadet MA-08301100400

O-Ring

$

$

Not available

14

Cub Cadet MA-A3530112000

Nut

$

$

Not available

15

Cub Cadet MA-07963024250

Bushing

$

$

Not available

16

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

17

Cub Cadet MA-11742201170

Bushing, Column

$71.99

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-27931515000

Washer

$

$

Not available

19

Cub Cadet MA-07410004001

Ring

$

$

Not available

20

Cub Cadet MA-07400002000

Ring

$

$

Not available

21

Cub Cadet MA-19682211000

Hose

$

$

Not available

22

Cub Cadet MA-08401022358

Oil Seal

$

$

Not available

23

Cub Cadet MA-19632257000

Bolt

$

$

Not available

24

Cub Cadet MA-A3030112002

Nut

$

$

Not available

25

Cub Cadet MA-08301100160

O-Ring

$4.49

$

Usually ships in 3-6 days

0

26

Hose

Note: Not used on this product

$

$

Not available

27

Cub Cadet MA-19672255AG0

Lever

$

$

Not available

28

Cub Cadet MA-14212284000

Grip

$

$

Not available

29

Cub Cadet MA-27932754001

Spring

$

$

Not available

30

Cub Cadet MA-19632259000

Valve,Check

$

$

Not available

31

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

32

Cub Cadet MA-19632225000

Bolt

$

$

Not available

33

Cub Cadet MA-A0730124001

Nut

$

$

Not available

34

Cub Cadet MA-07420101900

Ring

$

$

Not available

36

Cub Cadet MA-19682238000

Rubber, Band

$

$

Not available

37

Cub Cadet MA-A3030112002

Nut

$

$

Not available

38

Cub Cadet MA-40520112060

Bolt

$

$

Currently unavailable

39

Cub Cadet MA-19682235000

Shaft, Steering

$

$

Not available

44

Cub Cadet MA-19642252AG0

Column

$

$

Not available

45

Cub Cadet MA-19682265AG0

Column Brkt.

$

$

Not available

Cub Cadet MA-19682265AG1

Column Brkt.

$

$

Not available

46

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet MA-07961025200

Bushing

$

$

Not available

48

Cub Cadet MA-19632267000

Bolt

$

$

Not available

49

Cub Cadet MA-A3130101601

Nut

$

$

Not available

50

Cub Cadet MA-05200140032

Pin, Split

$

$

Not available

52

Cub Cadet MA-06313117130

Elbow

Note: Includes Item 31

$

$

Not available

55

Cub Cadet MA-03500151430

Washer

$

$

Not available

56

Cub Cadet MA-A3600101402

Washer

$

$

Not available

57

Cub Cadet MA-A3030114002

Nut

$

$

Not available

Cub Cadet MA-10302216000

Steering Ass'y.

Note: Includes Items 58 & 59

$

$

Not available

58

Cub Cadet MA-10302217000

Steering Wheel

$

$

Not available

59

Cub Cadet MA-10302218000

Center Pad

$

$

Not available

62

Cub Cadet MA-19682267000

Bracket

$

$

Not available

63

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

69

Clamp

Note: Not used on this product

$

$

Not available

70

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

71

Cub Cadet MA-07400102200

Ring

$3.49

$

Usually ships in 3-6 days

0

72

Cub Cadet MA-07410003500

Ring

$

$

Not available

73

Cub Cadet MA-07310002005

Liner t=0.5

$

$

Not available

74

Cub Cadet MA-19672257000

Collar

$

$

Not available

75

Cub Cadet MA-19672258000

Liner

$

$

Not available

76

Cub Cadet MA-31223012001

Spring

$

$

Not available

77

Cub Cadet MA-08301100200

O-Ring

$3.99

$

Usually ships in 3-6 days

0

78

Cub Cadet MA-00511070070

Band, Wire

$

$

Not available

79

Cub Cadet MA-19682223000

Clamp

$

$

Not available
