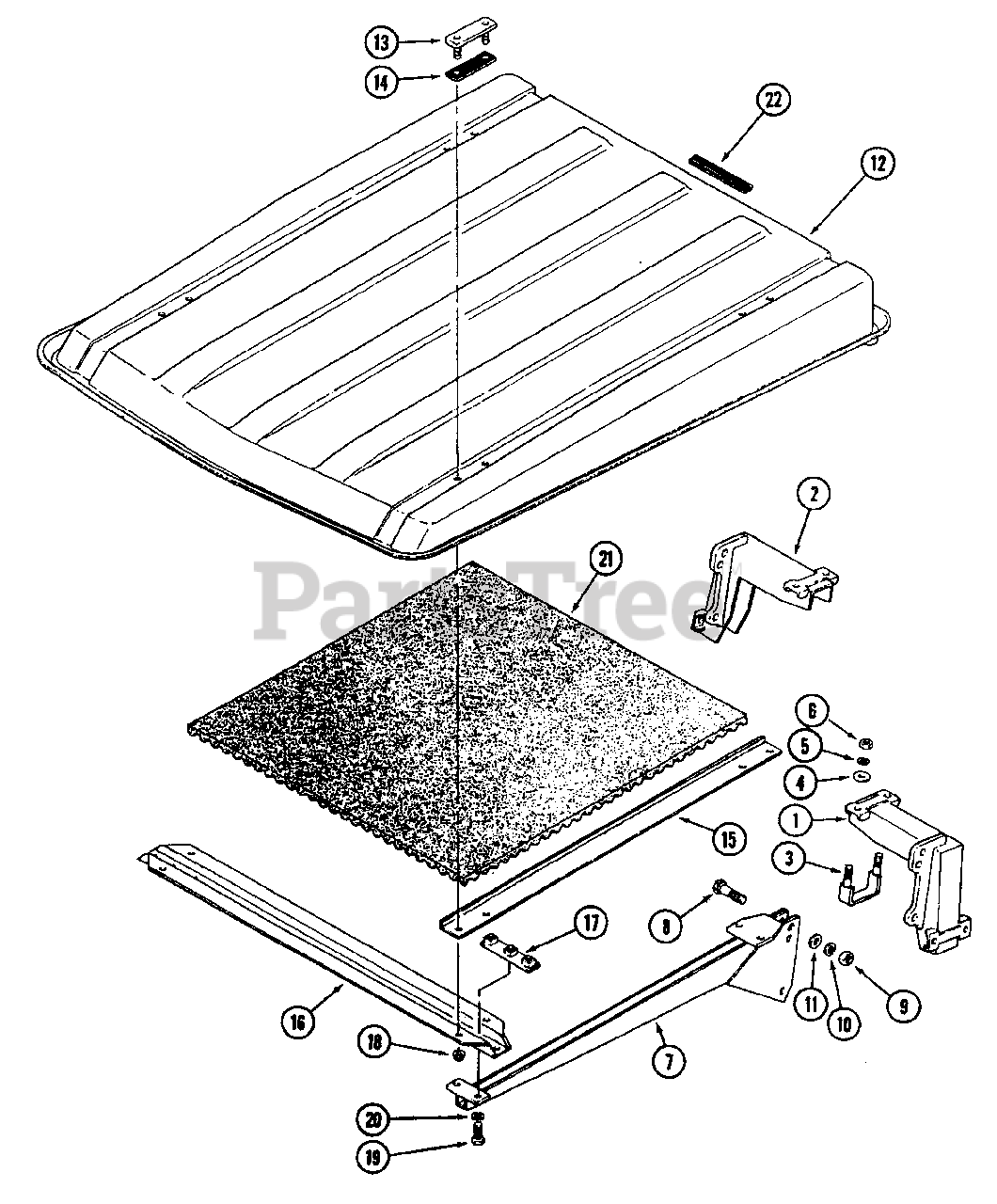

7265 (54A-445D100) - Cub Cadet Compact Tractor Sun Shade Parts Diagram

Compact Tractor

Sun Shade Parts Diagram

  • Title

1

Support L.H.

Note: Not Serviceable

$

$

Not available

2

Support R.H.

Note: Not Serviceable

$

$

Not available

3

U-Bolt

Note: Not Serviceable

$

$

Not available

4

Washer

Note: Not Serviceable

$

$

Not available

5

Washer

Note: Not Serviceable

$

$

Not available

6

Nut

Note: Not Serviceable

$

$

Not available

7

Frame

Note: Not Serviceable

$

$

Not available

8

Bolt

Note: Not Serviceable

$

$

Not available

9

Nut

Note: Not Serviceable

$

$

Not available

10

Washer

Note: Not Serviceable

$

$

Not available

11

Washer

Note: Not Serviceable

$

$

Not available

12

Roof Ass'y.

Note: Not Serviceable; Includes Items 21 & 22

$

$

Not available

13

Clamp, Roof

Note: Not Serviceable

$

$

Not available

14

Packing

Note: Not Serviceable

$

$

Not available

15

Plate

Note: Not Serviceable

$

$

Not available

16

Frame

Note: Not Serviceable

$

$

Not available

17

Clamp

Note: Not Serviceable

$

$

Not available

18

Nut

Note: Not Serviceable

$

$

Not available

19

Bolt

Note: Not Serviceable

$

$

Not available

20

Washer

Note: Not Serviceable

$

$

Not available

21

Cuthion

Note: Not Serviceable

$

$

Not available

22

Trim

Note: Not Serviceable

$

$

Not available
