7265 (54A-445D100) - Cub Cadet Compact Tractor Working Light Parts Diagram

Compact Tractor

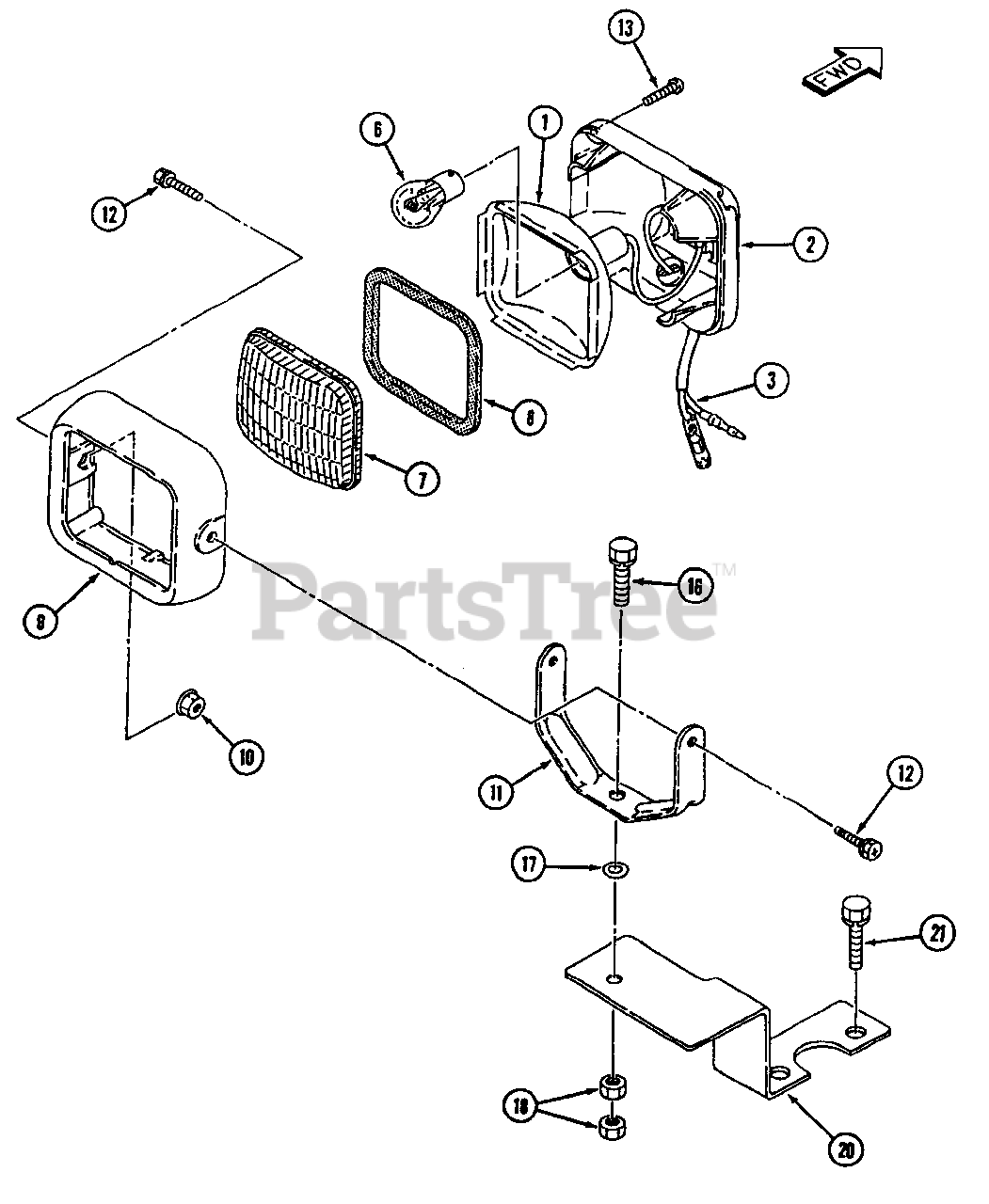

Working Light Parts Diagram

  • Title

Cub Cadet MA-12187742000

Work Lamp

Note: Includes Items 1 - 13

$

$

Not available

Cub Cadet MA-12187743100

Body, Component
(Superseded to MA-12187742000)

Note: Includes Items 1 - 3

$

$

Not available

1

Reflector, Component

$

$

Not available

2

Housing, Component

$

$

Not available

3

Lead, Component

$

$

Not available

6

Cub Cadet MA-09808122304

Bulb

$

$

Not available

7

Cub Cadet MA-12087711100

Lens

$18.99

$

In Stock, only 2 left!

0

8

Cub Cadet MA-12087711300

Gasket

$

$

Not available

9

Rim

$

$

Not available

10

Cub Cadet MA-F3000106000

Nut

$

$

Not available

11

Cub Cadet MA-12087711700

Stay

$

$

Not available

12

Cub Cadet MA-F1040106016

Bolt

$

$

Not available

13

Cub Cadet MA-04322104020

Screw, Tapping

$

$

Not available

16

Cub Cadet MA-F1540108025

Bolt

$

$

Not available

17

Cub Cadet MA-03500140818

Washer

$

$

Not available

18

Cub Cadet MA-A3010108002

Nut

$

$

Not available

20

Cub Cadet MA-12187745AG0

Bracket

$

$

Not available

21

Cub Cadet MA-F1540108012

Bolt

$

$

Not available
