727009 - Ariens High Performance Flange & Blade High Performance 32" Parts Diagram

High Performance Flange & Blade

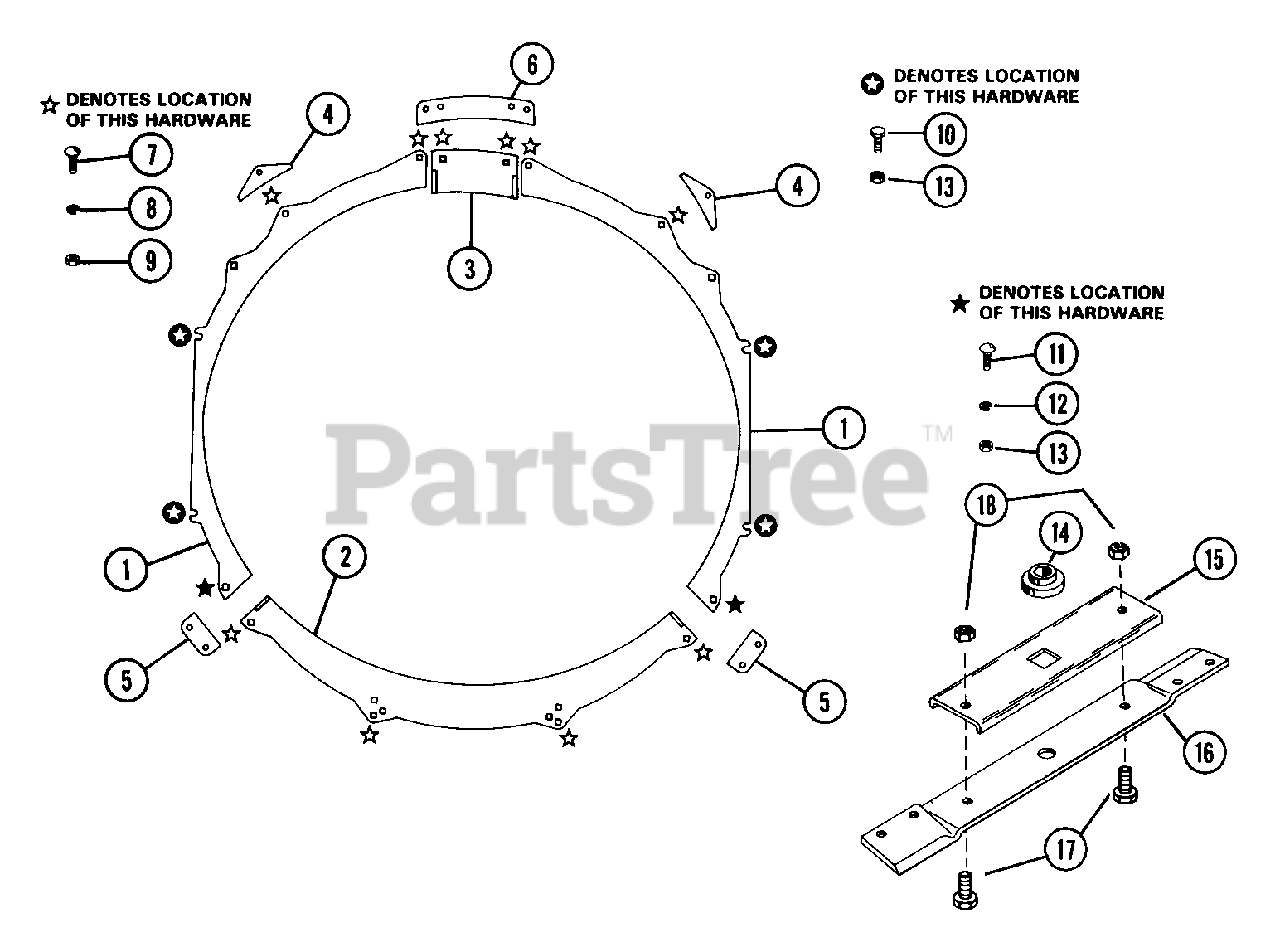

High Performance 32" Parts Diagram

  • Title

1

Ariens 02728100

SIDE FLANGE

$14.99

$

Usually ships in 4-12 days

0

2

Ariens 02727400

BACK FLANGE
(Superseded to 02727459)

$

$

Not available

3

Ariens 02727700

FRONT CLAMP

$

$

Not available

4

Ariens 02727800

SIDE CLAMP

$

$

Not available

5

Ariens 02727600

JOINT CLAMP

$

$

Not available

6

Ariens 02727500

FRONT CLAMP

$

$

Not available

7

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

8

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

9

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, Qty 14

0

13

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 03194600

RETAINER HUB
(Superseded to 03037500)

$73.99

$

In Stock, only 1 left!

0

16

Ariens 02728600

MOWER BLADE 32

$56.99

$

In Stock, only 3 left!

0

17

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

18

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0
