727011 - Ariens 30" High Performance Flange High Performance Flange - 30" Parts Diagram

30" High Performance Flange

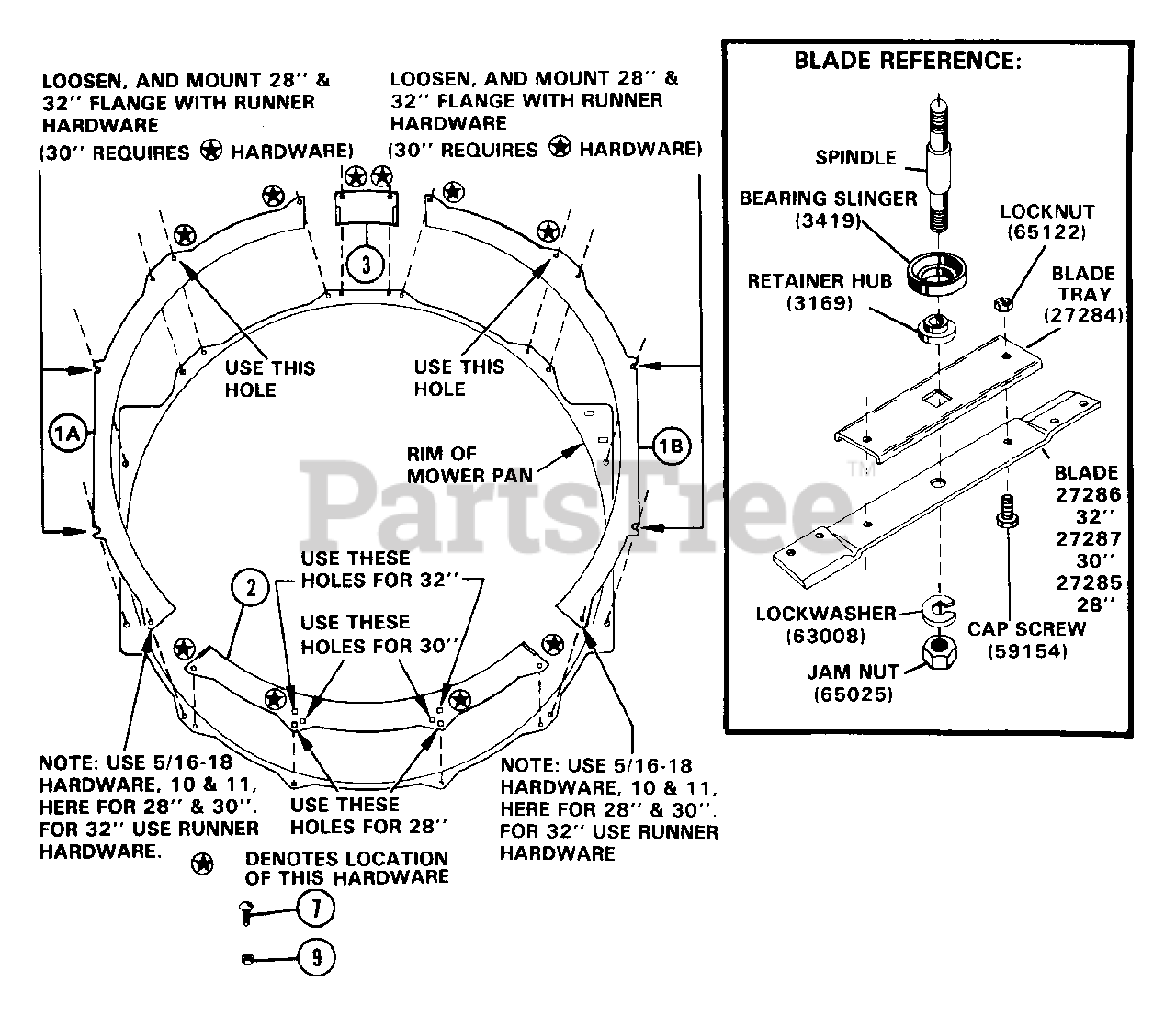

High Performance Flange - 30" Parts Diagram

  • Title
1A

Ariens 02729800

30 IN FLANGE R H

$

$

Not available

1B

Ariens 02729600

30 IN FLANGE L H

$

$

Not available

2

Ariens 02727400

BACK FLANGE
(Superseded to 02727459)

$

$

Not available

3

Ariens 02727700

FRONT CLAMP

$26.99

$

Usually ships in 4-12 days

0

7

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

9

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 5

0

10

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, only 3 left!

0

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0
