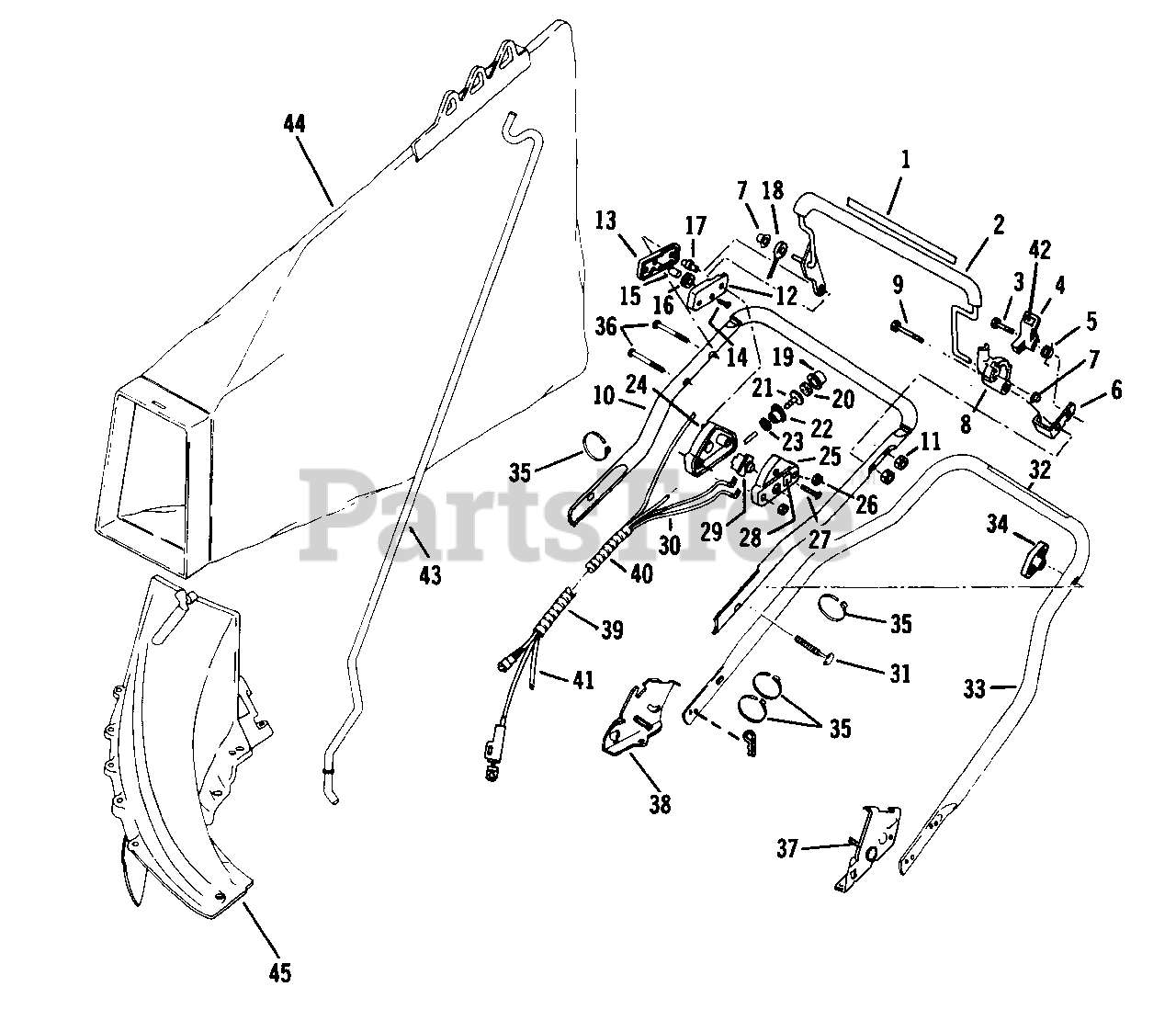

7271 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) HANDLE AND GRASS CATCHER GROUP MODELS: 7271 Parts Diagram

Walk-Behind Mower

HANDLE AND GRASS CATCHER GROUP MODELS: 7271 Parts Diagram

  • Title

+

Lawn-Boy 683171

Control Case Assembly

$

$

Not available

1

Lawn-Boy 611335

Decal-Blade Control

$

$

Not available

2

Lawn-Boy 683166

Control Lever Assembly

$

$

Not available

3

Lawn-Boy 611795

Shoulder Bolt-Latch Lever Mounting

$

$

Not available

4

Lawn-Boy 611790

Stop-Latch Lever

$

$

Not available

5

Lawn-Boy 611793

Spring-Torsion

$

$

Not available

6

Lawn-Boy 611791

Bracket-Bail Stop

$

$

Not available

7

Lawn-Boy 605546

Push Nut
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 16

0

8

Lawn-Boy 611789

Cam-Clutch Control
(Superseded to 684306)

$

$

Not available

9

Lawn-Boy 611792

Shoulder Bolt-Cam Mounting

$27.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 683168

Top Handle and Grip Assembly

$

$

Not available

11

Lawn-Boy 602315

Lock Nut

$4.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 611781

Control Case-Inner
(Superseded to 153702)

$

$

Not available

13

Lawn-Boy 611782

Control Case-Outer

$

$

Not available

14

Lawn-Boy 611381

Screw-Truss Head

$1.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 611542

Pin

$3.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 611195

Pulley
(Superseded to 612564)

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 611541

Column

$12.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 683169

Control Cable Assembly

$

$

Not available

19

Lawn-Boy 611072

Primer Bulb

$

$

Not available

20

Lawn-Boy 611114

Filter

$3.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 607311

Primer Base

$

$

Not available

22

Lawn-Boy 611242

Cup

$

$

Not available

23

Lawn-Boy 608027

Locknut

$1.99

$

In Stock, Qty 6

0

24

Lawn-Boy 611783

Console Right

$

$

Not available

25

Lawn-Boy 611784

Console Left

$

$

Not available

26

Lawn-Boy 611258

Locknut-Hex

$3.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 611543

Screw-Truss Head

$3.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 611794

Decal-"OFF-ON"

$

$

Not available

29

Lawn-Boy 682750

Switch Assembly

$

$

Not available

30

Lawn-Boy 682728

Wire Harness Assembly

$

$

Not available

31

Lawn-Boy 611184

Screw-Folding Handle

$6.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 611316

Decal-Starting Inst.

$

$

Not available

33

Lawn-Boy 607545

Handle-Bottom
(Superseded to 612787)

$

$

Not available

34

Lawn-Boy 607544

Knob-Folding Handle

$22.99

$

In Stock, only 4 left!

0

35

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

$1.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 611780

Screw

$

$

Not available

37

Lawn-Boy 682714

Handle Bracket-L.H.
(Superseded to 683925-03)

$80.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 682715

Handle Bracket-R.H.
(Superseded to 683926-03)

$75.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 609857

Spiral Tubing

$

$

Not available

40

Lawn-Boy 611424

Spiral Tubing

$

$

Not available

41

Lawn-Boy 611452

Tubing-Primer
(Superseded to 611231)

$

$

Not available

42

Lawn-Boy 611334

Decal-Latch Lever

$

$

Not available

43

Lawn-Boy 607561

Rod-Grass Bag

Note: Model 7271 Only

$

$

Not available

44

Lawn-Boy 679966

Bag Assembly

Note: Model 7271 Only

$

$

Not available

45

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Model 7271 Only

$

$

Not available

46

Lawn-Boy 605803

Hair Pin

$

$

Not available
