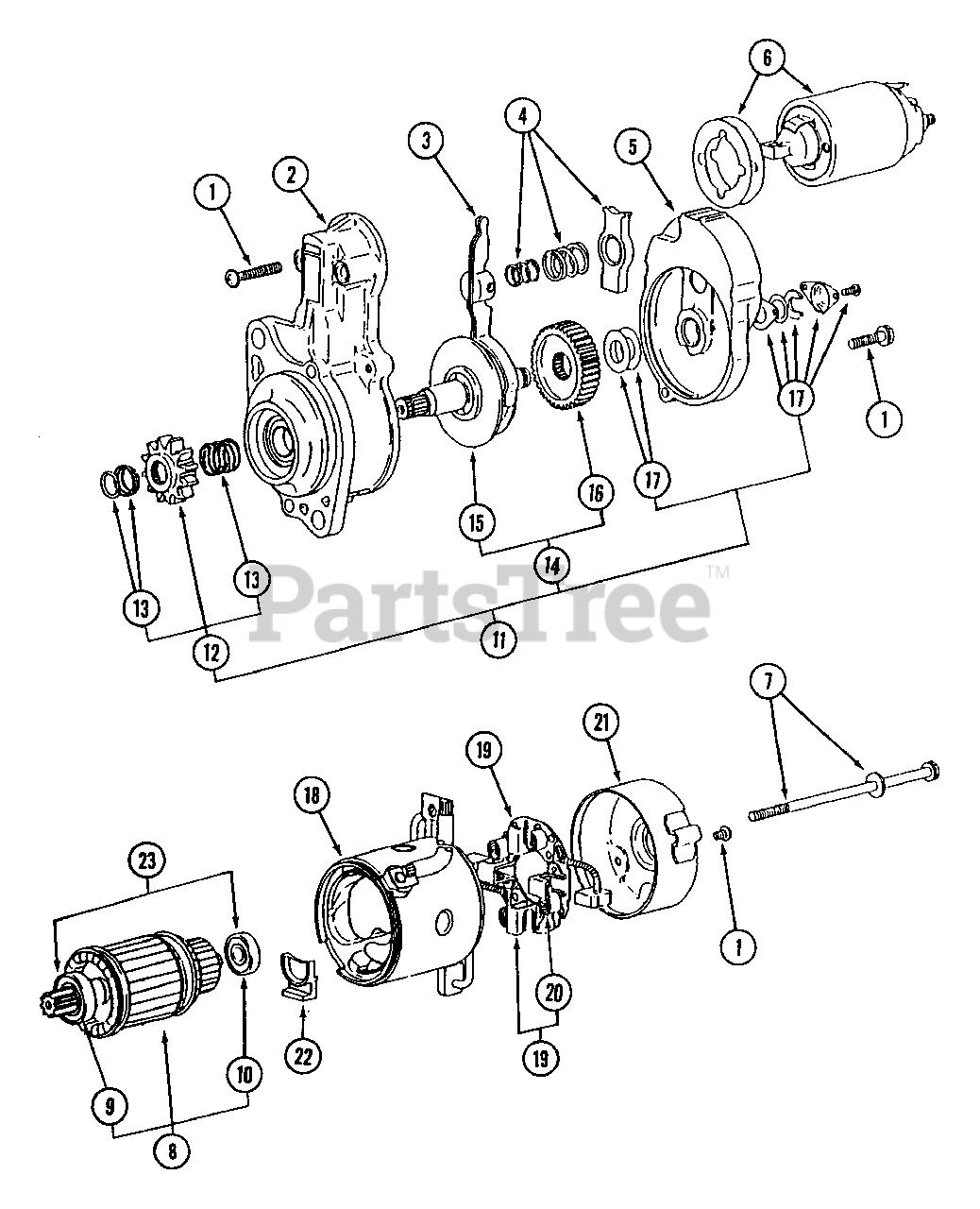

7274 (544-436D100) - Cub Cadet Compact Tractor Starter Parts Diagram

Compact Tractor

Starter Parts Diagram

  • Title

Cub Cadet MA-MM409412

Starter Ass'y.

$

$

Not available

1

Cub Cadet MA-30A66-00200

Screw Set
(Superseded to MA-M414X04871)

$

$

Not available

2

Cub Cadet MA-MM502436

Bracket Ass'y., Front

$

$

Not available

3

Cub Cadet MA-MD607633

Lever Ass'y.

$

$

Not available

4

Cub Cadet MA-MD607446

Spring Set

$

$

Not available

5

Cub Cadet MA-MM502441

Bracket Ass'y., Center

$

$

Not available

6

Cub Cadet MA-MD607634

Switch Ass'y.
(Superseded to MA-M372X00471)

$

$

Not available

7

Cub Cadet MA-30A66-00300

Bolt Set

$

$

Not available

8

Cub Cadet MA-MD607636

Armature Set

$

$

Not available

9

Cub Cadet MA-MD607643

Bearing, Front

$

$

Currently unavailable

10

Cub Cadet MA-MD607638

Bearing, Rear

$

$

Not available

11

Cub Cadet MA-MM502438

Shaft Ass'y., Clutch Set

$

$

Not available

12

Cub Cadet MA-MM502439

Pinion Set

$

$

Not available

13

Cub Cadet MA-ME700124

Stopper Set

$

$

Not available

14

Cub Cadet MA-MM502442

Gear Set

$

$

Not available

15

Cub Cadet MA-MD607642

Shaft Ass'y., Pinion

$

$

Not available

16

Cub Cadet MA-MM502443

Gear

$

$

Not available

17

Cub Cadet MA-ME700125

Cover Set

$

$

Not available

18

Cub Cadet MA-MM502440

Yoke Ass'y.

$370.99

$

Usually ships in 3-6 days

0

19

Cub Cadet MA-ME700127

Holder Ass'y., Brush

$

$

Not available

20

Cub Cadet MA-ME700128

Spring, Brush

$

$

Not available

21

Cub Cadet MA-30A66-00400

Bracket Ass'y., Rear

$

$

Not available

22

Cub Cadet MA-MM502444

Packing

$

$

Not available

23

Cub Cadet MA-MM436608

Service Kit, Starter Bearing

$

$

Not available
