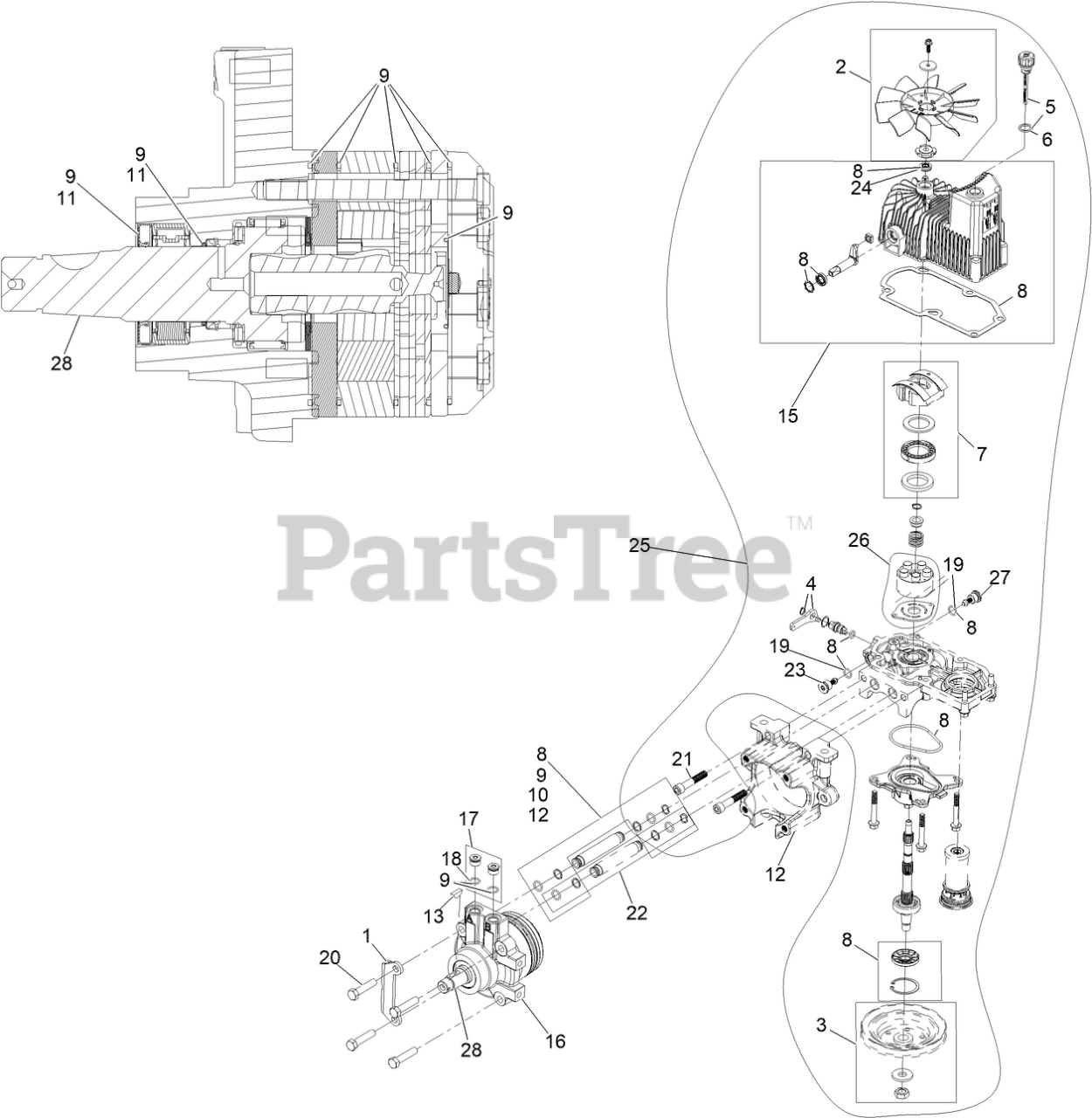

72911 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 415299999) RH Hydro Assembly No. 135-7904 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

RH Hydro Assembly No. 135-7904 Parts Diagram

  • Title

1

Toro 135-7827

PLATE, HORSE SHOE MOUNT

$37.99

$

In Stock, only 2 left!

0

2

Toro 142-3603

KIT, 7.8 IN FAN

$132.99

$

In Stock, Qty 15

0

3

Toro 116-0234

PULLEY KIT

$188.99

$

In Stock, only 3 left!

0

4

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

5

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

$56.99

$

In Stock, Qty 8

0

6

Toro 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 4 left!

0

7

Toro 116-1367

SWASH BLOCK KIT

$611.99

$

Usually ships in 3-6 days

0

8

Toro 142-3604

KIT, PUMP SEAL

$183.99

$

In Stock, Qty 10

0

9

Toro 116-1369

MOTOR SEAL KIT

$300.99

$

In Stock, only 1 left!

0

10

Toro 116-1370

TUBE SEAL KIT

$37.99

$

In Stock, only 4 left!

0

11

Toro 116-1371

OUTPUT SHAFT SEAL KIT

$168.99

$

Usually ships in 3-6 days

0

12

Toro 116-5469

NOSE CUP-UHT

$322.99

$

In Stock, only 1 left!

0

13

Toro 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

15

Toro 142-4461

KIT, HOUSING-HYDRO RH

$809.99

$

Usually ships in 3-6 days

0

16

Toro 116-8916

MOTOR-HYDRAULIC RH 240CC

$1845.99

$

In Stock, only 1 left!

0

17

Toro 116-7901

MAGNETIC PLUGS SERVICE KIT

$123.99

$

Usually ships in 3-6 days

0

18

Toro 76-1900

O-RING

$4.99

$

Usually ships in 3-6 days

0

19

Toro 116-8662

O-RING-CHECK VALVE

$3.49

$

Usually ships in 3-6 days

0

20

Toro 116-8974

SCREW HH

$5.99

$

In Stock, only 3 left!

0

21

Toro 116-8975

SCREW-HSH

$11.99

$

In Stock, only 3 left!

0

22

Toro 116-9922

HYDRAULIC TUBE KIT

$179.99

$

In Stock, only 1 left!

0

23

Toro 126-7466

SHOCK VALVE, 12CC HYDRO

$114.99

$

Usually ships in 3-6 days

0

24

Toro 126-7711

SEAL-FAN DRIVE

$28.99

$

In Stock, Qty 5

0

25

Toro 142-3608

KIT, PUMP SECTION 12CC RH

$2095.99

$

Usually ships in 3-6 days

0

26

Toro 142-4500

KIT - 12CC PORT PLATE,ROTATE GRP

$524.99

$

Usually ships in 3-6 days

0

27

Toro 142-4459

SHOCK VALVE ORIFICED 3800

$135.99

$

Usually ships in 3-6 days

0

28

Toro 146-3749

OUTPUT SHAFT- TL UHT MOTOR

$418.99

$

Usually ships in 3-6 days

0

99

Toro 116-1373

FLOW TEST KIT

Note: Not illustrated

$1410.99

$

Usually ships in 3-6 days

0

99

Toro 116-4245

PULLER-PULLEY

Note: Not illustrated

$289.99

$

Usually ships in 3-6 days

0
