72923 (5000) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 418003505 - 999999999) Caster Fork and Wheel Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

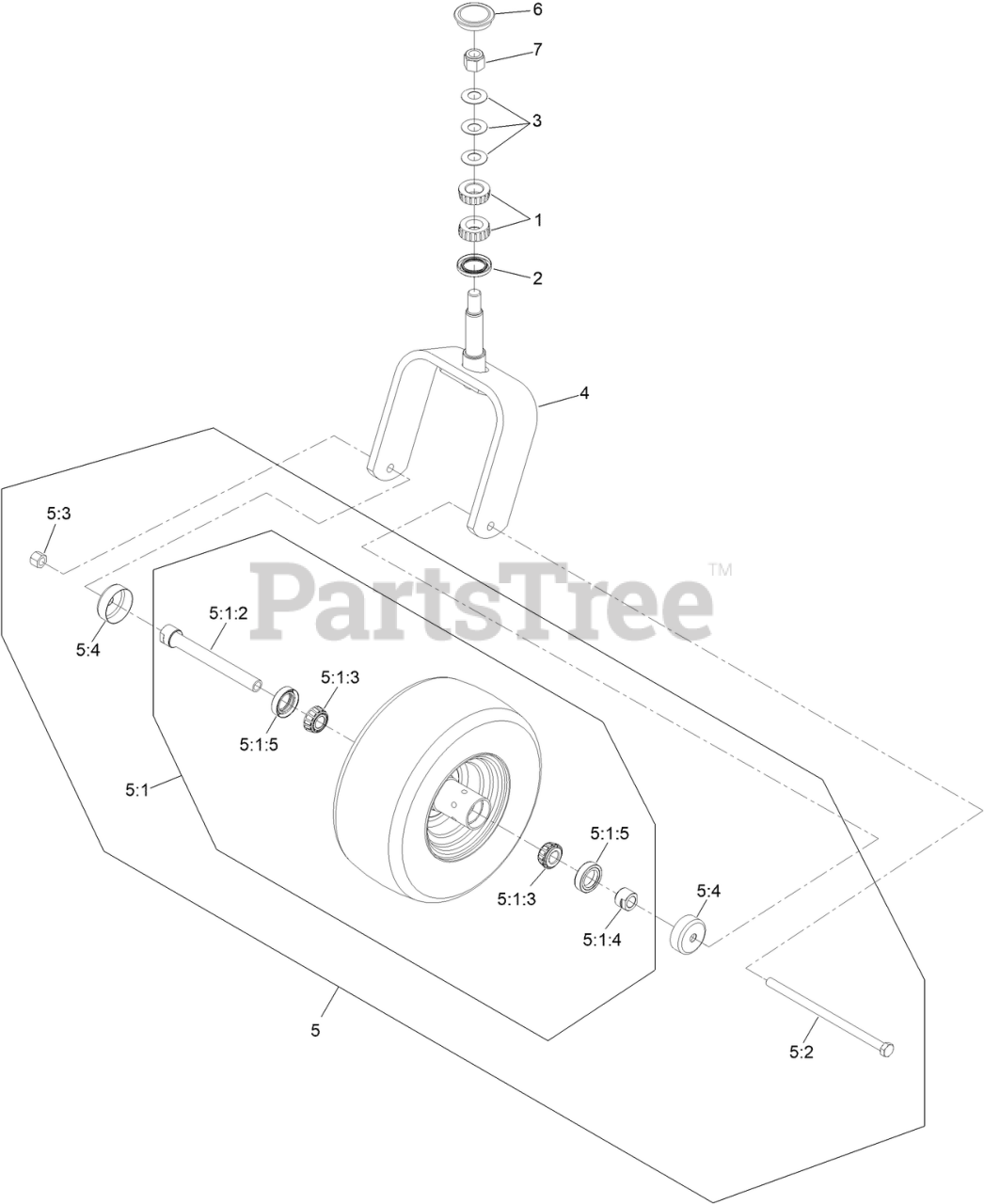

Caster Fork and Wheel Assembly Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

2

Toro 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

3

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

4

Toro 116-6707-01

See Supercession: 116-8888
(Superseded to 116-8888)

$202.99

$

In Stock, Qty 20+

0

5

Toro 163-3469

ASM-SEMI PNEUMATIC 13X6.50-6

$289.99

$

Usually ships in 3-6 days

0

5:1

ASM WHL/BRGS 13X6.50-6

Note: Not serviced separately

$

$

Not available

5:1:2

Toro 126-5361

AXLE CASTER ASM

$21.99

$

In Stock, Qty 11

0

5:1:3

Toro 1-633585

BEARING-CONE, TAPER

$23.99

$

In Stock, Qty 20+

0

5:1:4

Toro 146-3933

SPACER-NUT

$

$

Currently unavailable

5:1:5

Toro 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

5:2

Toro 325-39

SCREW-HH

$19.99

$

In Stock, Qty 8

0

5:3

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

5:4

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

6

Toro 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0
