72947 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412413875 - 412999999) Electrical Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

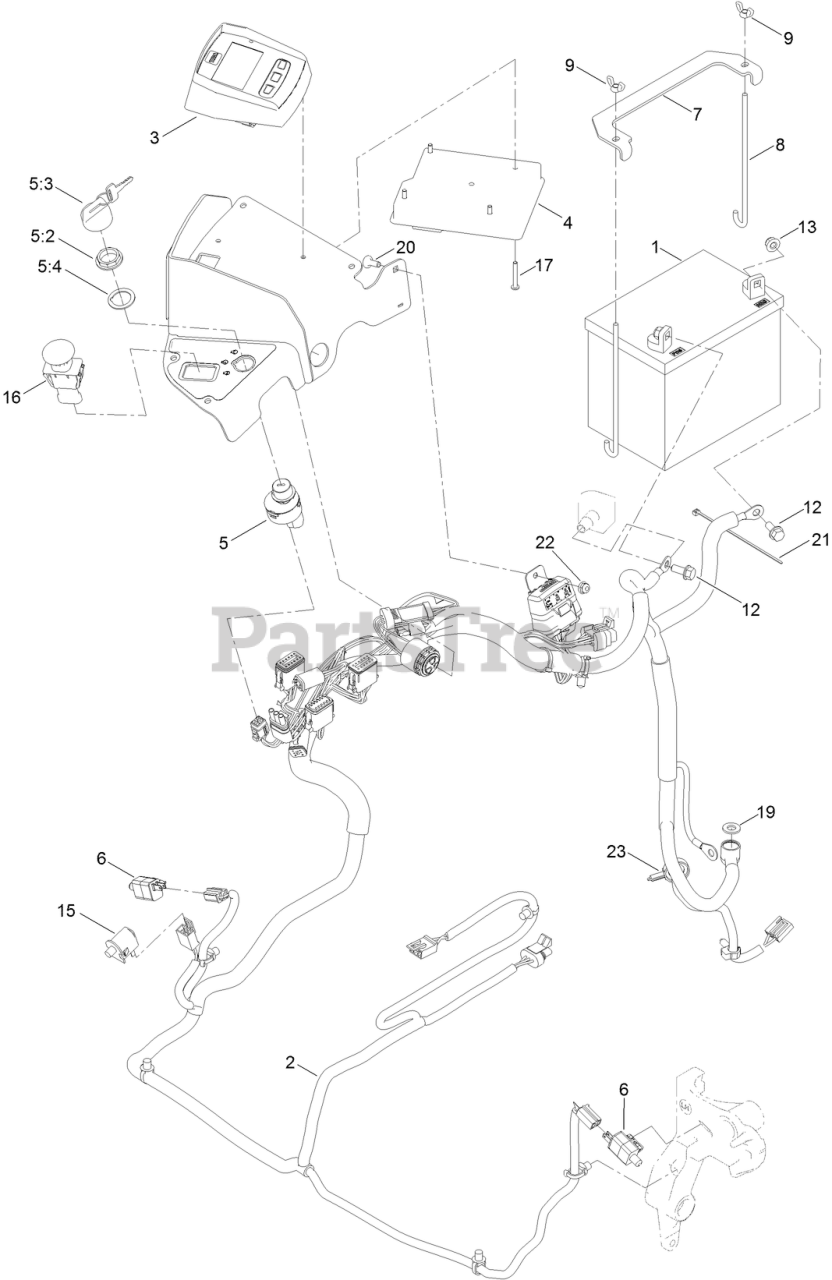

Electrical Assembly Parts Diagram

  • Title

1

BATTERY (340 CCA, WET)

Note: Not serviced separately

$

$

Not available

1

BATTERY (340 CCA, WET)

Note: Obtain locally.

$

$

Not available

2

Toro 142-7959

HARNESS-WIRE

$571.99

$

Usually ships in 3-6 days

0

3

Toro 126-9976

MODULE-HORIZON

$616.99

$

Usually ships in 3-6 days

0

4

Toro 135-3427

MODULE-MCU

$409.99

$

Usually ships in 3-6 days

0

5

Toro 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 20+

0

5:2

Toro 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 3 left!

0

5:3

Toro 106-5270

IGNITION KEY SET

$23.99

$

In Stock, Qty 20+

0

5:4

Toro 108-8659

WASHER-BACKUP

$15.99

$

In Stock, only 1 left!

0

6

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$23.99

$

In Stock, only 2 left!

0

8

Toro 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 11

0

9

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 6

0

12

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

16

Toro 126-6187

SWITCH-PTO, SEALED

$58.99

$

In Stock, Qty 20+

0

17

Toro 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

21

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0
