72969 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 999999999) Engine Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

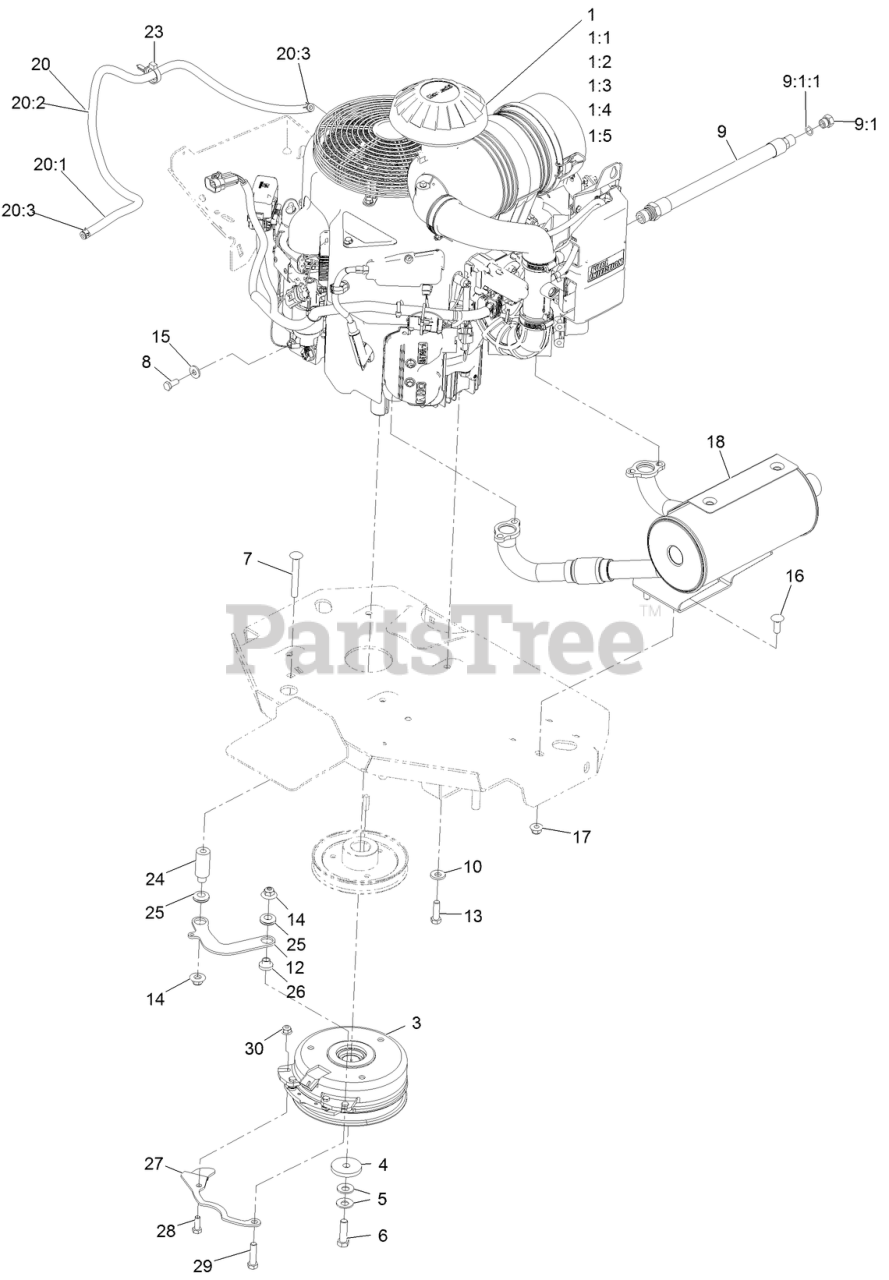

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI FX850V_S49-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI FX850V_S49-R

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:1

KAWASAKI 49065-2078 ENGINE OIL FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:1

KAWASAKI 49065-2078 ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

1:2

KAWASAKI 92070-7004 PLUG-SPARK BPR4ES

Note: Not serviced separately

$

$

Not available

1:2

KAWASAKI 92070-7004 PLUG-SPARK BPR4ES

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:3

KAWASAKI 49019-0031 FUEL FILTER

Note: Not serviced separately

$

$

Not available

1:3

KAWASAKI 49019-0031 FUEL FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:4

KAWASAKI 11013-7039 SAFETY FILTER

Note: Not serviced separately

$

$

Not available

1:4

KAWASAKI 11013-7039 SAFETY FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:5

KAWASAKI 11013-7038 AIR FILTER

Note: Not serviced separately

$

$

Not available

1:5

KAWASAKI 11013-7038 AIR FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

3

Toro 126-4185

CLUTCH KIT

$771.99

$

Usually ships in 3-6 days

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

7

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$36.99

$

In Stock, Qty 9

0

9:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

9:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

In Stock, only 1 left!

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

16

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, only 2 left!

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 135-5500

MUFFLER, FX850/801 FLEX
(Superseded to 135-7562)

$391.99

$

In Stock, Qty 7

0

20

Toro 117-3893

FUEL LINE ASM

$47.99

$

Usually ships in 3-6 days

0

20:1

Toro 109-0273

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

20:2

Toro 117-3892

SLEEVE-THERMAL

$33.99

$

Usually ships in 3-6 days

0

20:3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

23

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

24

Toro 116-3319

SPACER

$25.99

$

In Stock, only 1 left!

0

25

Toro 93-5108

GROMMET-RUBBER

$15.99

$

In Stock, only 1 left!

0

26

Toro 116-3318

SPACER

$19.99

$

In Stock, only 2 left!

0

27

Toro 116-3331-01

BELT-GUIDE

$26.99

$

In Stock, only 1 left!

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
