73-05BF01 (A-60) - Toro 26" Rear-Engine Riding Mower (1977) RIDING MOWER Parts Diagram

26" Rear-Engine Riding Mower

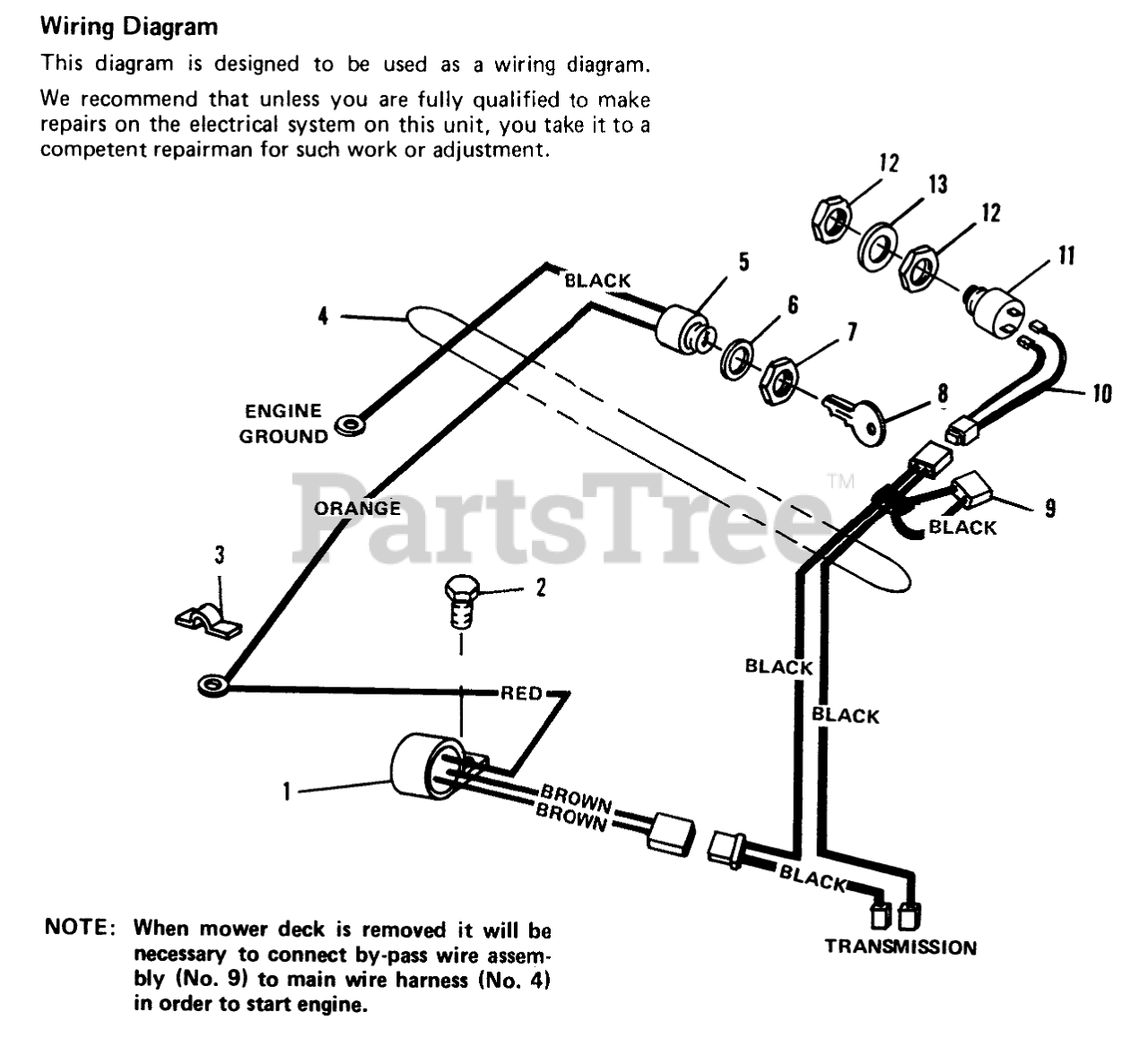

RIDING MOWER Parts Diagram

  • Title

1

Toro 225121

Cup-Starter

$

$

Not available

2

Toro 9265654

Screw, No.10-32 x 1/2 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

3

Toro 225103

Press Clip

$

$

Not available

4

Toro 225605

Wire Harness

$

$

Currently unavailable

5

Toro 225604

Switch, Ignition

$

$

Currently unavailable

6

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

7

Toro 225620

Nut (Ignition Switch Part)

$

$

Currently unavailable

8

Toro 225573

Key, Ignition

$

$

Currently unavailable

9

Toro 225634

Wire Assembly, By-Pass

$

$

Currently unavailable

10

Toro 0225109

Wire Assembly, Deck Switch

$

$

Currently unavailable

11

Toro 1225097

Switch, Lockout

$

$

Currently unavailable

12

Toro 225398

Nut (Switch Part)

$

$

Currently unavailable

13

Toro 225399

Lockwasher (Switch Part)

$

$

Currently unavailable

72

Toro 803689

Tag, Warranty (Not Illustr.)

$

$

Currently unavailable
