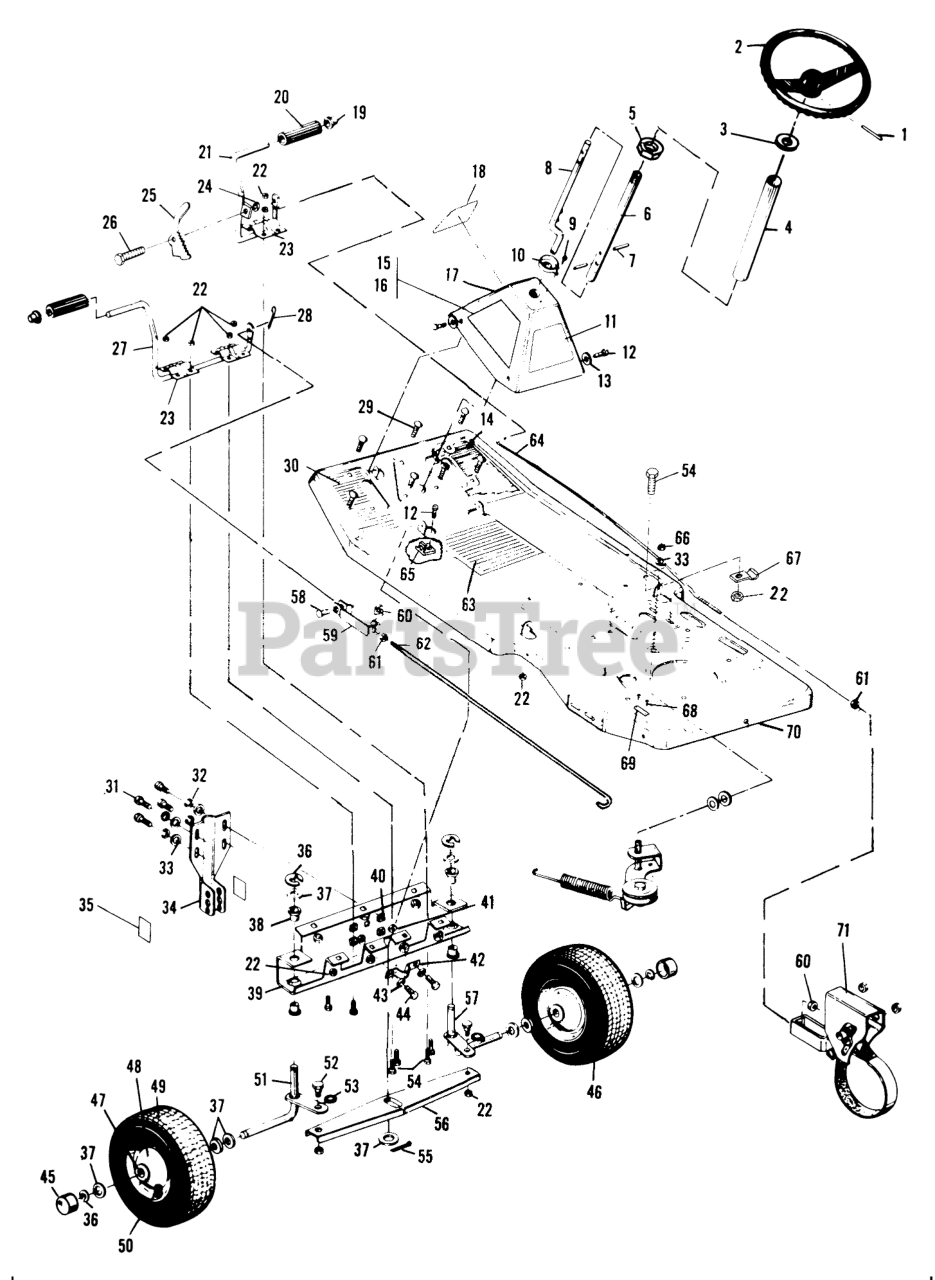

73-05BF01 (A-60) - Toro 26" Rear-Engine Riding Mower (1977) RIDING MOWER Parts Diagram

26" Rear-Engine Riding Mower

RIDING MOWER Parts Diagram

  • Title

1

Toro 933222

Roll Pin

$

$

Currently unavailable

2

Toro 225146

Steering Wheel

$

$

Not available

3

Toro 225433

Washer, Plastic

$

$

Not available

4

Toro 225408

Housing, Steering Tube

$

$

Not available

5

Toro 225434

Nut, Speed

$

$

Not available

6

Toro 225637

Tube, Steering

$

$

Not available

7

Toro 225487

Pin, Spiral

$

$

Not available

8

Toro 225266

Shaft, Steering

$

$

Not available

9

Toro 9265654

Screw, No.10-32 x 1/2 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

10

Toro 225271

Bushing, Steering Tube

$

$

Not available

11

Toro 225622

DecaI, Instruction

$

$

Currently unavailable

12

Toro 926487-4

Screw, Taptite, 1/4-20 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

13

Toro 920081-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

14

Toro 225621

Pad, Footrest, Right

$

$

Currently unavailable

15

Toro 225446

Decal, Console, R.H .

$

$

Currently unavailable

16

Toro 225447

Decal, Console, L.H.

$

$

Not available

17

Toro 225351

Quadrant

$

$

Currently unavailable

18

Toro 225448

Decal, Console, Front

$

$

Currently unavailable

19

Toro 225324

Speed Nut, Push

$

$

Not available

20

Toro 225325

Pad, PedaI

$

$

Not available

21

Toro 225630

Arm, Brake Pedal

$

$

Currently unavailable

22

Toro 915112-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

23

Toro 225263

Bracket, Pedal Rod

$

$

Currently unavailable

24

Toro 915111-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

25

Toro 225607

Latch, Parking Brake

$

$

Currently unavailable

26

Toro 225600

Shoulder Bolt

$

$

Currently unavailable

27

Toro 225269

Arm, Clutch Pedal

$

$

Not available

28

Toro 9347614

Cotter Pin, 3/32 x 3/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

29

Toro 9000364

Carriage Bolt, 5/16-18 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

30

Toro 225411

Pad, Footrest, Left

$

$

Not available

31

Toro 9080344

Bolt Hex. 3/8-16 x 1

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

32

Toro 9200834

Lockwasher, Split, 3/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

33

Toro 9200094

Washer
(Superseded to 3256-24)

Note: Standard Hardware Items-May Be Purchased Locally.

$0.99

$

In Stock, Qty 20+

0

34

Toro 225618

Bracket, Deck Hanger

$

$

Currently unavailable

35

Toro 225467

Decal, Deck Hanger

$

$

Currently unavailable

36

Toro 225021

"E" Ring

$

$

Not available

37

Toro 225008

Flatwasher, 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Not available

38

Toro 225262

Bushing, Spindle

$

$

Not available

39

Toro 225289

Bracket, Front Axle

$

$

Currently unavailable

40

Toro 225321

Nut, Speed Grip, 3/8-16 Thd

$

$

Currently unavailable

41

Toro 225603

Nut, Speed Grip, 5/16-18 Thd

$

$

Currently unavailable

42

Toro 225152

"U" Bracket

$

$

Not available

43

Toro 9200824

Washer-Lock
(Superseded to 325-34)

Note: Standard Hardware Items-May Be Purchased Locally.

$3.99

$

In Stock, only 4 left!

0

44

Toro 9080324

Screw, Hex Hd, 5/16-18 x 3/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

45

Toro 225087

Hub Cap

$

$

Not available

46

Toro 225422

Wheel & Tire Assy, Front, Complete Includes Items 43, 44, 45 & 46

$

$

Not available

47

Toro 225366

Bushing

$

$

Not available

48

Toro 225426

Wheel with Bearings

$

$

Not available

49

Toro 225367

Tire, 4.10-3.50 x 4

$

$

Not available

50

Toro 225031

Valve Stem

$

$

Not available

51

Toro 225279

Spindle, Steering Left

$

$

Not available

52

Toro 225028

Shoulder Bolt

$

$

Not available

53

Toro 225007

Washer, Spring

$

$

Not available

54

Toro 9080164

Screw, Hex Hd, 5/16-18 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

55

Toro 934826-4

Cotter Pin, 3/16 x 1 1/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

56

Toro 225283

Link, Steering

$

$

Not available

57

Toro 225278

Spindle, Steering Right

$

$

Not available

58

Toro 225602

Pin, Clevis

$

$

Currently unavailable

59

Toro 225633

Clevis

$

$

Currently unavailable

60

Toro 9151824

Nut, Square, 1/4-20 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

61

Toro 9159684

Nut, Hex, 1/4-20 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

62

Toro 225639

Rod, Clutch

$

$

Currently unavailable

63

Toro 225409

Pad, Footrest Center

$

$

Currently unavailable

64

Toro 225632

Rod, Brake

$

$

Currently unavailable

65

Toro 225619

Clip, Reinforcement

$

$

Currently unavailable

66

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

67

Toro 225610

Bracket, Rod Support

$

$

Currently unavailable

68

Toro 225479

Drive Screw, No. 6 x 5/16 In.

$

$

Not available

69

Toro 804016

Plate, Model Number

$

$

Currently unavailable

70

Toro 225606

Main Frame

$

$

Currently unavailable

71

Toro 225363

Brake, Assembly, Complete

$

$

Not available

72

Toro 803689

Tag, Warranty (Not Illustr.)

$

$

Currently unavailable
