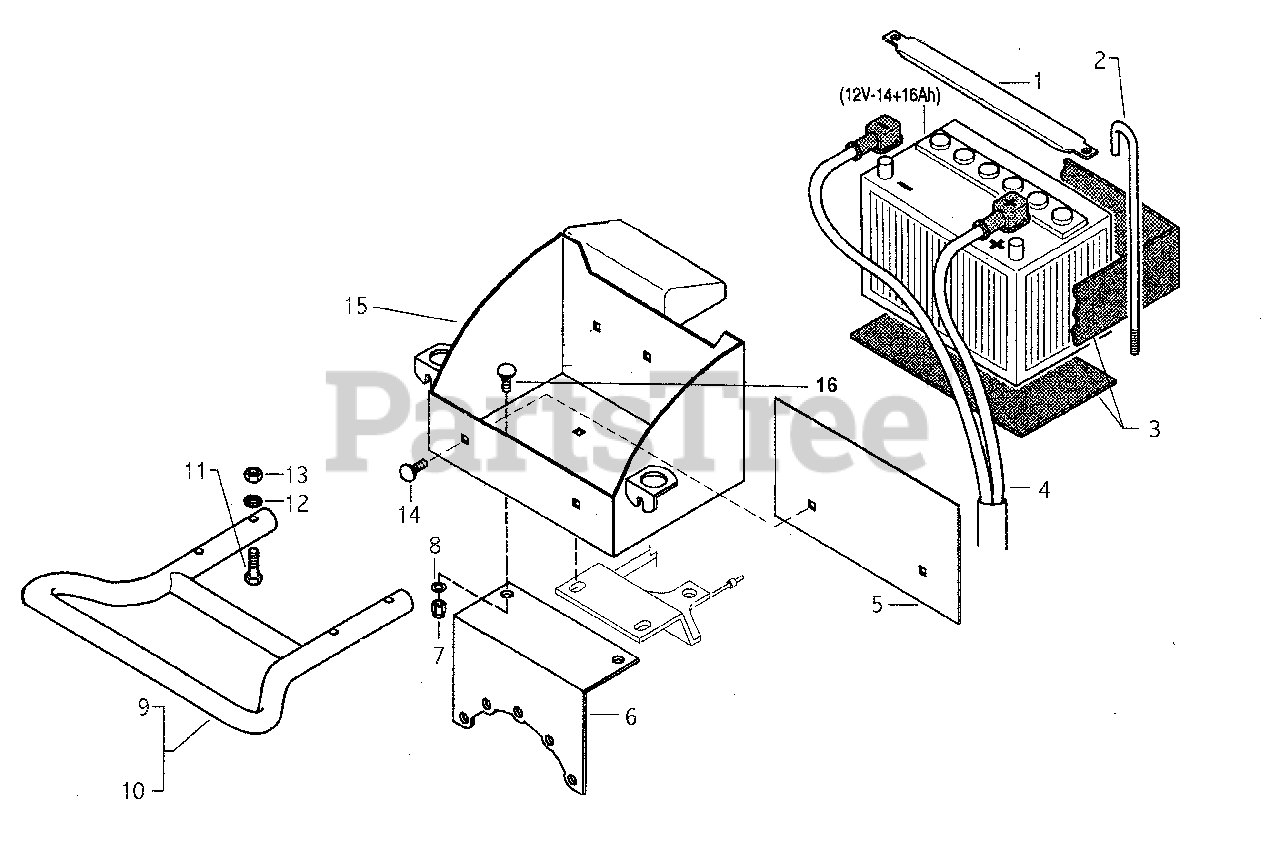

730 - BCS America Two-Wheeled Tractor Electric Start & Bumper (SN: 124664 & Above) Parts Diagram

Two-Wheeled Tractor

Electric Start & Bumper (SN: 124664 & Above) Parts Diagram

  • Title

1

BCS America 561.19937

BATTERY BRACKET

$32.99

$

Usually ships in 5-8 days

0

2

BCS America 561.57387

BATTERY TIEROD

$16.99

$

Usually ships in 5-8 days

0

3

BCS America 580.57397

BATTERY PADS

$

$

Currently unavailable

4

BCS America 58047460

ELECTRIC START CABLES

$106.99

$

Usually ships in 5-8 days

0

5

BCS America 561.57398

PLATE

$25.99

$

Usually ships in 5-8 days

0

6

BCS America 561.57393

PLATE

$52.99

$

Usually ships in 5-8 days

0

7

BCS America 31241060

NUT

$0.99

$

In Stock, Qty 8

0

8

BCS America 314.11064

WASHER

$0.99

$

In Stock, only 2 left!

0

9

BCS America 590.56053

BUMPER, INTEK ENGINES

$251.99

$

Usually ships in 5-8 days

0

10

BCS America 590.56053

BUMPER, KOHLER CS PRO 8.5, 12HP

$251.99

$

Usually ships in 5-8 days

0

11

BCS America 311.12156

SCREW M8X60

$1.99

$

Usually ships in 5-8 days

0

12

BCS America 314.11084

FLAT WASHER 8.4

$0.99

$

In Stock, only 4 left!

0

13

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

14

BCS America 311.21558

BOLT

$1.49

$

In Stock, Qty 5

0

15

BCS America 59057390

BATTERY SUPPORT KOHLER CS PRO

$156.99

$

Usually ships in 5-8 days

0

16

BCS America 31121558

BOLT

$1.49

$

In Stock, Qty 5

0
