7304 (54AD741-100) - Cub Cadet Compact Tractor Three Point Hitch Parts Diagram

Compact Tractor

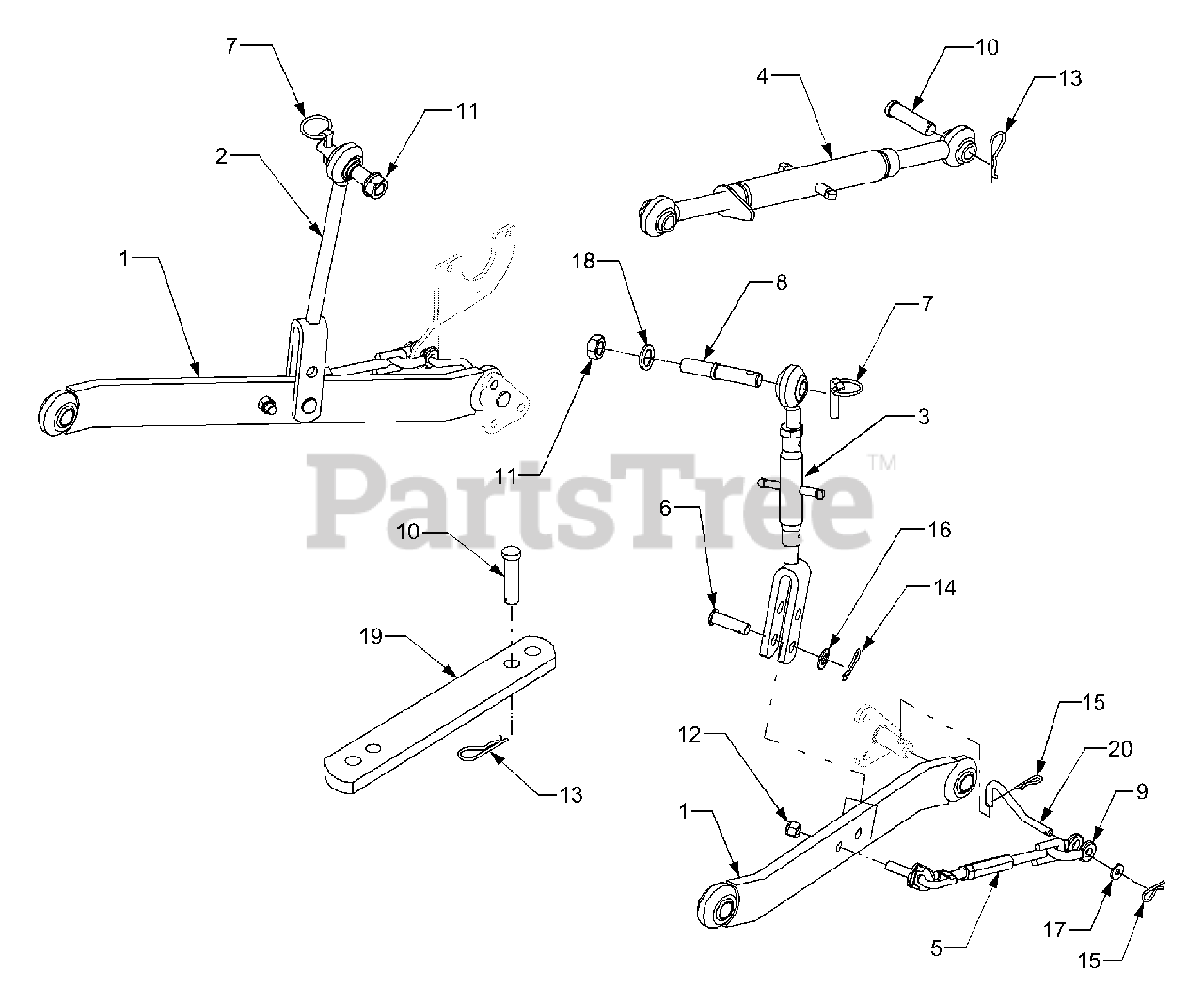

Three Point Hitch Parts Diagram

  • Title

1

Cub Cadet 603-0750

Link, Lower Hitch
(Superseded to 603-0750-0637)

Variations

Cub Cadet 603-0750-0637

LINK ASSY-LOWER HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-0756

Link, Lift - Fixed

$

$

Not available

3

Cub Cadet 603-0757

Link, Lift - Adjustable
(Superseded to 903-0757)

$

$

Not available

4

Cub Cadet 603-0765

Link, Upper Center

$188.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0933

Chain Assembly, Check

$90.99

$

In Stock, only 2 left!

0

6

Cub Cadet 711-0174

Pin, Clevis, .624 Dia

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-1105

Pin, Klik, 1.75 Lg.

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 711-1432

Pin, Upper Lift Arm

$

$

Not available

9

Cub Cadet 711-1622

'U' Clevis, Check Chain

$

$

Not available

10

Cub Cadet 711-1648

Pin, Clevis, .75 x 2.75

$

$

Not available

11

Cub Cadet 712-0301

Nut, Hex, 3/4-10 GR5

$8.49

$

In Stock, only 1 left!

0

12

Cub Cadet 712-3058

Nut, Hex Insert Lock, 1/2-20
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 18

0

13

Cub Cadet 714-0117

Pin, Internal Cotter, .148 x 3.0

$4.49

$

In Stock, Qty 15

0

14

Cub Cadet 714-0147

Pin, Internal Cotter, .125 x 1.75

$5.49

$

In Stock, Qty 6

0

15

Cub Cadet 714-0149B

Pin, Internal Cotter

$4.99

$

In Stock, Qty 5

0

16

Cub Cadet 736-0156

Washer, Flat, .635 x 1.12 x .09

$4.99

$

In Stock, Qty 11

0

17

Cub Cadet 736-0262

Washer, Flat, .385 x .87 x .09

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0364

Washer, Lock, 3/4
(Superseded to 936-0364)

$

$

Not available

19

Cub Cadet 703-3553

Bar, Draw

Variations

Cub Cadet 703-3553-0637

USE 703-3553 DRAWBAR - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 747-04014

Pin, Double Clevis

$

$

Not available
