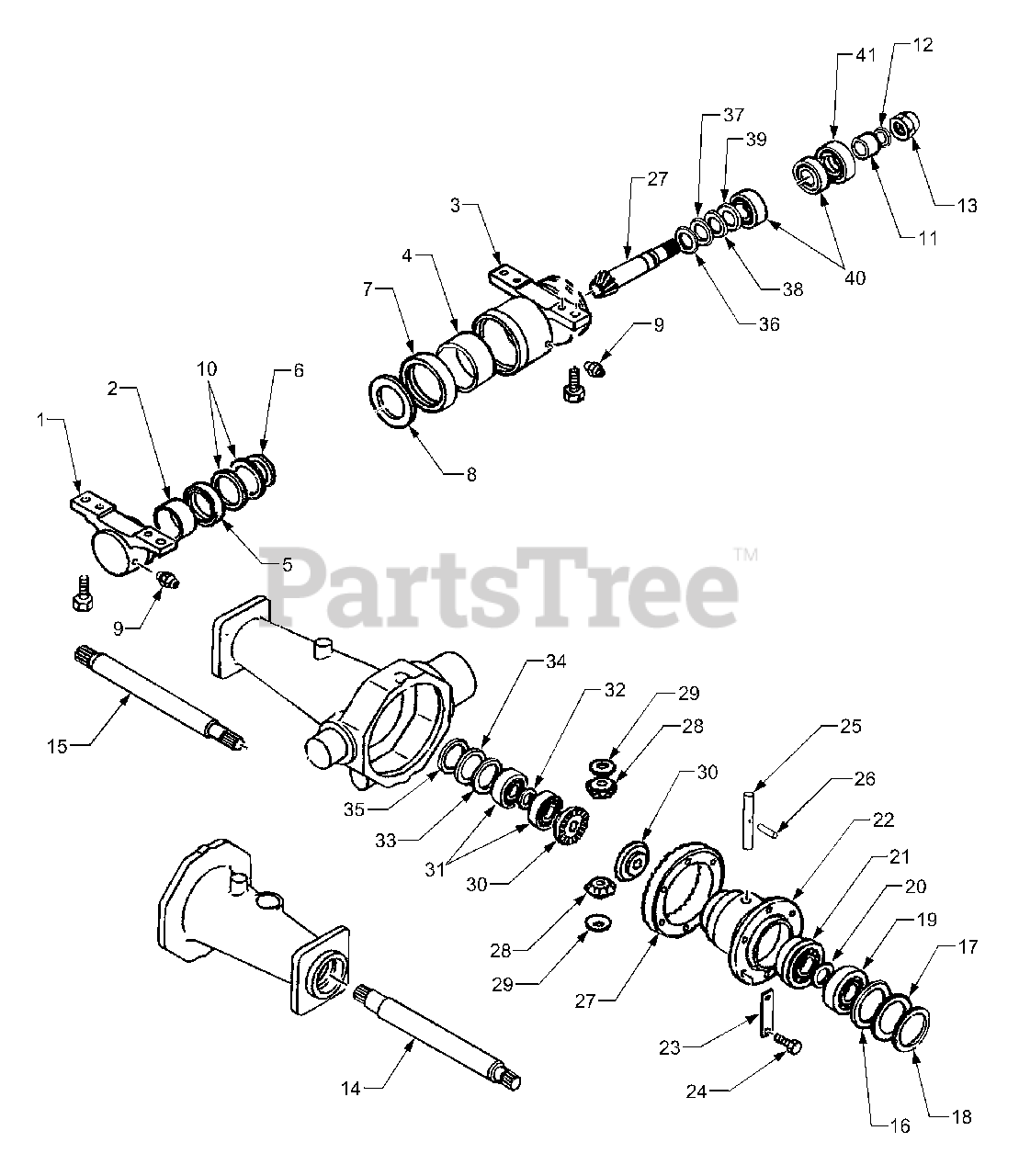

7304 (54BT741-100) - Cub Cadet Compact Tractor Axle Assembly - 4WD (Part 2) Parts Diagram

Compact Tractor

Axle Assembly - 4WD (Part 2) Parts Diagram

  • Title

1

Cub Cadet IM-322017890

Mtg. Bracket, Axle Front

Note: Includes Ref. No. 2

$

$

Not available

2

Cub Cadet IM-398510090

Bushing

$

$

Not available

3

Cub Cadet IM-322017900

Mtg. Bracket, Axle Rear

Note: Includes Ref. No. 4

$

$

Not available

4

Cub Cadet IM-398510450

Bushing

$

$

Not available

5

Cub Cadet IM-050301140

Seal, Oil

$

$

Not available

6

Cub Cadet IM-399261550

Washer, Thrust

$

$

Not available

7

Cub Cadet IM-050309056

Seal, Oil

$

$

Not available

8

Cub Cadet IM-399261580

Washer, Thrust
(Superseded to IM-399261980)

$

$

Not available

9

Cub Cadet IM-060620000

Fitting, Grease

$

$

Not available

10

Cub Cadet IM-395910030

Shim Kit, Service Only

$

$

Not available

11

Cub Cadet IM-399234160

Collar

$

$

Not available

12

Cub Cadet IM-052100210

O-Ring

$

$

Not available

13

Cub Cadet IM-020109079

Nut

$

$

Not available

14

Cub Cadet IM-326211011

Shaft, Differential LH

$

$

Not available

15

Cub Cadet IM-326211021

Shaft, Differential RH

$

$

Not available

16

Cub Cadet IM-199280630

Shim, 0.1T

$

$

Not available

17

Cub Cadet IM-199280640

Shim, 0.2T

$

$

Not available

18

Cub Cadet IM-199280650

Shim, 0.5T

$

$

Not available

19

Cub Cadet IM-040106305

Bearing, Ball

$

$

Not available

20

Cub Cadet IM-399211140

Spacer

$

$

Not available

21

Cub Cadet IM-040156305

Bearing, Ball

$

$

Not available

22

Cub Cadet IM-326110490

Housing, Differential

$

$

Not available

23

Cub Cadet IM-399310150

Plate, Locking

$

$

Not available

24

Cub Cadet IM-010110816

Bolt, M8 x 16

$

$

Not available

25

Cub Cadet IM-326130160

Shaft, Pinion

$

$

Not available

26

Cub Cadet IM-030300540

Pin, Spring

$

$

Not available

27

Cub Cadet IM-322050621

Gear Set, Ring and Pinion

$

$

Not available

28

Cub Cadet IM-326160060

Gear, Pinion

$

$

Not available

29

Cub Cadet IM-399261070

Washer, Thrust

$

$

Not available

30

Cub Cadet IM-326140200

Gear, Differential

$

$

Not available

31

Cub Cadet IM-040106304

Bearing, Ball

$

$

Not available

32

Cub Cadet IM-399211130

Spacer

$

$

Not available

33

Cub Cadet IM-199281030

Shim, 0.1T

$

$

Not available

34

Cub Cadet IM-199281040

Shim, 0.2T

$

$

Not available

35

Cub Cadet IM-199281050

Shim, 0.5T

$

$

Not available

36

Cub Cadet IM-399260530

Washer, Thrust

$

$

Not available

37

Cub Cadet IM-199281240

Shim, 0.1T

$

$

Not available

38

Cub Cadet IM-199281250

Shim, 0.2T

$

$

Not available

39

Cub Cadet IM-199280430

Shim, 0.5T

$

$

Not available

40

Cub Cadet IM-042530205

Bearing, Tapered Roller

$

$

Not available

41

Cub Cadet IM-050209004

Seal, Oil

$

$

Not available
