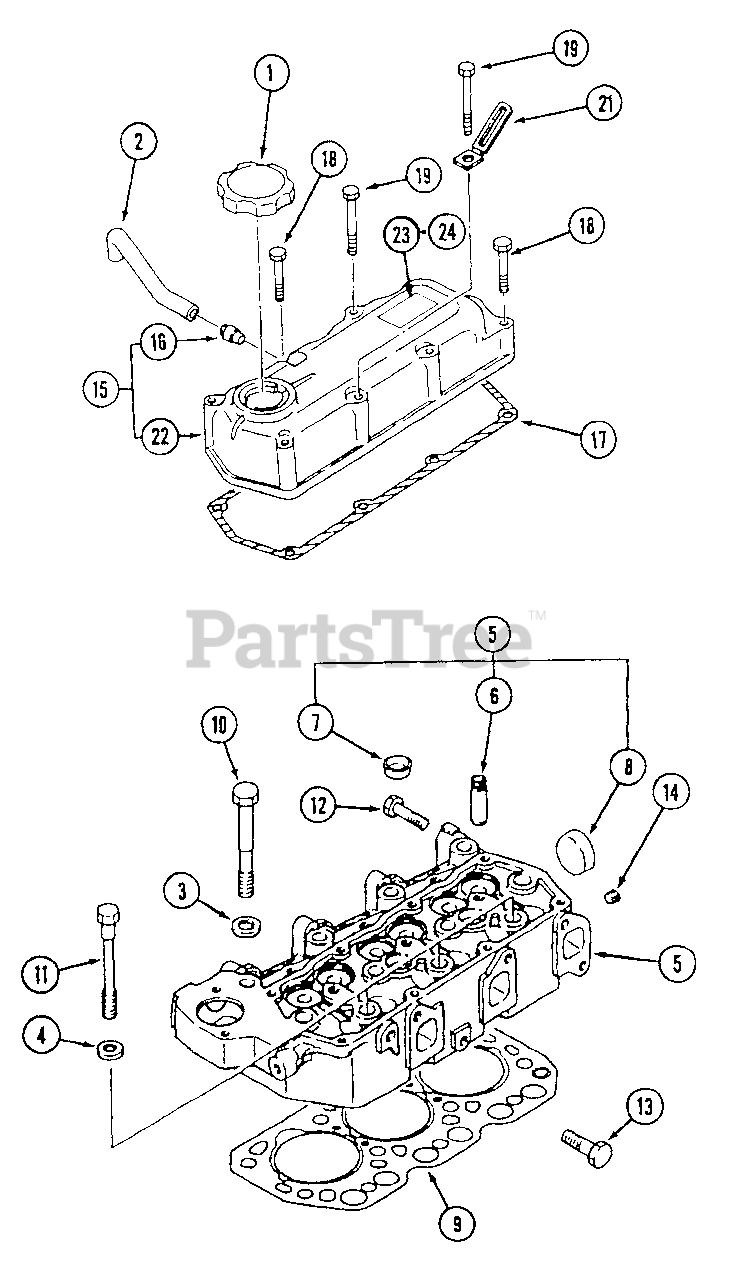

7305 (54A-447D100) - Cub Cadet Compact Tractor Cylinder Head HST 30 HP Eng (7300 SN 21932-Lower/7305 SN 23069-Lower) Parts Diagram

Compact Tractor

Cylinder Head HST 30 HP Eng (7300 SN 21932-Lower/7305 SN 23069-Lower) Parts Diagram

  • Title

1

Cub Cadet MA-MD008784

Cap, Oil Filler

$

$

Not available

2

Cub Cadet MA-MM438850

Pipe, Air Breather

$

$

Not available

3

UNKNOWN

$

$

Not available

4

UNKNOWN

$

$

Not available

5

Cub Cadet MA-30H01-00010

Head Ass'y., Cylinder

$

$

Not available

6

Cub Cadet MA-MM435275

Guide, Valve
(Superseded to MA-30H01-07201)

$37.99

$

In Stock, only 2 left!

0

7

Cub Cadet MA-MF665538

Cap, Sealing
(Superseded to MA-F5014-25000)

$

$

Not available

8

Cub Cadet MA-MD000427

Cap, Sealing
(Superseded to MA-04826-24000)

$

$

Not available

9

Cub Cadet MA-30H01-00300

Gasket, Cylinder Head

$134.99

$

Usually ships in 3-6 days

0

10

Cub Cadet MA-30A01-03300

Bolt, Cylinder Head

$

$

Not available

11

Cub Cadet MA-30A01-03200

Bolt, Cylinder Head

$

$

Not available

12

Cub Cadet MA-MF106091

Bolt

$

$

Not available

13

Cub Cadet MA-MF101316

Bolt

$

$

Not available

14

Cub Cadet MA-MS661140

Plug, Taper

$

$

Not available

15

Cub Cadet MA-30H04-00010

Cover Ass'y.,Rocker

$

$

Not available

16

Cub Cadet MA-K9644171

Pipe
(Superseded to MA-32A04-09100)

$

$

Not available

17

Cub Cadet MA-30H04-00100

Gasket, Rocker Cover
(Superseded to MA-30H04-00101)

$

$

Not available

18

Cub Cadet MA-MF100065

Bolt

$

$

Not available

19

Cub Cadet MA-MF100069

Bolt

$

$

Not available

21

Cub Cadet MA-MS470058

Clip

$2.49

$

Usually ships in 3-6 days

0

22

Cover, Rocker

$

$

Not available

23

Label, Model

Note: Not used on this product

$

$

Not available

24

Cub Cadet MA-30H04-02200

Label, Model

$

$

Not available
