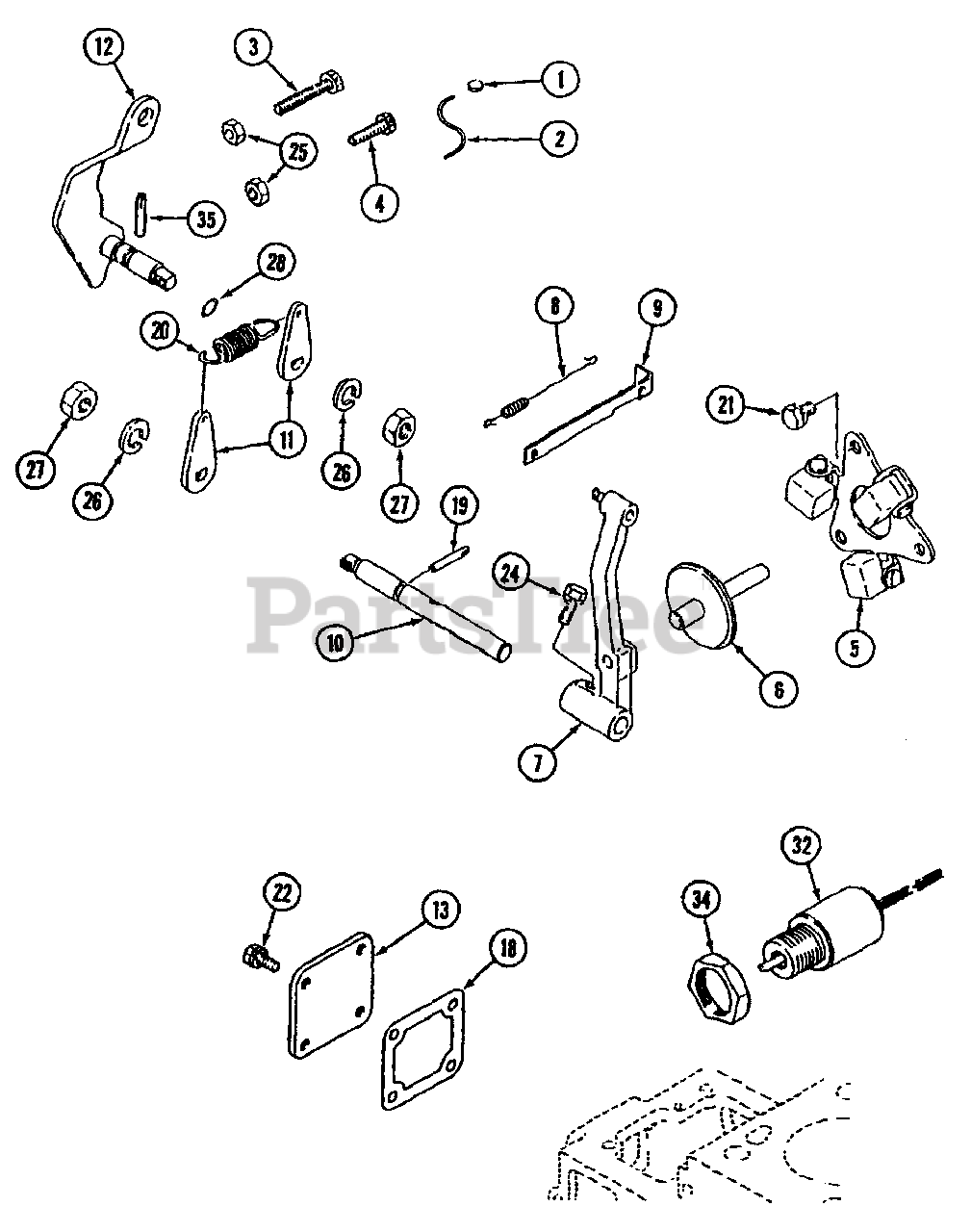

7305 (54A-447D100) - Cub Cadet Compact Tractor Governor Parts 30HP Engine (7300 S/N 21932-Lower/7305 S/N 23069-Lower) Parts Diagram

Compact Tractor

Governor Parts 30HP Engine (7300 S/N 21932-Lower/7305 S/N 23069-Lower) Parts Diagram

  • Title

1

Cub Cadet MA-MK99200001

Metal, Sealing

$

$

Not available

2

Cub Cadet MA-MK99300140

Wire

$

$

Not available

3

Cub Cadet MA-MM401080

Bolt, High Idle Set

$

$

Not available

4

Cub Cadet MA-MM401082

Bolt, Idle Set

$

$

Not available

5

Cub Cadet MA-MM407006

Weight Ass'y., Governor

$

$

Not available

6

Cub Cadet MA-30A63-02200

Shaft Ass'y., Sliding

$

$

Not available

7

Cub Cadet MA-MM407028

Lever Ass'y., Governor

$

$

Not available

8

Cub Cadet MA-MM435575

Spring, Tie Rod

$

$

Not available

9

Cub Cadet MA-MM409181

Rod, Tie
(Superseded to MA-30A63-02600)

$

$

Not available

10

Cub Cadet MA-MM407031

Shaft, Governor

$

$

Not available

11

Cub Cadet MA-MM40703502

Lever, Governor Spring

$

$

Not available

12

Cub Cadet MA-MM432379

Lever, Speed Control

$

$

Not available

13

Cub Cadet MA-MM409150

Cover Ass'y., Tie Rod

$

$

Not available

18

Cub Cadet MA-MM40915101

Gasket, Cover
(Superseded to MA-30A63-00101)

$

$

Not available

19

Cub Cadet MA-K8712630

Pin, Grooved

$

$

Not available

20

Cub Cadet MA-MM409186

Spring, Governor

$

$

Not available

21

Cub Cadet MA-MF241222

Bolt, W/Washer

$

$

Not available

22

Cub Cadet MA-MF241224

Bolt, W/Washer

$

$

Not available

24

Cub Cadet MA-MF244823

Bolt, W/Washer
(Superseded to MA-H1440106016)

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet MA-MF430004

Nut

$

$

Not available

26

Cub Cadet MA-MF450405

Washer, Spring

$

$

Not available

27

Cub Cadet MA-MF430725

Nut, Jam

$

$

Not available

28

Cub Cadet MA-MF520002

O-Ring

$

$

Not available

32

Cub Cadet MA-30A87-00090

Solenoid & Nut Set
(Superseded to MA-30A87-10090)

Note: Includes item 34; Replaces MA-30A87-10400

$327.99

$

Usually ships in 3-6 days

0

34

Cub Cadet MA-MM409671

Nut

$

$

Not available

35

Cub Cadet MA-MM409239

Pin, Grooved

$

$

Not available
