731003 - Ariens Sleeve Hitch Kit

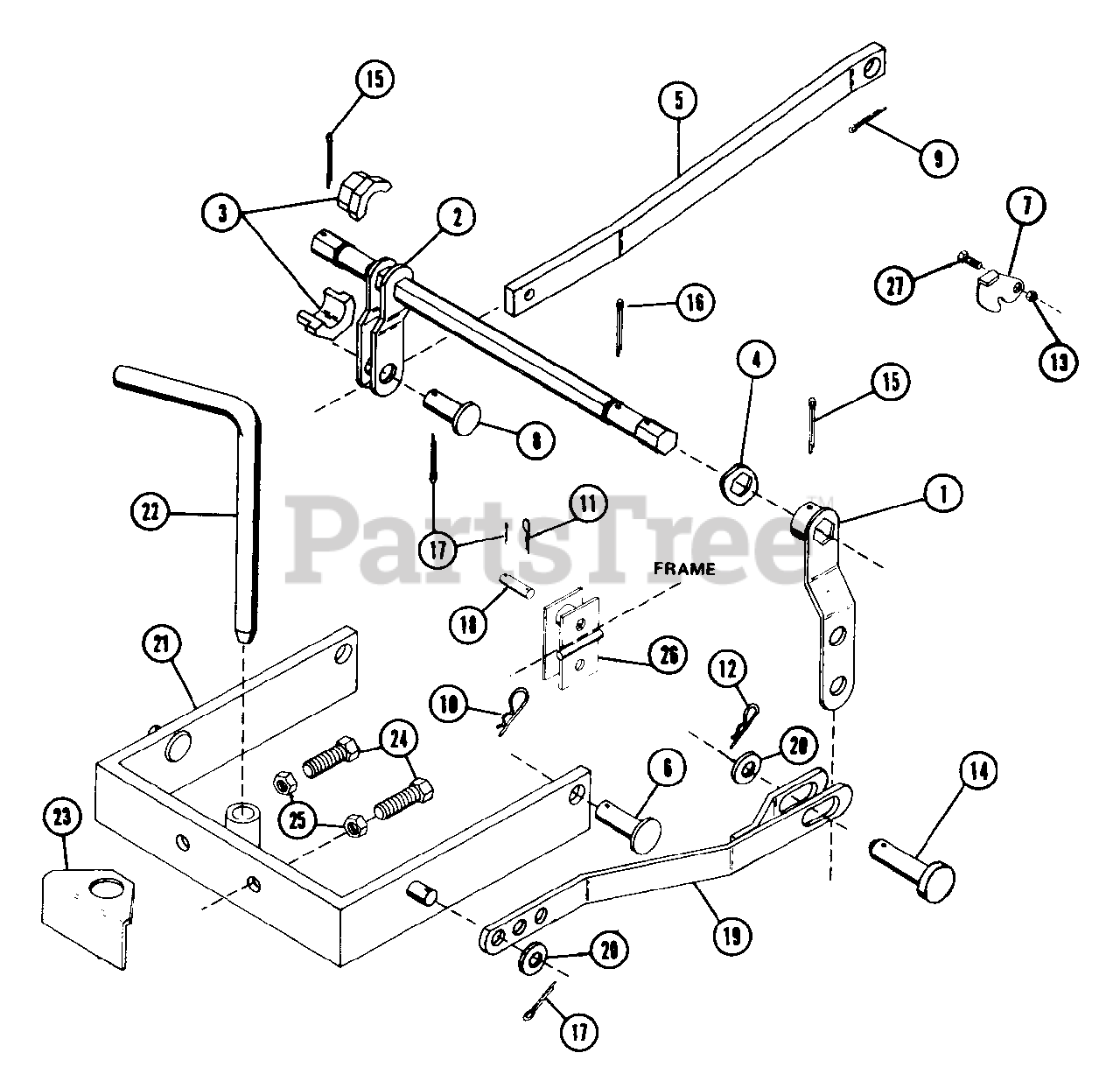

Sleeve Hitch Kit

731003 - Ariens Sleeve Hitch Kit > Parts Diagrams (1) > Sleeve Hitch Kit

  • Title
03153400

1

ARM

Part# 03153400

OEM Warranty Repair Part for Ariens

Not available

03153300

2

SHAFT

Part# 03153300

OEM Warranty Repair Part for Ariens

Not available

05508500

3

BSHG-FLG 1.000X1.750X1.000

Part# 05508500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06411300

4

WSHR-FL-STL 1.031X1.875X.060

Part# 06411300

OEM Warranty Repair Part for Ariens

Not available

03127800

5

LIFT LINK

Part# 03127800

OEM Warranty Repair Part for Ariens

Not available

03128600

6

CLEVIS PIN

Part# 03128600

OEM Warranty Repair Part for Ariens

Not available

03134800

7

LATCH

Part# 03134800

OEM Warranty Repair Part for Ariens

Not available

03153500

8

CLEVIS PIN

Part# 03153500

OEM Warranty Repair Part for Ariens

Not available

06702300

9

PIN-COTR .09X1.87 PL

Part# 06702300

OEM Warranty Repair Part for Ariens

Not available

06701300

10

PIN-HAIR INT .09X.62X2.25

Part# 06701300 (Superseded to 06712900)

OEM Warranty Repair Part for Ariens

Not available

06702200

11

PIN-HAIR INT .14X.4X2.75

Part# 06702200 (Superseded to 06714000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06700800

12

PIN-HAIR INT .09X1.88 PL

Part# 06700800 (Superseded to 06702900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06503900

13

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01331500

14

CLEVIS PIN

Part# 01331500 (Superseded to 06805500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06702500

15

PIN-COTR .18X2.0 ZCC

Part# 06702500 (Superseded to 06713600)

OEM Warranty Repair Part for Ariens

Not available

06701200

16

PIN-COTR .18X1.50 PL

Part# 06701200 (Superseded to 06712800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06700400

17

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03101200

18

PIN

Part# 03101200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

03128100

19

LIFT STRAP

Part# 03128100

OEM Warranty Repair Part for Ariens

Not available

06400300

20

WSHR-FL-STL .531X1.062X.095 PL

Part# 06400300 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03128000

21

HITCH BAIL ASSEMBLY

Part# 03128000 (Superseded to 53105300)

OEM Warranty Repair Part for Ariens

Not available

03128300

22

HITCH PIN

Part# 03128300

OEM Warranty Repair Part for Ariens

Not available

03128200

23

STABILIZER PLATE

Part# 03128200

OEM Warranty Repair Part for Ariens

Not available

05901300

24

BLT-HEX .62-11X2.25 GR2

Part# 05901300

OEM Warranty Repair Part for Ariens

Not available

06500700

25

NUT-HEX .625-11

Part# 06500700 (Superseded to 06535600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03127900

26

ADAPTER HITCH PIVOT

Part# 03127900

OEM Warranty Repair Part for Ariens

Not available

05902300

27

BLT-HEX .38-16X.75 PL GR2

Part# 05902300 (Superseded to 05959400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18
