731010 - Ariens Front PTO Kit Front PTO - 540 RPM Kit Parts Diagram

Front PTO Kit

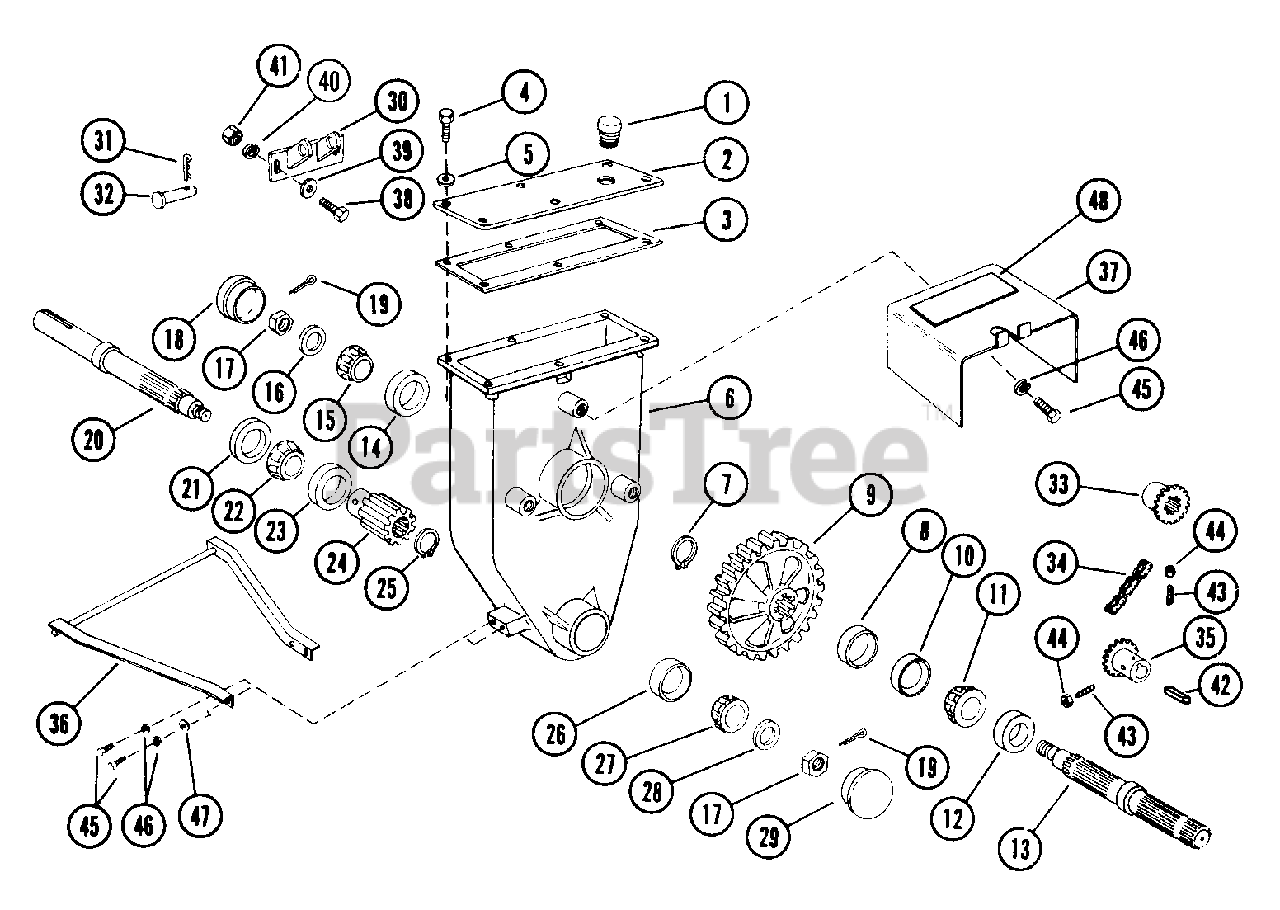

Front PTO - 540 RPM Kit Parts Diagram

  • Title

1

Ariens 03130700

AIR VENT

$

$

Not available

2

Ariens 03133100

COVER

$

$

Not available

3

Ariens 03133000

GASKET

$

$

Not available

4

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

5

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

6

Ariens 03132200

GEAR BOX

$

$

Not available

7

Ariens 05705600

RG-RTNG-EXT 1.375X.050

$

$

Not available

8

Ariens 03132800

SPACER 1.062X1.625X.375

$

$

Not available

9

Ariens 03132900

GEAR

$323.99

$

Usually ships in 4-12 days

0

10

Ariens 05410900

BRG-CUP 2.563X.550

$

$

Not available

11

Ariens 05410800

BRG-CONE 1.38X.72

$

$

Not available

12

Ariens 05607700

SEAL 1.875X.625X.500

$

$

Not available

13

Ariens 63104400

SHAFT ASSEMBLY
(Superseded to 53119900)

$

$

Not available

14

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 13

0

15

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 7

0

16

Ariens 06410900

WSHR-FL-STL .781X1.500X.188
(Superseded to 06439000)

$1.49

$

In Stock, Qty 17

0

17

Ariens 06504900

NUT-JAM-SL .625-18

$

$

Not available

18

Ariens 03108700

DUST CAP

$

$

Not available

19

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

20

Ariens 63104300

SHAFT ASSEMBLY
(Superseded to 53119800)

$

$

Not available

21

Ariens 05607600

SEAL 1.500X2.265X.250

$

$

Not available

22

Ariens 05410600

BRG-CONE 1.0X.81

$

$

Not available

23

Ariens 05410700

BRG-CUP 2.441X.562

$

$

Not available

24

Ariens 03132500

PINION GEAR

$

$

Not available

25

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 3 left!

0

26

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

27

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

28

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.49

$

In Stock, Qty 17

0

29

Ariens 03134700

CAP

$

$

Not available

30

Ariens 03131600

PLATE

$

$

Not available

31

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 03100800

PIN-CLEV .619X2.0 YWZC

$

$

Not available

33

Ariens 03131900

HUB

$

$

Not available

34

Ariens 03132100

ROLLER CHAIN

$

$

Not available

35

Ariens 03132000

SPROCKET

$

$

Not available

36

Ariens 03131800

BRACE

$

$

Not available

37

Ariens 03131700

SHIELD

$

$

Not available

38

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 2 left!

0

40

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

41

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

42

Ariens 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$5.99

$

In Stock, Qty 7

0

43

Ariens 06002800

SCR-SET .32-18X.75 SQHCUP PL

$

$

Not available

44

Ariens 06506100

NUT-JAM .312-18 PL
(Superseded to 06536100)

$0.99

$

In Stock, only 3 left!

0

45

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

46

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

47

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

48

Ariens 07827100

DECAL CAUTION
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0
