731011 - Ariens 3 Point Hitch Three Point Hitch Parts Diagram

3 Point Hitch

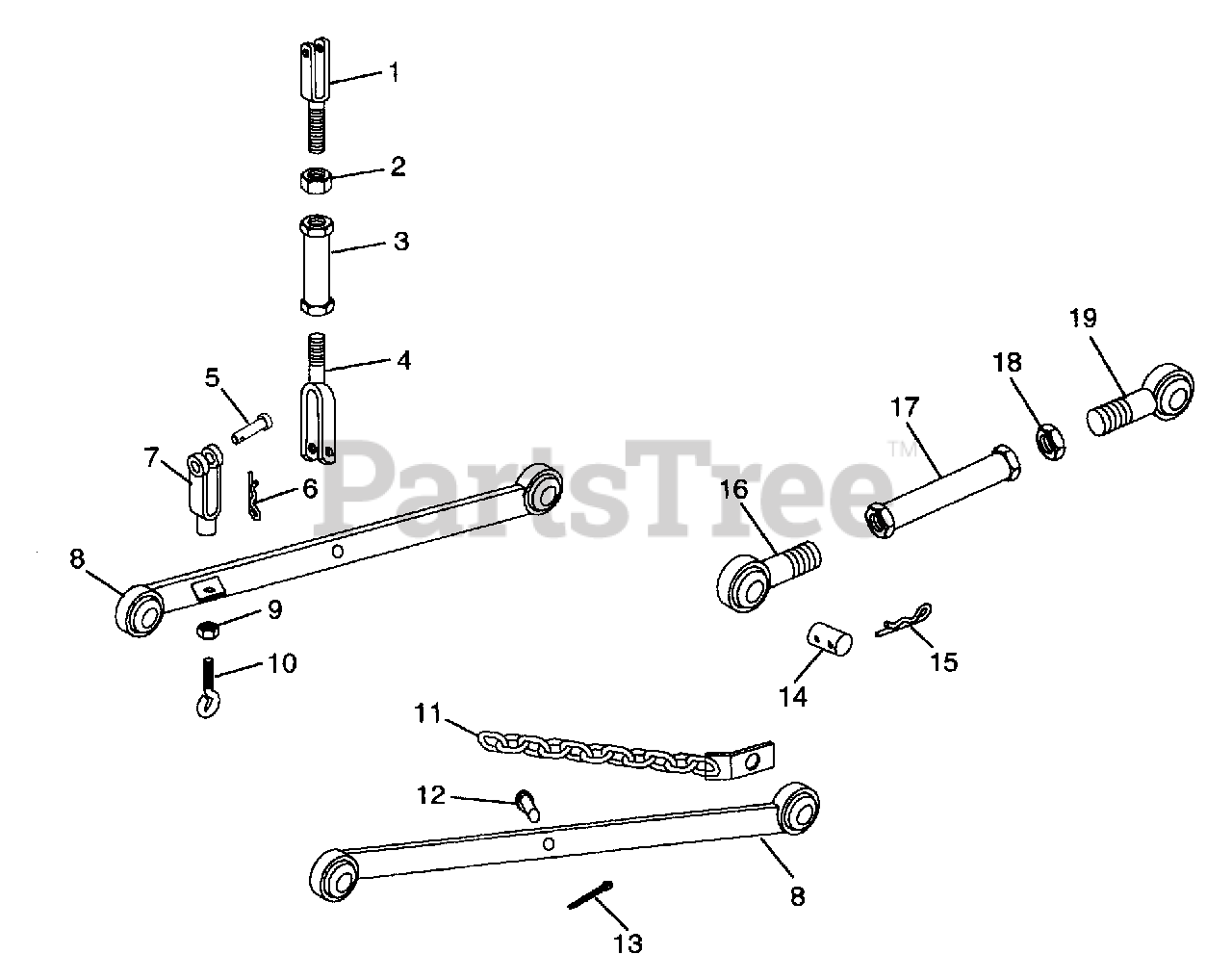

Three Point Hitch Parts Diagram

  • Title

1

Ariens 03129600

CLEVIS R.H.

$52.99

$

Usually ships in 4-12 days

0

2

Ariens 06500200

NUT-JAM .625-11

$

$

Not available

3

Ariens 03129700

TURNBUCKLE

$26.99

$

Usually ships in 4-12 days

0

4

Ariens 03129500

CLEVIS L.H.

$52.99

$

Usually ships in 4-12 days

0

5

Ariens 03130200

CLEVIS PIN
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 03129200

YOKE, .312-24 X 2.25 ZN PL
(Superseded to 00513800)

$30.99

$

Usually ships in 4-12 days

0

8

Ariens 03130100

LOWER ARM

$125.99

$

Usually ships in 4-12 days

0

9

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 03129300

EYE-BOLT

$37.99

$

Usually ships in 4-12 days

0

11

Ariens 03129400

SWAY CHAIN

$40.99

$

Usually ships in 4-12 days

0

12

Ariens 06805500

PIN-CLEV .50X1.25 RH ST PL

$

$

Not available

13

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 10

0

14

Ariens 03101200

PIN

$23.99

$

Usually ships in 4-12 days

0

15

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$3.49

$

In Stock, Qty 6

0

16

Ariens 03130000

BALL JOINT L.H.

$87.99

$

Usually ships in 4-12 days

0

17

Ariens 03129900

TURNBUCKLE

$21.99

$

Usually ships in 4-12 days

0

18

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

19

Ariens 03129800

BALL JOINT R.H.

$70.99

$

Usually ships in 4-12 days

0
