731014 - Ariens Rear PTO Kit Rear PTO Kit Parts Diagram

Rear PTO Kit

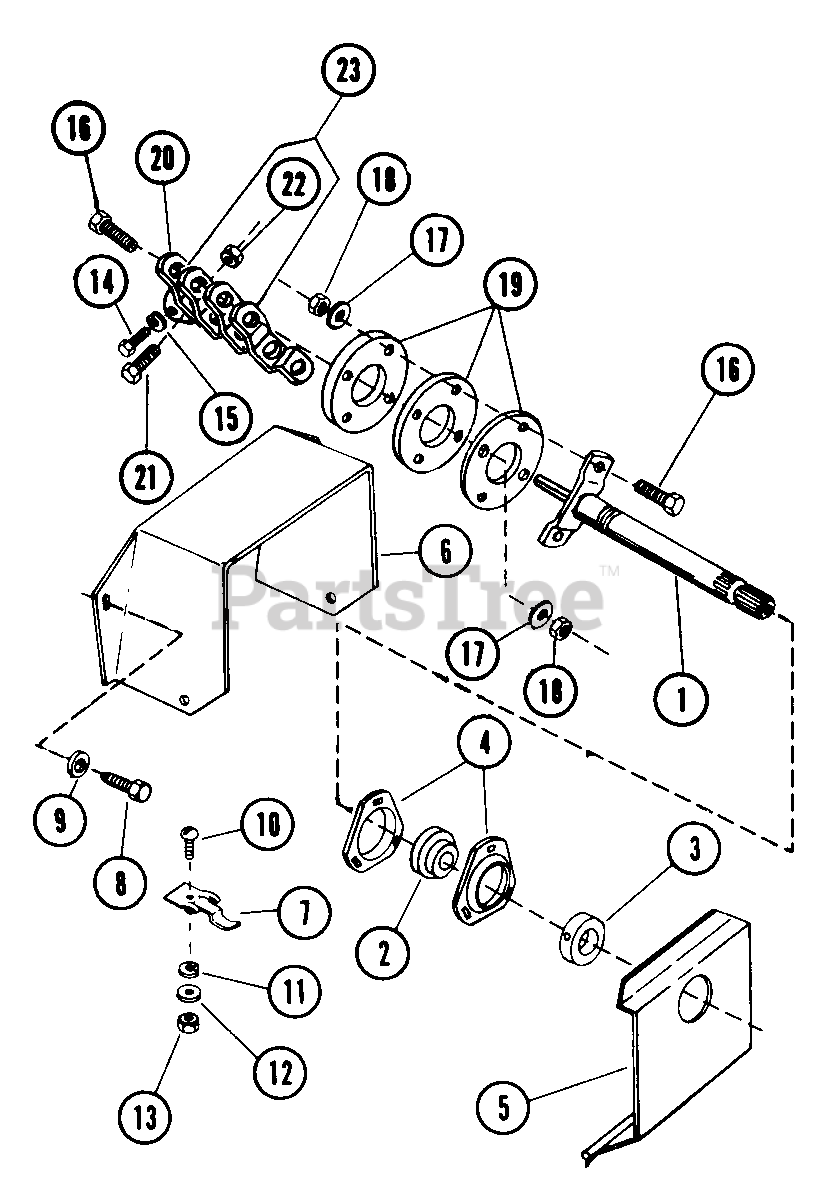

Rear PTO Kit Parts Diagram

  • Title
1

Ariens 63107400

REAR PTO SHAFT ASSEMBLY
(Superseded to 53120500)

$213.59

$

Usually ships in 5-11 days

0

2

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$39.07

$

Usually ships in 4-12 days

0

3

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$39.07

$

Usually ships in 4-12 days

0

4

Ariens 03102000

BEARING FLANGE

$18.95

$

Usually ships in 4-12 days

0

5

Ariens 03153000

REAR PTO COVER
(Superseded to 03016300)

$50.25

$

Usually ships in 5-11 days

0

6

Ariens 03157100

PTO SHIELD

$

$

Not available

7

Ariens 03130500

SNAP FASTENER

$

$

Not available

8

Ariens 07404100

SCR-TAP (NO DRWG)
(Superseded to 07047100)

$2.80

$

In Stock, Qty 6

0

9

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

10

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

11

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$1.68

$

Usually ships in 4-12 days

0

12

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$

$

Not available

13

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

14

Ariens 05909300

SCR-SKH .25-20X.75 PL

$

$

Not available

15

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$1.96

$

In Stock, only 4 left!

0

16

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.24

$

In Stock, only 1 left!

0

17

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$2.52

$

In Stock, Qty 20+

0

18

Ariens 06510100

NUT-LK .312-18 PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

19

Ariens 03107500

SPACER COUPLING
(Superseded to 53124800)

$72.50

$

In Stock, only 1 left!

0

$

$

Not available

21

Ariens 05917400

BLT-HEX .25-20X2.00 GR5
(Superseded to 05967100)

$2.18

$

In Stock, only 3 left!

0

22

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$

$

Not available

23

Ariens 03170700

ADJUSTING PLATE

$

$

Not available
