731016 - Ariens Sleeve Hitch Kit Sleeve Hitch Kit Parts Diagram

Sleeve Hitch Kit

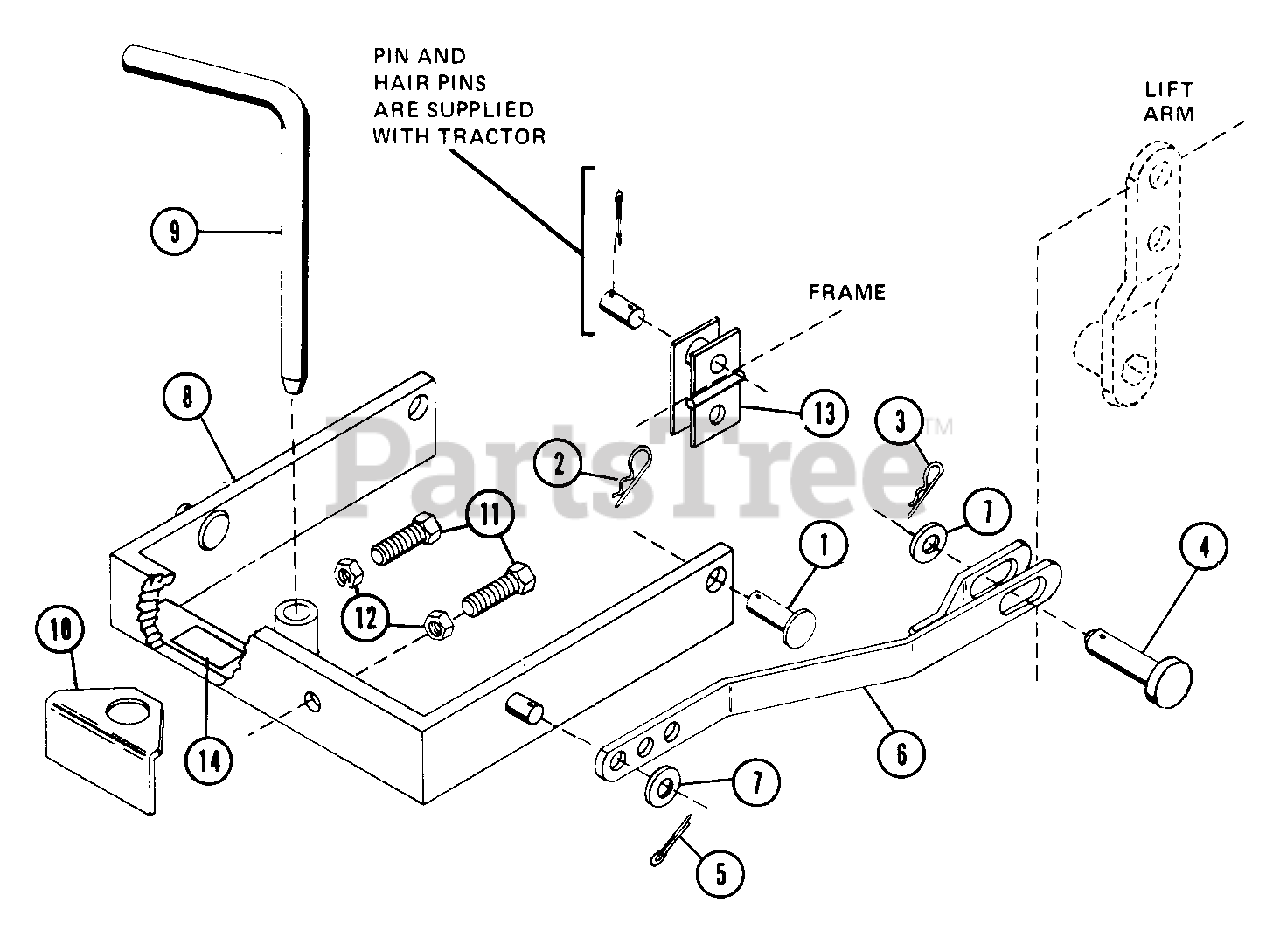

Sleeve Hitch Kit Parts Diagram

  • Title

1

Ariens 03128600

CLEVIS PIN

$

$

Not available

2

Ariens 06701300

PIN-HAIR INT .09X.62X2.25
(Superseded to 06712900)

$5.99

$

In Stock, only 4 left!

0

3

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 01331500

CLEVIS PIN
(Superseded to 06805500)

$

$

Not available

5

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

6

Ariens 03128100

LIFT STRAP

$

$

Not available

7

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 53105300

BAIL ASSEMBLY

$

$

Not available

9

Ariens 03128300

HITCH PIN

$

$

Not available

10

Ariens 03128200

STABILIZER PLATE

$

$

Not available

11

Ariens 05901300

BLT-HEX .62-11X2.25 GR2

$

$

Not available

12

Ariens 06500700

NUT-HEX .625-11
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 03127900

ADAPTER HITCH PIVOT

$

$

Not available

14

Ariens 07828100

DECAL - CAUTION
(Superseded to 07799500)

$

$

Not available
