731018 - Ariens Rear PTO Kit, GT Rear PTO Kit Parts Diagram

Rear PTO Kit, GT

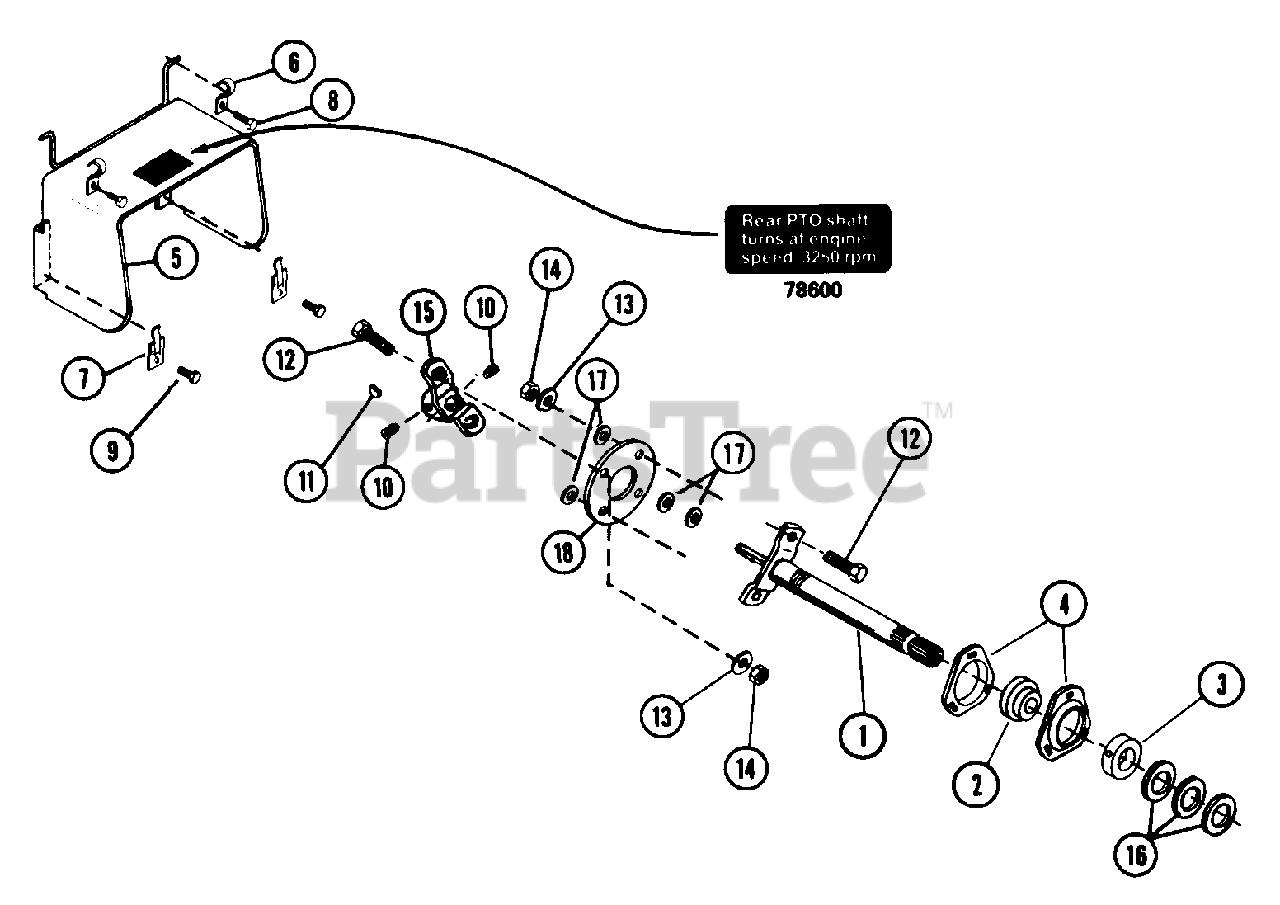

Rear PTO Kit Parts Diagram

  • Title

1

Ariens 63107400

REAR PTO SHAFT ASSEMBLY
(Superseded to 53120500)

$

$

Not available

2

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$50.99

$

Usually ships in 4-12 days

0

3

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$50.99

$

Usually ships in 4-12 days

0

4

Ariens 03102000

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

5

Ariens 03016300

PTO SHIELD

$

$

Not available

6

Ariens 03016400

CLIP

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 03130500

SNAP FASTENER

$

$

Not available

8

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

11

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, only 4 left!

0

12

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.99

$

In Stock, Qty 6

0

13

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 03174900

COUPLING

$

$

Not available

16

Ariens 03002900

SPACER-SPECIAL CONICAL

$13.99

$

In Stock, only 3 left!

0

17

Ariens 02506200

SPACER .380X.750X.236

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 03195200

SPACER COUPLING

$

$

Not available
