731047 - Ariens 60" Boot Kit Boot Kit 60" Parts Diagram

60" Boot Kit

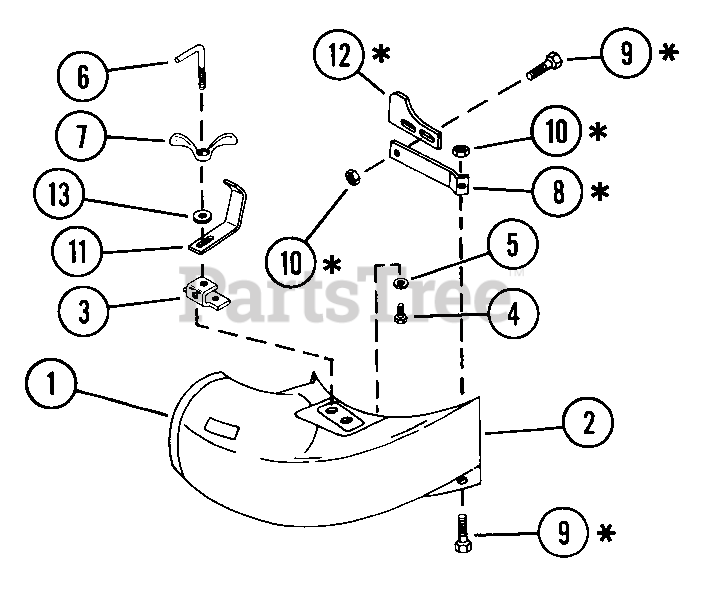

Boot Kit 60" Parts Diagram

  • Title

1

Ariens 03073700

BOOT

$

$

Not available

2

Ariens 03037000

COLLECTOR BOOT
(Superseded to 03073700)

$

$

Not available

3

Ariens 03024900

COLLECTOR BOOT CLAMP

$

$

Not available

4

Ariens 05910400

BLT-HEX .25-20X.38 PL GR2
(Superseded to 05947600)

$1.99

$

Usually ships in 4-12 days

0

5

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 03025000

ADJUSTOR

$

$

Not available

7

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

8

Ariens 03038200

BRACKET - STOP

Note: (Used Only On Model(s): 831026,731047).

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (Used Only On Model(s): 831026,731047).

$1.99

$

In Stock, only 1 left!

0

10

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 831026,731047).

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03038800

DEFLECTOR STOP
(Superseded to 03073600)

$

$

Not available

12

Ariens 03038900

PLATE

Note: (Used Only On Model(s): 831026,731047).

$

$

Not available

13

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0
