731055 - Gravely 48" Dethatcher Attachment Dethatcher Parts Diagram

48" Dethatcher Attachment

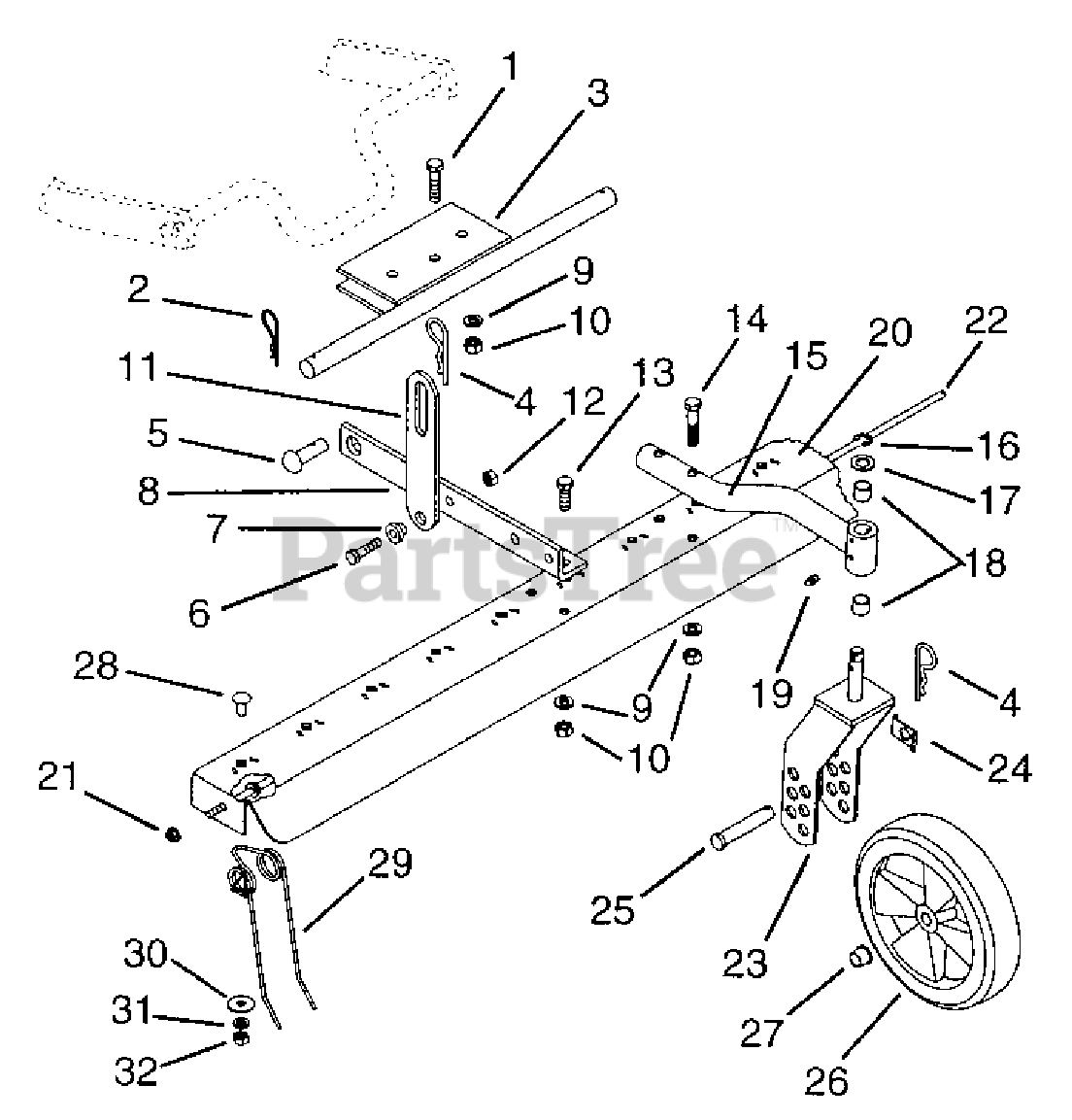

Dethatcher Parts Diagram

  • Title

1

Gravely 05957900

Bolt-Hex .38-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

2

Gravely 06712900

Pin-Hair Internal .09 x .188
(Superseded to 06700215)

$5.99

$

In Stock, only 2 left!

0

3

Gravely 03061551

Bracket-Weldment

$

$

Not available

4

Gravely 06714000

Pin-Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 9

0

5

Gravely 06805500

Clevis Pin .50 x 1.25

$

$

Not available

6

Gravely 05947500

Bolt-Hex .31-18 x 1.25
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 05514400

Bushing-Flange .344 x .468 x .485 x .750

$19.99

$

Usually ships in 4-12 days

0

8

Gravely 03072151

Angle Bracket

$

$

Not available

9

Gravely 06308800

Washer-Lock .38-16
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

10

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 7

0

11

Gravely 03187751

Limiting Arm

$

$

Not available

12

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 14

0

13

Gravely 05948700

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05958500

Bolt-Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

15

Gravely 03051551

Wheel Bracket Weldment

$

$

Not available

16

Gravely 05705900

Ring-Retaining-External .438 x .035

$0.99

$

In Stock, only 4 left!

0

17

Gravely 06441900

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05515900

Bushing-Sleeve .500 x .625 x .500

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

20

Gravely 03071651

Channel

$

$

Not available

21

Gravely 06529700

Nut-Locking-Ctr .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03062400

Rod

$

$

Not available

23

Gravely 01167851

Wheel Yoke Weldment
(Superseded to 01167859)

$136.99

$

Usually ships in 4-12 days

0

24

Gravely 01168100

Axle-Tab

$16.99

$

In Stock, Qty 6

0

25

Gravely 01168300

Clevis-Pin

$9.49

$

Usually ships in 4-12 days

0

26

Gravely 07149900

Wheel .5 Bore-1.5 Hub

$25.99

$

In Stock, Qty 9

0

27

Gravely 05502100

Bushing-Flange .500 x .625 x .500 x .750

$3.99

$

In Stock, Qty 7

0

28

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

29

Gravely 01136100

Tine Staring

$22.99

$

In Stock, only 1 left!

0

30

Gravely 06437500

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

31

Gravely 06308600

Washer-Lock .312 x .097
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 14

0

Gravely 73105500

Dethatcher

Note: For use on: Grand Sierra & GT 600 Series Tractors

$

$

Not available
