732 - BCS America Two-Wheeled Tractor Differential (SN: 864708 & Above) Parts Diagram

Two-Wheeled Tractor

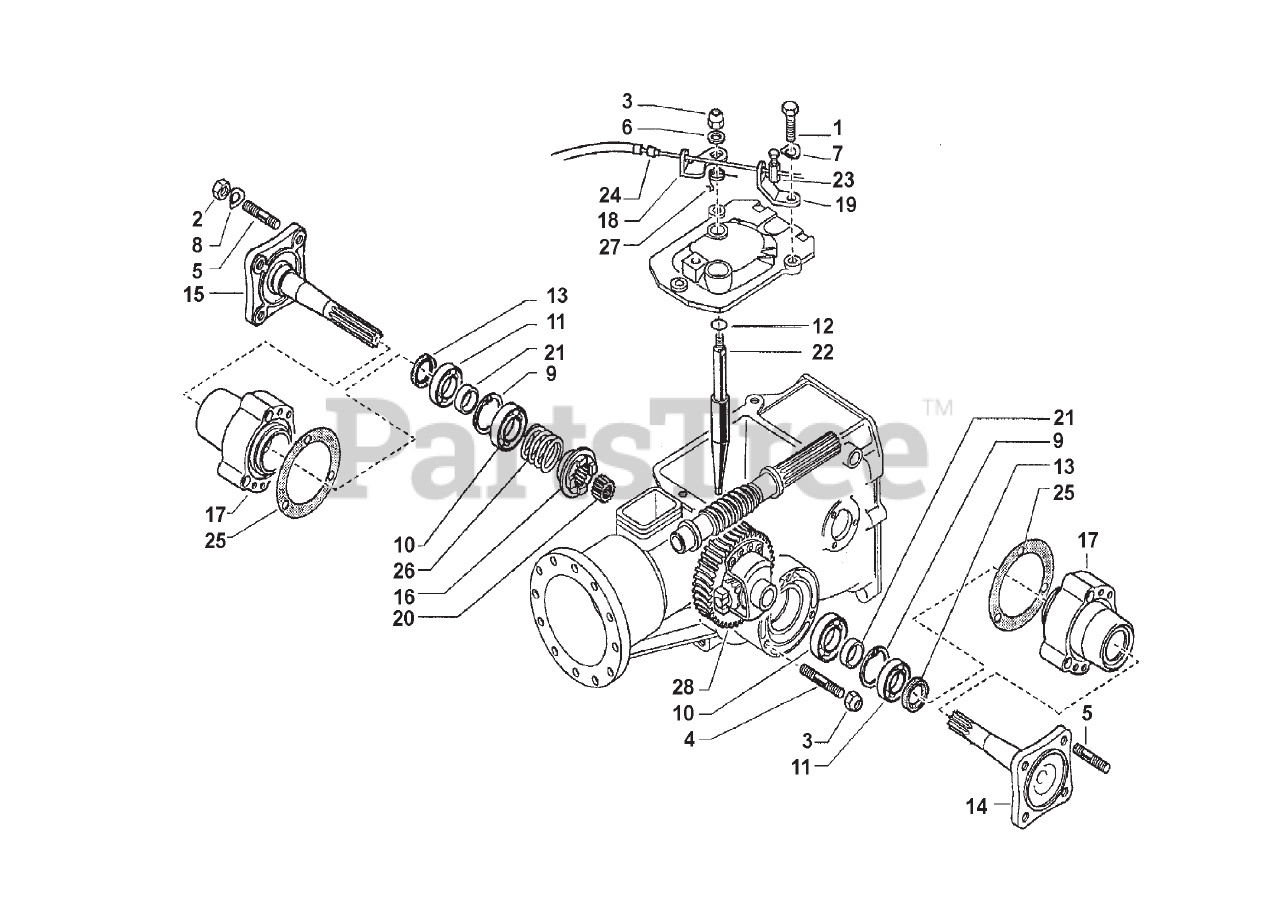

Differential (SN: 864708 & Above) Parts Diagram

  • Title

1

BCS America 311.12150

BOLT M8X30

Note:

$1.49

$

In Stock, only 2 left!

0

2

BCS America 312.11100

NUT M10

Note:

$1.49

$

In Stock, only 2 left!

0

3

BCS America 312.41080

SELF LOCKING NUT M8

Note:

$0.99

$

In Stock, Qty 10

0

4

BCS America 313.12080

STUD M8X46

Note:

$1.99

$

In Stock, only 1 left!

0

5

BCS America 313.12102

STUD M10X40

Note:

$2.49

$

In Stock, only 2 left!

0

6

BCS America 314.11084

FLAT WASHER

Note:

$0.99

$

In Stock, only 4 left!

0

7

BCS America 314.23084

LOCK WASHER

Note:

$0.99

$

In Stock, Qty 11

0

8

BCS America 314.23105

WASHER

Note:

$1.49

$

In Stock, only 3 left!

0

9

BCS America 351.11047

INTERNAL SNAP RING D 47

Note:

$1.99

$

In Stock, only 3 left!

0

10

BCS America 371.11250

BEARING 25X52X15

Note:

$

$

Not available

11

BCS America 371.11253

BEARING 25X47X12

Note:

$15.99

$

Usually ships in 5-8 days

0

12

BCS America 381.11400

O-RING

Note:

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 382.13002

SEAL M30X40X7

Note:

$7.99

$

Usually ships in 5-8 days

0

14

BCS America 524.48187

HALF AXLE LH

Note:

$275.99

$

Usually ships in 5-8 days

0

15

BCS America 524.48188

HALF AXLE RH

Note:

$304.99

$

Usually ships in 5-8 days

0

16

BCS America 524.48196

COUPLING

Note:

$

$

Currently unavailable

17

BCS America 532.43851

HUB FOR HALF AXLE

Note:

$121.99

$

Usually ships in 5-8 days

0

18

BCS America 561.43880

RELEASE LEVER

Note:

$18.99

$

Usually ships in 5-8 days

0

19

BCS America 561.43883

CABLE BRACKET DIFFERENTIAL

Note:

$14.99

$

Usually ships in 5-8 days

0

20

BCS America 564.48183

DIFFERENTIAL SPACER

Note:

$66.99

$

Usually ships in 5-8 days

0

21

BCS America 561.48184

RING

Note:

$15.99

$

Usually ships in 5-8 days

0

22

BCS America 564.43871

ROD

Note:

$111.99

$

Usually ships in 5-8 days

0

23

BCS America 580.02429

CABLE CLAMP

Note:

$5.99

$

Usually ships in 5-8 days

0

24

BCS America 580.42167

SHEATH ENDS

Note:

$2.99

$

Usually ships in 5-8 days

0

25

BCS America 580.43855

GASKET

Note:

$6.49

$

Usually ships in 5-8 days

0

26

BCS America 580.43874

SPRING

Note:

$3.99

$

Usually ships in 5-8 days

0

27

BCS America 580.43881

SPRING

Note:

$7.99

$

Usually ships in 5-8 days

0

28

BCS America 590.48199

DIFFERENTIAL COMPLETE

Note:

$1106.99

$

Usually ships in 5-8 days

0
