732032 - Ariens Chute Crank Kit Chute Crank Kit Parts Diagram

Chute Crank Kit

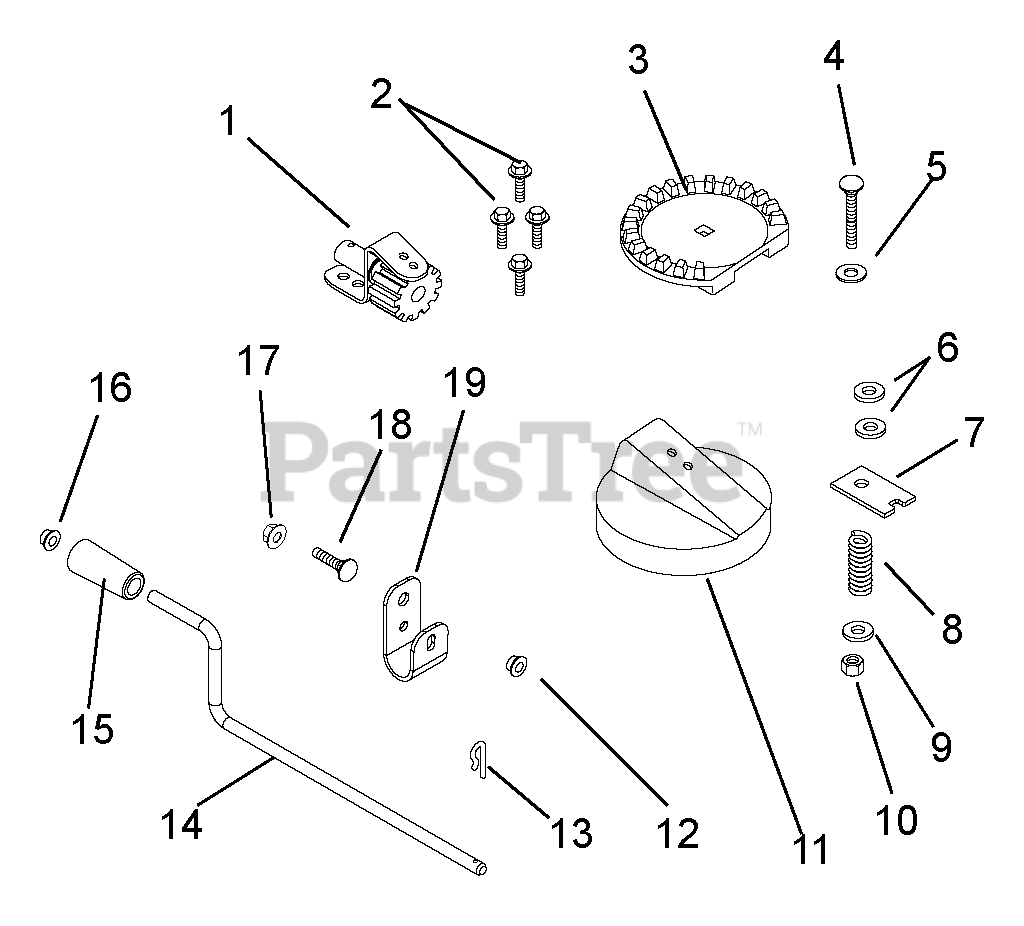

Chute Crank Kit Parts Diagram

  • Title

1

Ariens 53214700

BRACKET W/PINION GEAR

$63.99

$

Usually ships in 4-12 days

0

2

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 7

0

4

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

5

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 12

0

6

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, only 3 left!

0

7

Ariens 00398000

PLATE, FRICTION

$7.49

$

Usually ships in 4-12 days

0

8

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03223000

GEAR COVER

$12.99

$

In Stock, only 1 left!

0

12

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

Note: Ships assembled to item 19.

$2.99

$

In Stock, only 2 left!

0

13

Ariens 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

14

Ariens 00423400

ROD, CHUTE CRANK

$30.99

$

Usually ships in 4-12 days

0

15

Ariens 07500001

KNOB, CHUTE CRANK

Note: Ships assembled to item 14.

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: Ships assembled to item 14.

$2.99

$

In Stock, Qty 7

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

19

Ariens 00398551

BRACKET, CRANK SUPPORT

$38.99

$

Usually ships in 4-12 days

0
