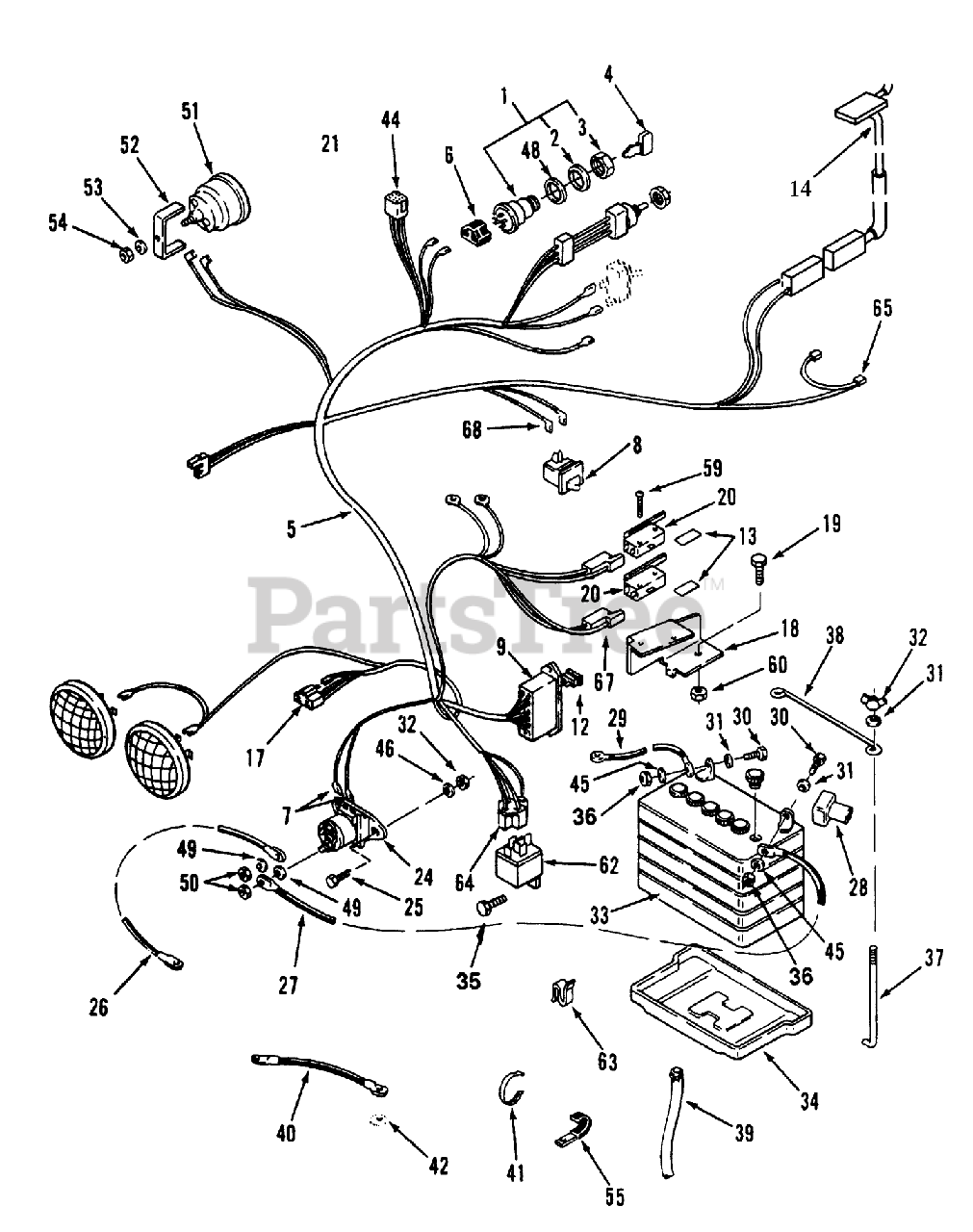

73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) Electrical System 2 Parts Diagram

Garden Tractor

Electrical System 2 Parts Diagram

  • Title

1

Toro 116338

KEY SWITCH ASM

$84.99

$

In Stock, only 2 left!

0

2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

3

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

4

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 14

0

5

Toro 79-3580

DISCONTINUED

$

$

Not available

6

Toro 104926

CONNECTOR BODY ELECT

$4.99

$

In Stock, only 1 left!

0

7

Toro 518105

TERMINAL 10

$9.49

$

Usually ships in 3-6 days

0

8

Toro 103480

DISCONTINUED

$

$

Not available

9

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 4 left!

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, only 1 left!

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 38-1420

SWITCH-SEAT

$

$

Not available

17

Toro 112185

5-CONTACT CONN BODY

$9.99

$

Usually ships in 3-6 days

0

18

Toro 115411

DISCONTINUED

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

20

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

24

Toro 47-1910

See Supercession: 740207
(Superseded to 740207)

$36.99

$

In Stock, only 1 left!

0

25

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 6

0

26

Toro 111069

DISCONTINUED

$

$

Not available

27

Toro 111074

CABLE-BLACK

$28.99

$

Usually ships in 3-6 days

0

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

29

Toro 111069

DISCONTINUED

$

$

Not available

30

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

32

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

33

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

34

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

35

Toro 910794

BOLT

$

$

Not available

36

Toro 32146-7

NUT-LOCK, INSERT
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

37

Toro 113969

HOOK-BATTERY RETAIN

$103.99

$

In Stock, only 2 left!

0

38

Toro 113010

HOLDDOWN-BATTERY

$28.99

$

In Stock, only 3 left!

0

39

Toro 114720

TUBE-21" BATTERY DRAIN

$8.49

$

Usually ships in 3-6 days

0

40

Toro 109910

WIRE GROUND

$6.49

$

Usually ships in 3-6 days

0

41

Toro 100571

DISCONTINUED

$

$

Not available

42

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

44

Toro 102651

DUP PART SEE $BOOK

$

$

Not available

45

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$9.49

$

Usually ships in 3-6 days

0

49

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

50

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

51

Toro 78-0020

See Supercession: 66-2950
(Superseded to 66-2950)

$

$

Not available

52

Toro 78-3320

CLAMP-HOUR METER

$12.99

$

Usually ships in 3-6 days

0

53

Toro 920078

DISCONTINUED

$

$

Not available

54

Toro 915564

See Supercession: 3217-27
(Superseded to 3217-27)

$0.99

$

Usually ships in 3-6 days

0

55

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

59

Toro 910478

See Supercession: 9104784
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

60

Toro 915732

See Supercession: 9157324
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

62

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

63

Toro 519337

CLIP-CABLE

$

$

Not available

64

Toro 518105

TERMINAL 10

$9.49

$

Usually ships in 3-6 days

0

65

Toro 6921

Sur-Plug

$

$

Currently unavailable

68

Toro 518077

Terminal

$

$

Currently unavailable
