73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) Fuel System Parts Diagram

Garden Tractor

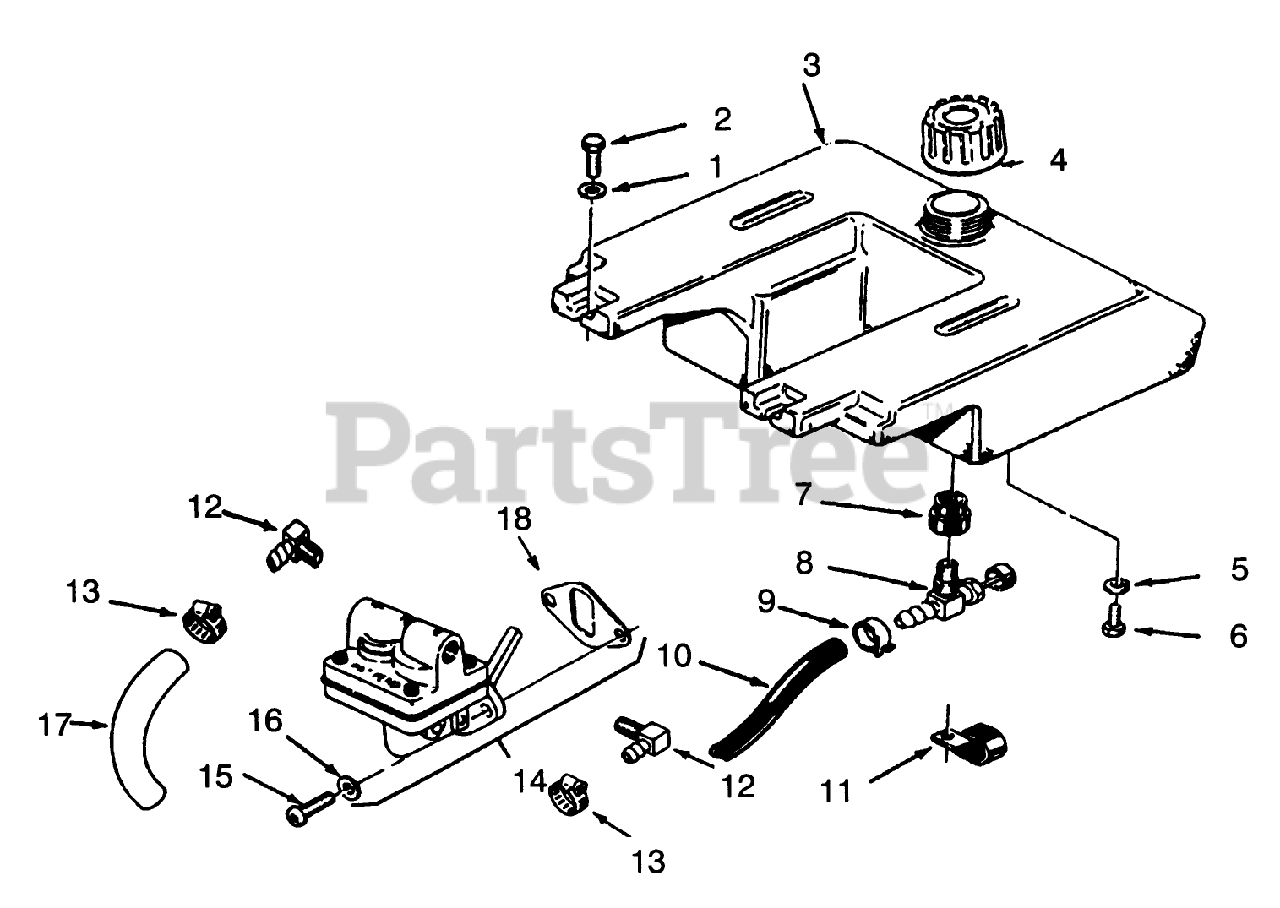

Fuel System Parts Diagram

  • Title

1

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

2

Toro 926697

See Supercession: 130-9795
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 106234

TANK-FUEL

$497.99

$

Usually ships in 3-6 days

0

4

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

7

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

8

Toro 104048

VALVE-FUEL

$40.99

$

In Stock, only 1 left!

0

9

Toro 108898

DISCONTINUED
(Superseded to 950154)

$

$

Not available

10

Toro 110894

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

11

Toro 950154

DISCONTINUED

$

$

Not available

Toro 105490

CLAMP

Note: Not illustrated

$

$

Not available

12

Toro KH10123

KOHLER 25-155-02

$

$

Not available

13

Toro KH10586

KOHLER X-426-9

$

$

Not available

14

Toro KH10319

KOHLER 47-559-08

$

$

Not available

15

Toro KH10552

KOHLER X-174-2

$

$

Not available

16

Toro KH10569

KOHLER X-25-63

$

$

Not available

17

Toro KH10130

KOHLER 25-353-01

$

$

Not available

18

Toro KH10095

KOHLER 25-041-05

$

$

Not available
