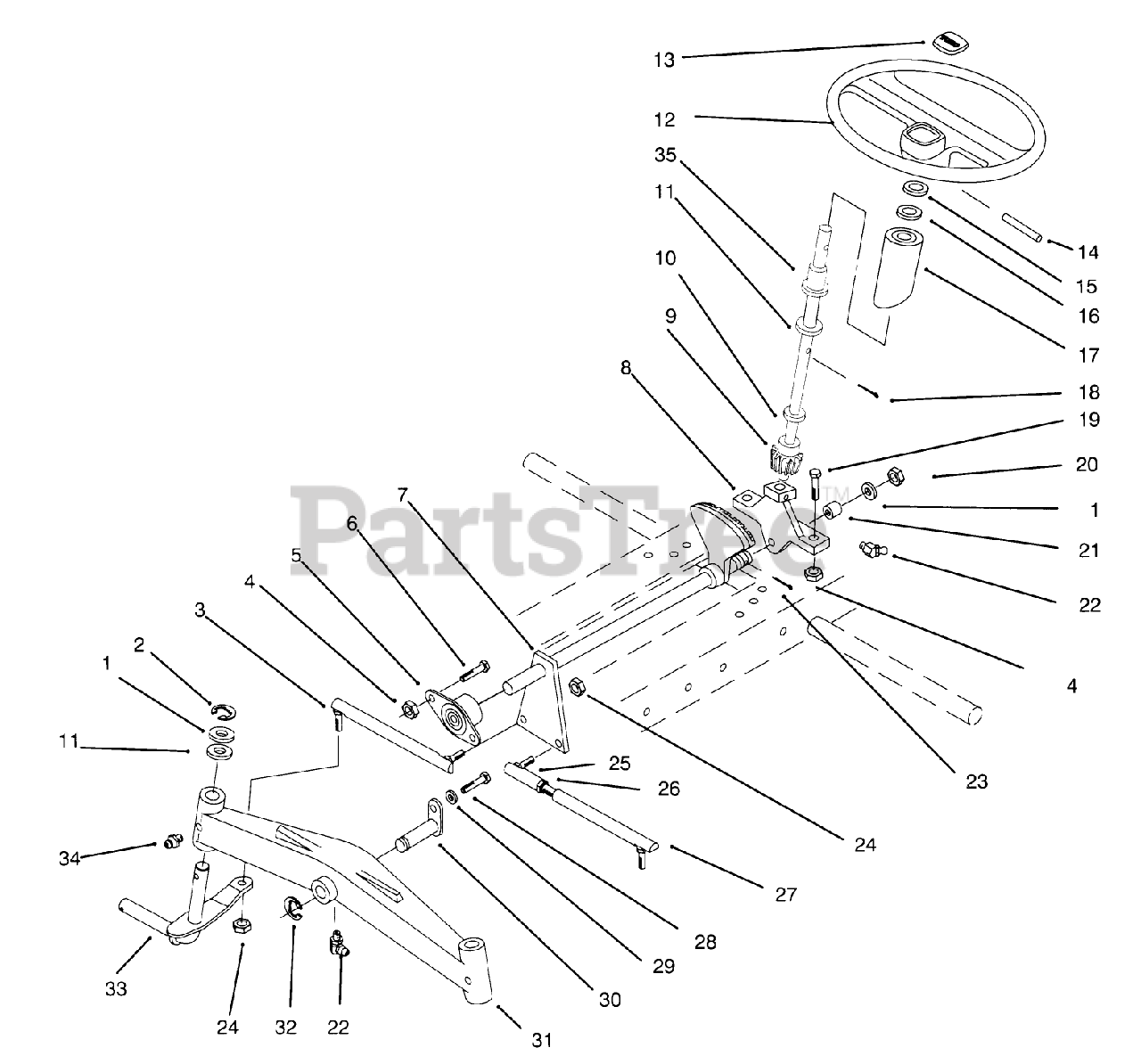

73362 (312-8) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) Front Axle And Steering Parts Diagram

Garden Tractor

Front Axle And Steering Parts Diagram

  • Title

1

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

2

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

3

Toro 102592

See Supercession: 78-2900
(Superseded to 78-2900)

$74.99

$

In Stock, only 2 left!

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 6472

BEARING-FLANGED

$27.99

$

In Stock, only 2 left!

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 78-2880

See Supercession: 78-2880-03
(Superseded to 78-2880-03)

$278.99

$

Usually ships in 3-6 days

0

8

Toro 88-2710

See Supercession: 88-2710-03
(Superseded to 88-2710-03)

$

$

Not available

9

Toro 92-4987

STEERING SHAFT ASM

$

$

Not available

10

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

11

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

12

Toro 78-3100

STR'G-WHL 13" TORO

$

$

Not available

13

Toro 78-0370

DISCONTINUED

$

$

Not available

14

Toro 32121-111

PIN-ROLL

$3.49

$

In Stock, Qty 20+

0

15

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 3 left!

0

16

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

17

Toro 113443

TUBE-STEERING

$

$

Not available

18

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 32136-5

NUT-HEX, SLOTTED

$8.99

$

In Stock, only 2 left!

0

21

Toro 6397

BEARING-BRONZE

$27.99

$

In Stock, only 3 left!

0

22

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 1 left!

0

23

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

25

Toro 78-2920

See Supercession: 94-7572
(Superseded to 94-7572)

$36.99

$

In Stock, only 2 left!

0

26

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

0

27

Toro 78-2900

ASS'Y-TIE ROD*

$74.99

$

In Stock, only 2 left!

0

28

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

30

Toro 6216

PIN AND PLATE ASM

$54.99

$

Usually ships in 3-6 days

0

31

Toro 5638

See Supercession: 5638-01
(Superseded to 5638-01)

$

$

Not available

32

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

33

Toro 113380

See Supercession: 113380-01
(Superseded to 113380-01)

$80.99

$

In Stock, only 2 left!

0

Toro 113379

See Supercession: 113379-01
(Superseded to 113379-01)

Note: Not illustrated

$80.99

$

In Stock, only 2 left!

0

34

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

35

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 16

0
